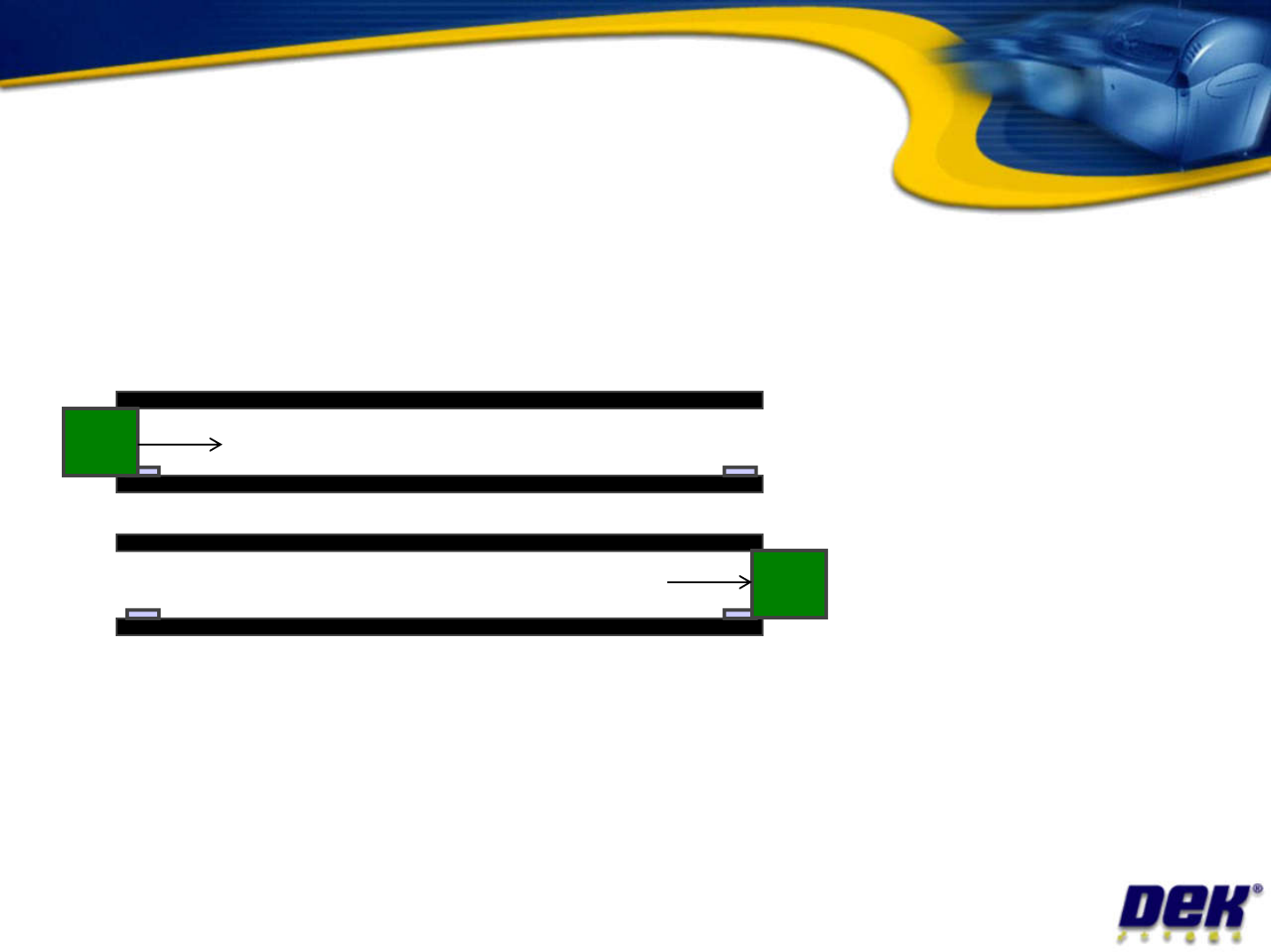

Board Recei ved by Machine = Cy cle T ime starts Cycle T ime Data cycle time L-R or R -L Issue 2: July 2007 = Cy cle T ime starts Board Exits Machi ne = Cy cle T ime stops
Fid 2
Fid 1
Fid 2 ‘x’ Error
Fid 1 ‘x’ Error

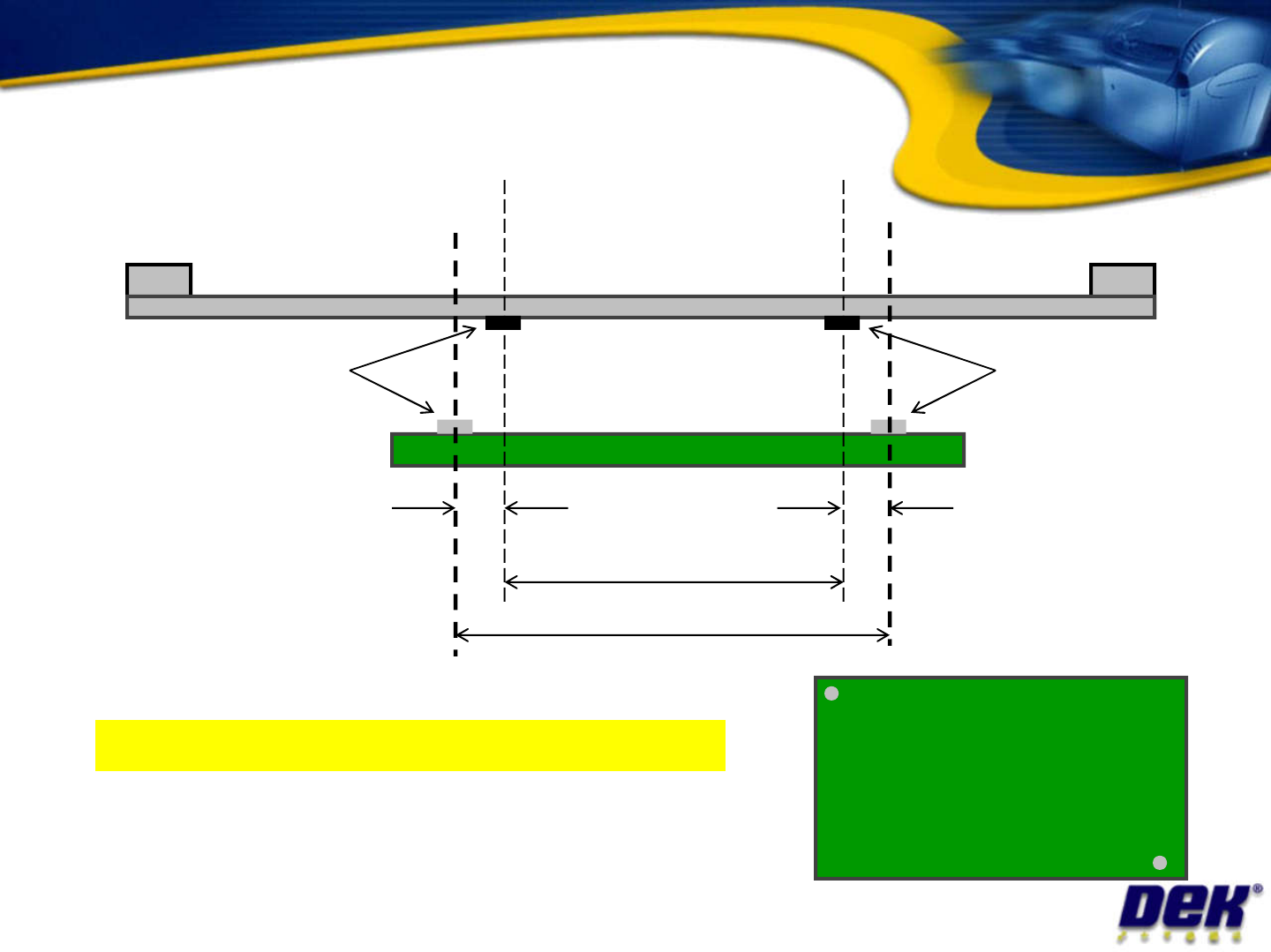

Board stretch
Issue 2: July 2007
Stencil (mm) - Board (mm) = Board Stretch
Stencil (mm)
Board (mm)
Fid 2 ‘x’ Error
(Pre or Post)
Fid 1 ‘x’ Error
(Pre or Post)
Fid 2
Fid 1
Board Received by
Machine
= Cycle Time starts
Cycle Time
Data cycle time L-R or R-L
Issue 2: July 2007
= Cycle Time starts
Board Exits Machine
= Cycle Time stops

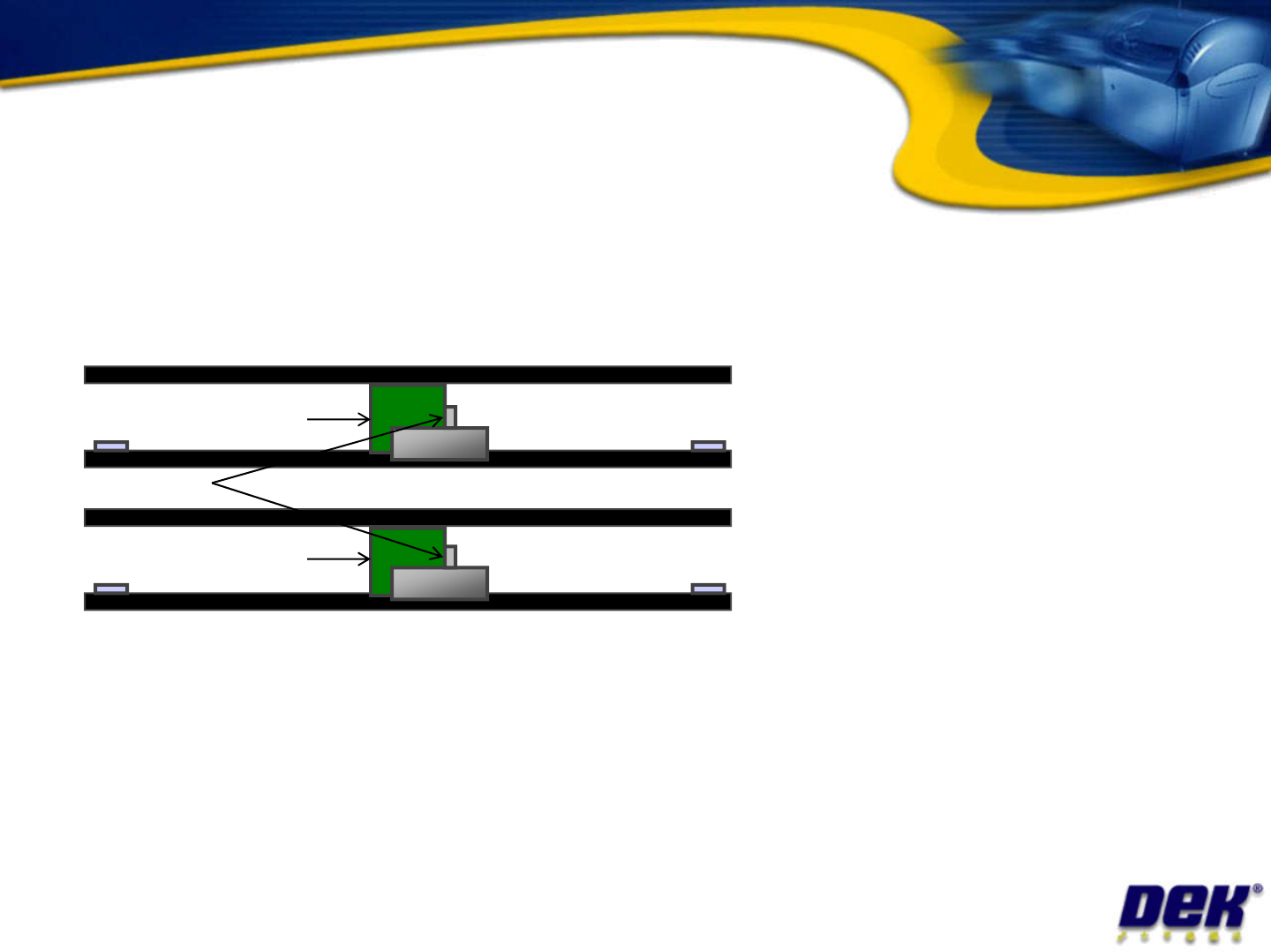

Board Received at
Board Stop (1)
= Cycle Time 1 starts
Board stop
CYCLE 1
Data cycle time R-R or L-L
Cycle Time
Issue 2: July 2007
Board Received at
Board Stop (2)
= Cycle Time 1 stops
and Cycle Time 2 starts
Board stop
CYCLE 2
