Advantech - Single board computer Issue 2: July 2007
Advantech PC card layout
Issue 2: July 2007
Network card*
Vision card
Vision card
(gold camera only)
Sound card*
Wireless bridge breakout*
Vision adaptor card
Single board computer
4 Port USB hub
Peripheral connectors
* Required only for Interactive software option
Advantech - Single board
computer
Issue 2: July 2007

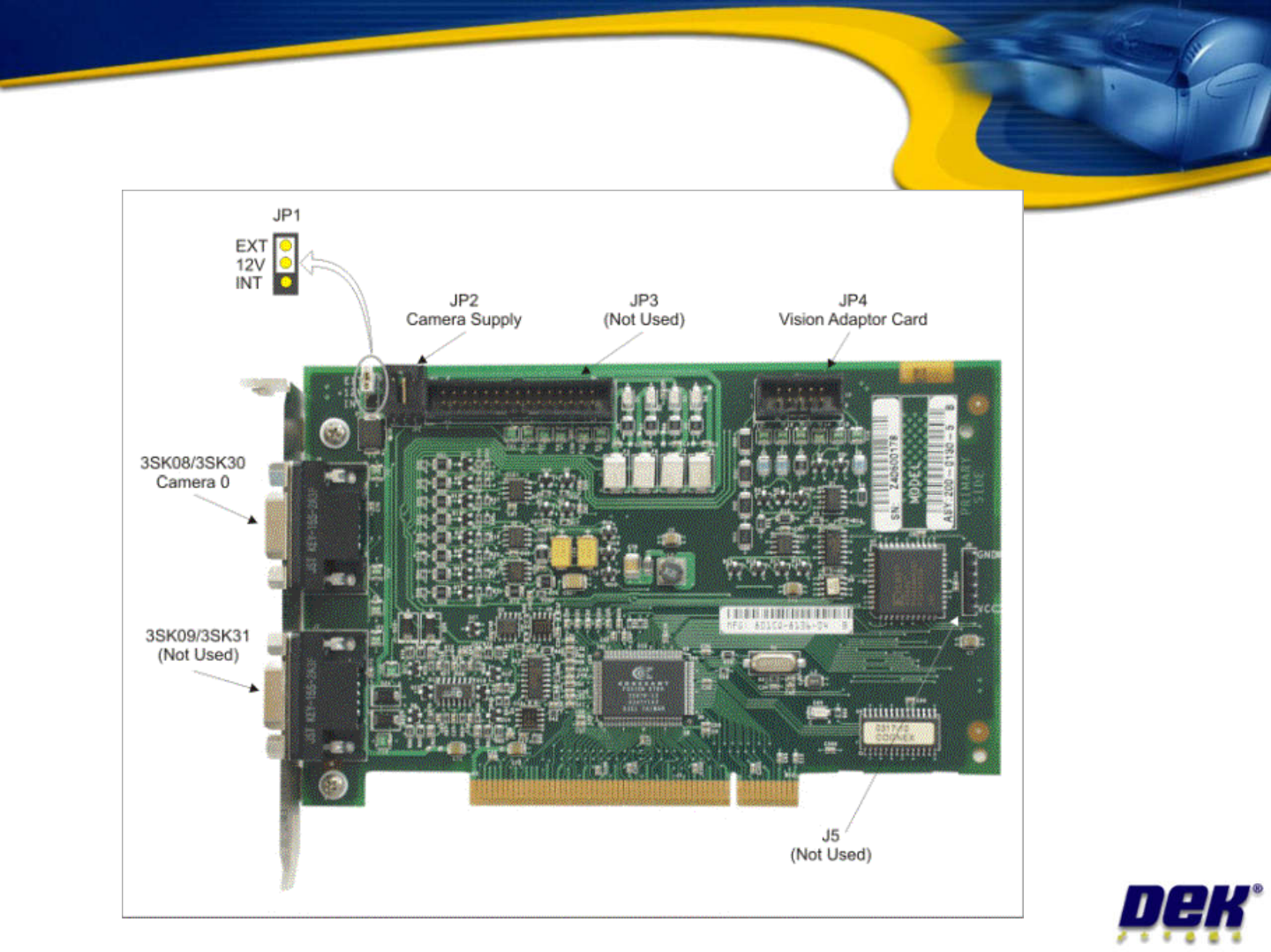

Vision card
Issue 2: July 2007
