Cyclone Cleaner Tasks • Remove Cy clone assembly fro m machine and disassemble • Issue 2: July 2007 machine and disassemble • Perform cleaner he ight and level adjustme nt • Test under screen cleaner performance Objectiv…
Cyclone paper roll changeover
•
Minimal interruption of line beat
• Off-line cassette replenish
– Paper roll loaded in advance
– Cassette snaps into place <20 seconds
•
Change paper
Issue 2: July 2007
•
Change paper
– Without unloading stencil(only front justified screens)
– With ASM at minimum width
Cyclone Cleaner Tasks
•
Remove Cyclone assembly from
machine and disassemble
•
Issue 2: July 2007
machine and disassemble
•
Perform cleaner height and level
adjustment
•
Test under screen cleaner performance
Objective 29: Complete the workbook tasks

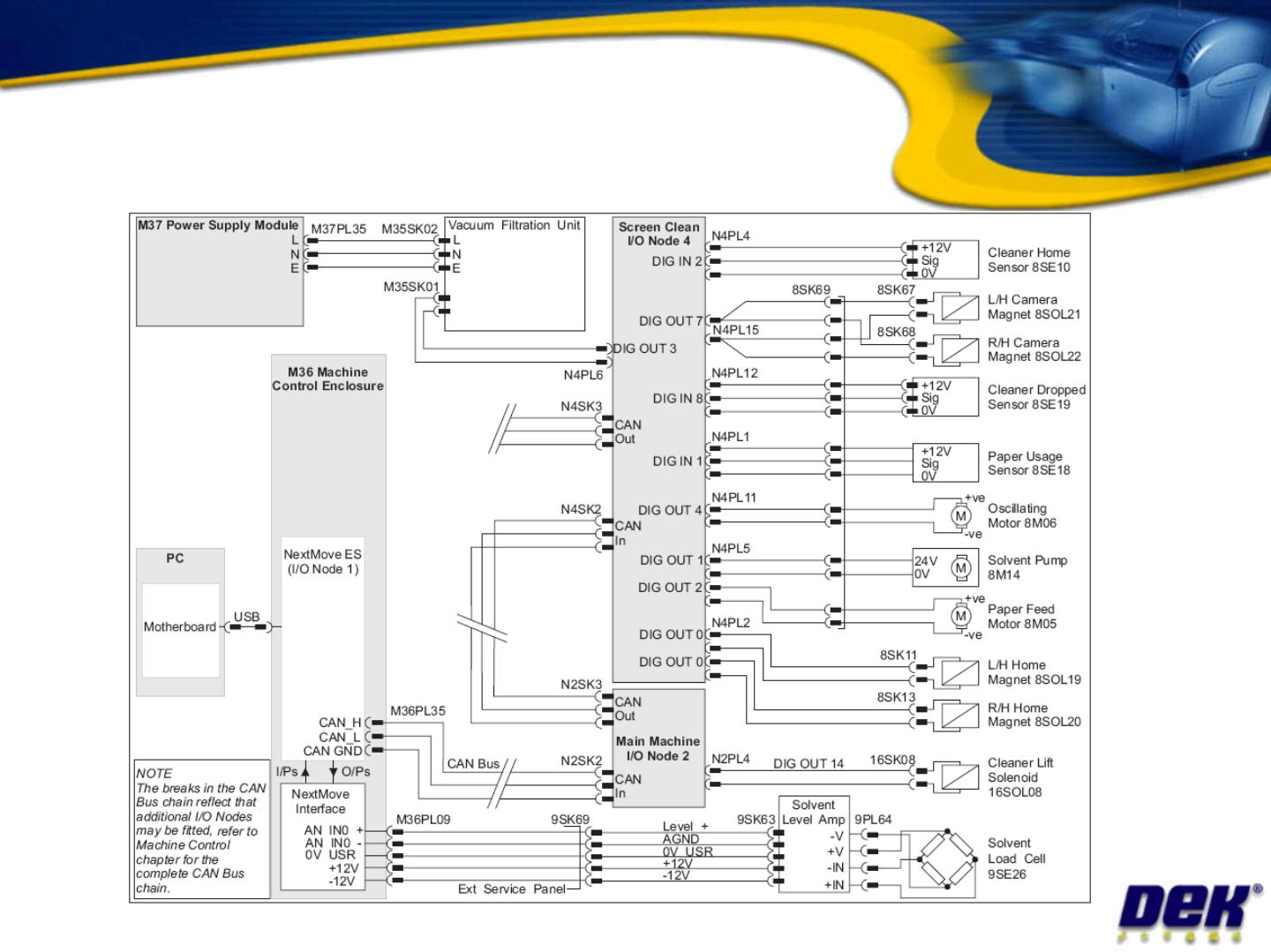

Cyclone Cleaner Schematic
Issue 2: July 2007
