• Communicates via CAN bus • Multiple sensor inputs • Multiple outputs • Solvent pump drive circuit • Support for all under screen c leaner functionality including paper & vortex, pumped or pressurised solvent. Scree…
•
Communicates via CAN bus
•
Multiple sensor inputs
•
Multiple outputs
•
Mounted on Print Carriage
•
Support for all Print Carriage functionality including Temp/Hum,
Print Pressure (includes amplifier), Paste Roll Height Monitoring,
ProFlow, Paste dispensing.
Print carriage I/O Node 3
Issue 2: July 2007
Check
Knowledge
base for issue
status and
related articles
•

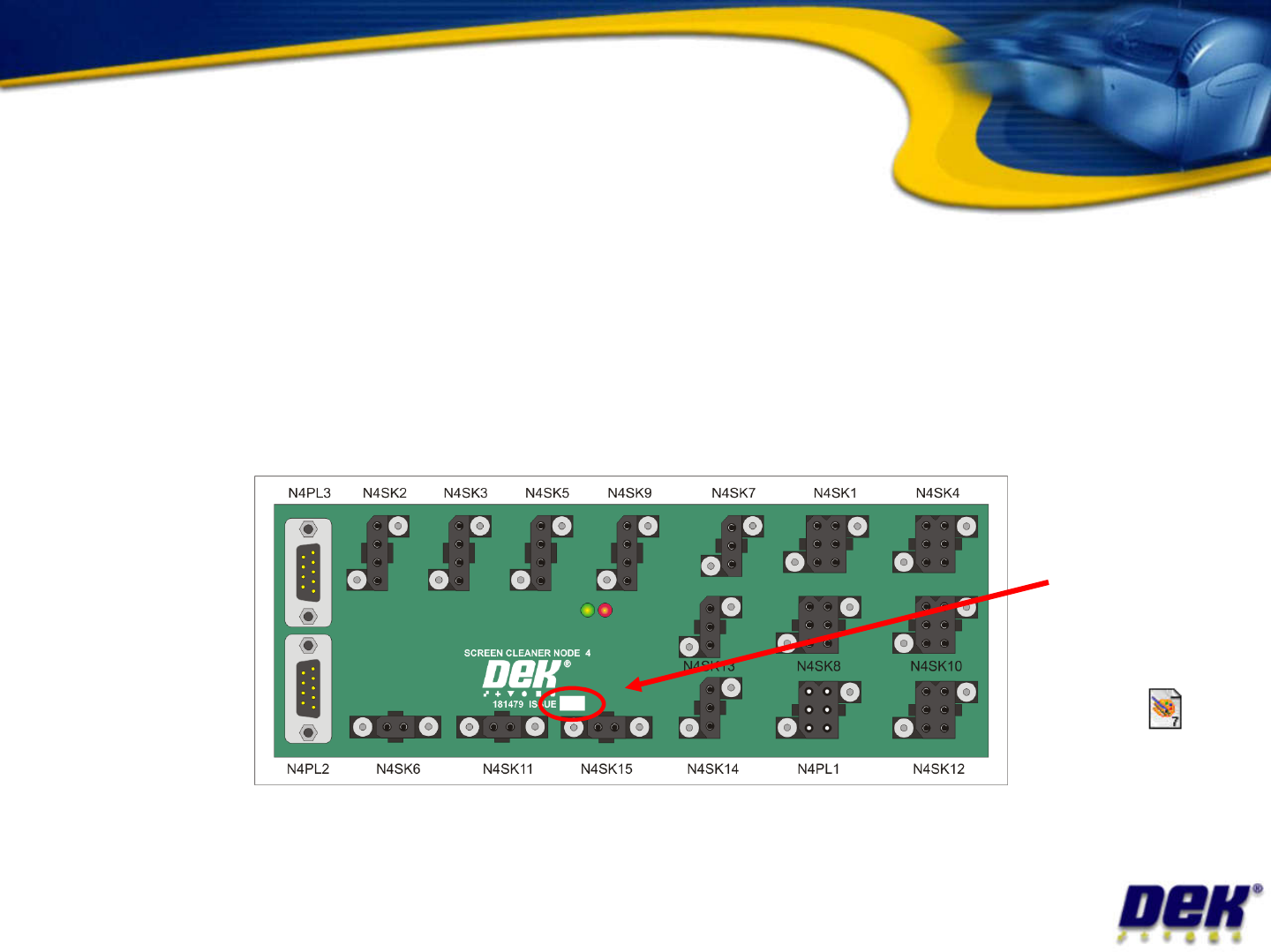

Communicates via CAN bus
•
Multiple sensor inputs
•
Multiple outputs
•
Solvent pump drive circuit
•
Support for all under screen cleaner functionality including
paper & vortex, pumped or pressurised solvent.
Screen cleaner I/O Node 4
Issue 2: July 2007
Paint Shop Pro 7
Check
Knowledge
base for issue
status and
related articles

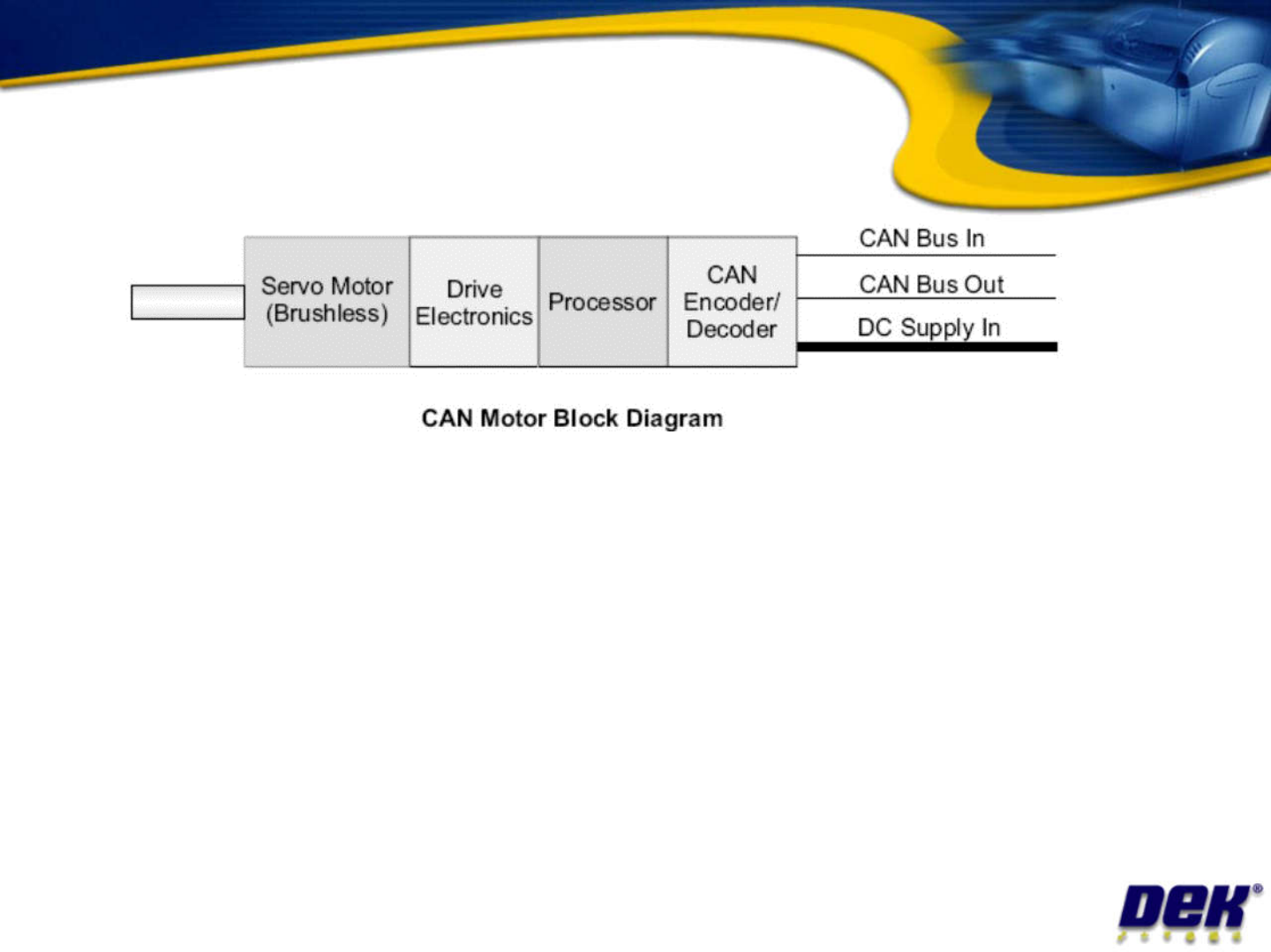

Servo / Stepper Motor nodes
•
Servo node 6 – Rising Table*
Issue 2: July 2007
* Either separate BG9010 or integral node depending on motor type
•
Servo node 6 – Rising Table*
•
Servo node 7 – Print Carriage
•
Servo node 8 - Camera X (rotary only)
•
Servo node 9 - Camera Y (rotary only)
•
Stepper node 10 – Paste dispense (option)
•
Servo Node 11 – Board stop node (RTC)
•
Stepper Node 12 – Moving Rail (RTC)
•
Servo Node 13 – Paste Management for ‘Big Red’
