ProFlow Module Tasks • Swap fro m Sque egees to ProFlo w • Adjust ProFlow cassette low sensor Issue 2: July 2007 • Adjust ProFlow cassette low sensor • Set ProF low cont act po sition • Calibrate paste empty and full and…

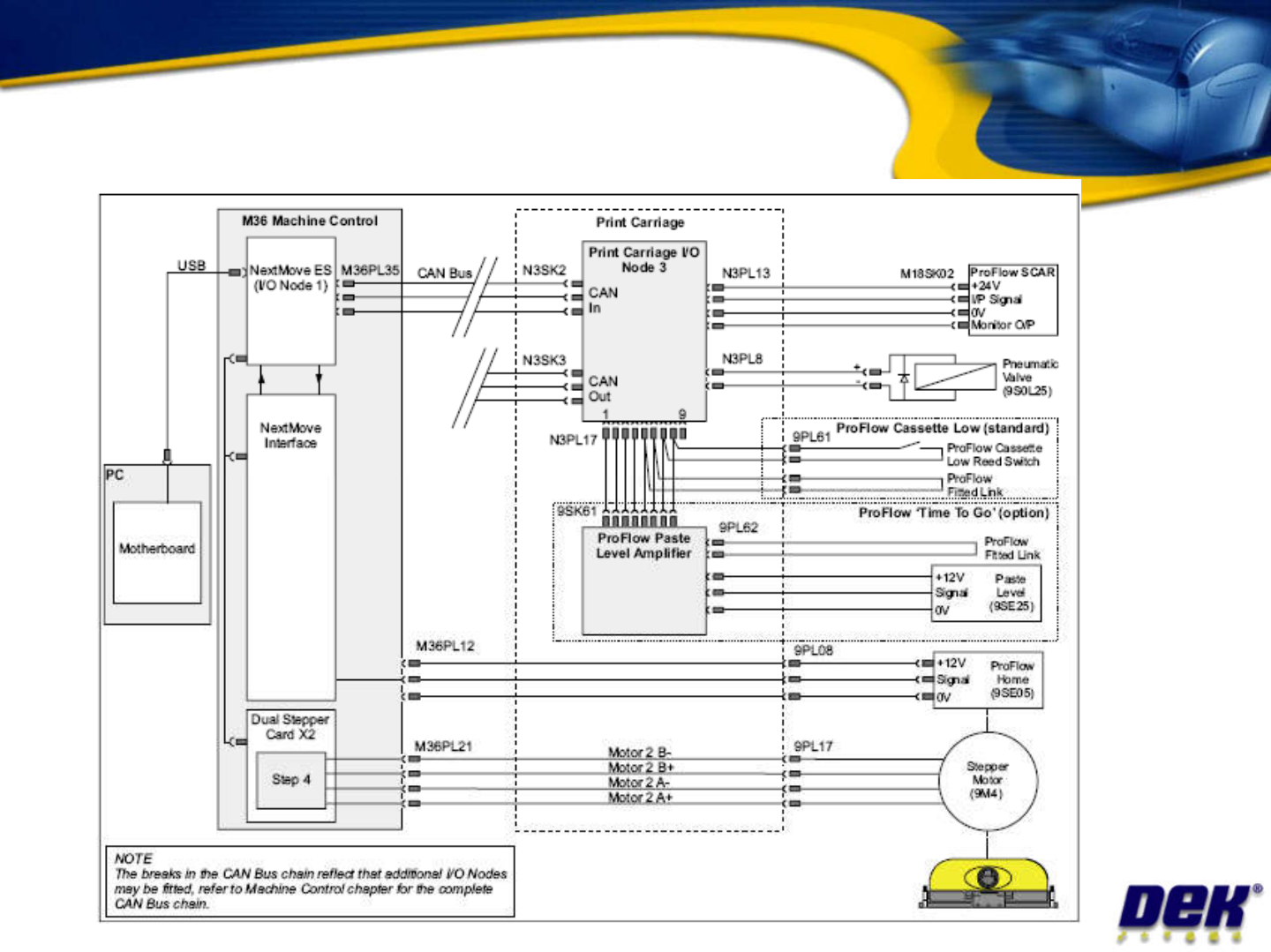

ProFlow Module
•
The ProFlow module consists of the following sub-
assemblies:
– Print-head mechanism
– Pressure mechanism
– Transfer head
Issue 2: July 2007
– Transfer head
– 1 x stepper motor
– 1 x drive belt
– Dual stepper drive card (X2)
– Home sensor
– Cassette low sensor (digital) OR
– Paste level sensor (analogue) with amplifier
– Software Controlled Air pressure Regulator (SCAR)
ProFlow Module Tasks
•
Swap from Squeegees to ProFlow
•
Adjust ProFlow cassette low sensor
Issue 2: July 2007
•
Adjust ProFlow cassette low sensor
•
Set ProFlow contact position
•
Calibrate paste empty and full and
configure Time To Go
Objective 21: Complete activities in your workbook
ProFlow
Issue 2: July 2007
