Electrical sy stem Quiz • Which configurations and settings must be completed if the Nextmove ES card is changed? • Name 3 locations where +24v can be monitore d? • Which cards are interchan geab le for troubleshooting p…

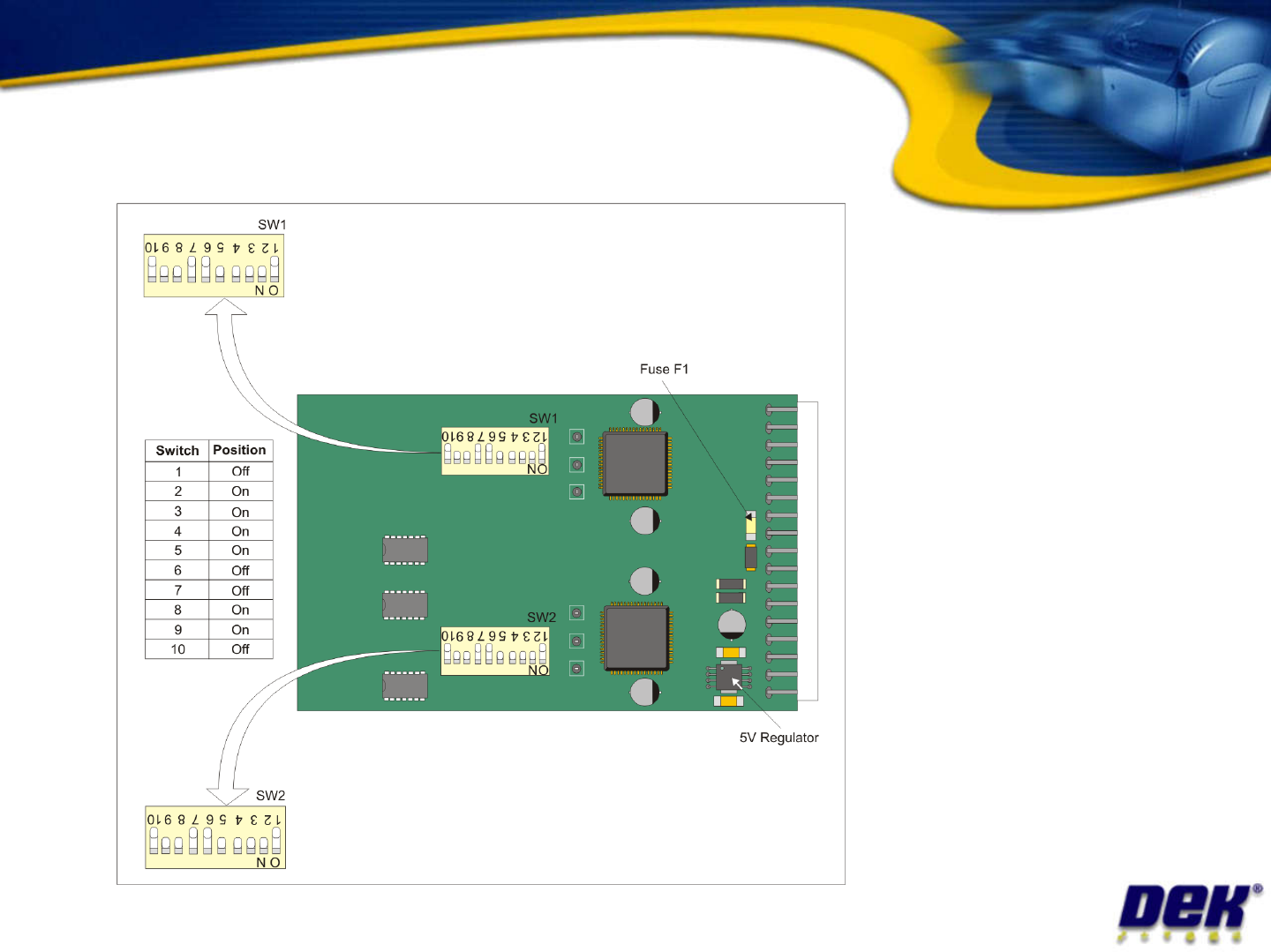

Dual stepper
X1, X2, X3
Cards are
interchangeable
So long as the bit
Issue 2: July 2007
So long as the bit
switches are
configured
appropriately i.e for
RTC or Micro Step
motors
Electrical system Quiz
•
Which configurations and settings must be completed if the
Nextmove ES card is changed?
•
Name 3 locations where +24v can be monitored?
•
Which cards are interchangeable for troubleshooting
purposes?
Issue 2: July 2007
purposes?
Task: Complete the answers in your workbook
Electrical enclosures
Issue 2: July 2007
With Advantech PC
With I-Bus PC
