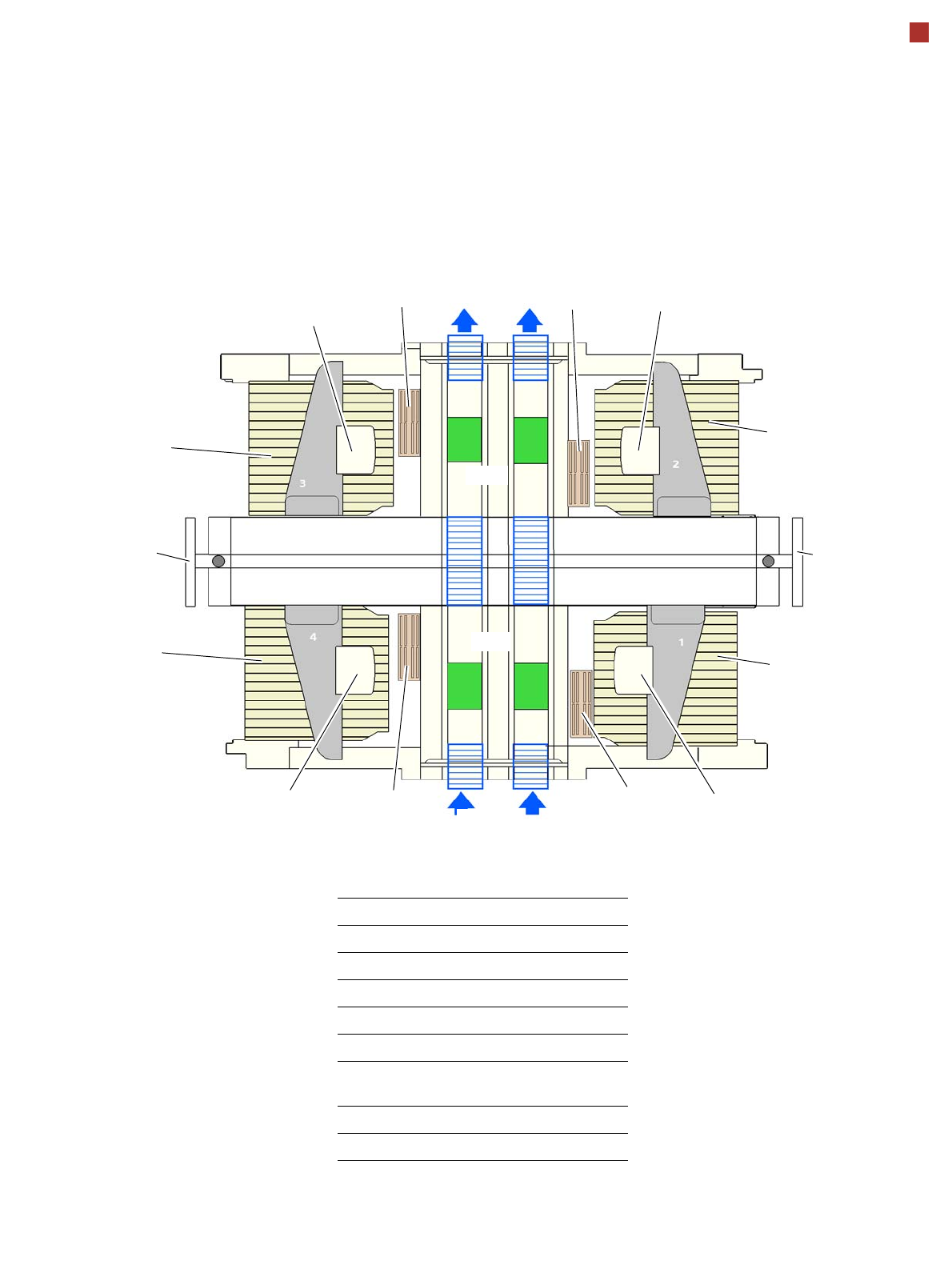

Modular machine concept
Example of SIPLACE X4i S
NC
NC
C&P20 P
C&P20 P
NC
NC
PA1
PA2
C&P20 P
COT In
C&P20 P
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
C&P20 P SIPLACE SpeedStar
NC Nozzle changer
BZ Buffer zone
COT In Changeover table at the inner
position
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 12.
COT In
COT In
COT In
IN
OUT
OUT
BZ
IN
12
Machine performance
Placement head types SIPLACE SpeedStar (C&P20 P)
SIPLACE MultiStar (CPP)
SIPLACE TwinStar (TH)
Placement performance
The placement performance is influenced by the different head combinations and head positions, plus the con-
veyor configurations. Individual options and customized applications also influence the placement performance.
On request, ASM can calculate the actual performance of your product on your machine configuration.
IPC value [components/h]
According to the vendor-neutral conditions of the IPC 9850 standard published by the Association of Connect-
ing Electronics Industries.
SIPLACE benchmark value [components/h]
The SIPLACE benchmark value is measured during the machine acceptance tests. It corresponds to the condi-
tions set out in the ASM scope of service and supply.
Theoretical maximum output value [components/h]
The theoretical maximum output value is calculated from the most favorable conditions for each machine type
and setting, and corresponds to the theoretical conditions normally used in the industry.
SIPLACE X2 S
See the note above for definition of placement performance values.
Machine Placement area 1 Placement area 2 IPC value Benchmark
value
X2 S-A C&P20 P C&P20 P 52,000 64,000
C&P20 P CPP_L 45,500 54,000
C&P20 P CPP_H 43,000 51,500
CPP_L CPP_L 37,400 44,000
CPP_H CPP_H 33,500 39,000
CPP_L CPP_H 35,450 41,500
X2 S-B C&P20 P TH 30,800 37,000
CPP_L TH 24,000 25,000
CPP_H TH 20,600 24,500
X2 S-C TH TH 9,000 10,000
CPP_H = Multistar CPP in high assembly position
CPP_L = Multistar CPP in low assembly position
13
Machine performance
Placement head types SIPLACE SpeedStar (C&P20 P)
SIPLACE MultiStar (CPP)
SIPLACE TwinStar (TH)
SIPLACE X3 S
Placement performance
For a definition of placement performance values, see the note on page 12.
Machine Placement area 1 Placement area 2 IPC value Benchmark
value
X3 S-A C&P20 P / C&P20 P C&P20 P 78,100 94,500
C&P20 P / C&P20 P CPP_L 73,200 84,500
C&P20 P / C&P20 P CPP_H 70,100 82,000
CPP_L/CPP_L CPP_L 57,500 66,000
CPP_H / CPP_H CPP_H 49,750 58,500
CPP_L/CPP_L CPP_H 54,000 63,500
X3 S-B C&P20 P / C&P20 P TH 57,000 67,500
CPP_L/CPP_L TH 41,650 49,000
CPP_H / CPP_H TH 37,400 44,000
X3 S-C CPP_H/TH TH 25,500 29,500
X3 S-D TH / TH TH 11,900 14,000
SIPLACE X4 S
Placement performance
For a definition of placement performance values, see the note on page 12,
Placement area 1 Placement area 2 IPC value Benchmark
value
X4 S-A C&P20 P / C&P20 P C&P20 P / C&P20 P 105,000 125,000
C&P20 P / C&P20 P CPP_L/CPP_L 90,500 106,500
C&P20 P / C&P20 P CPP_H / CPP_H 86,250 101,500
CPP_L/CPP_L CPP_L/CPP_L 74,800 88,000
CPP_L/CPP_L CPP_H / CPP_H 70,550 83,000
CPP_H / CPP_H CPP_H / CPP_H 66,300 78,000
X4 S-B C&P20 P / C&P20 P CPP_H/TH 68,500 87,000
CPP_L/CPP_L CPP_H/TH 57,800 68,500
CPP_H / CPP_H CPP_H/TH 53,550 63,500
X4 S-C C&P20 P / C&P20 P TH / TH 60,500 71,500
CPP_L/CPP_L TH / TH 45,050 53,000
CPP_H / CPP_H TH / TH 40,800 48,000
X4 S-D CPP_H/TH TH / TH 28,050 33,500
X4 S-E TH / TH TH / TH 15,300 18,000
CPP_H = Multistar CPP in high assembly position
CPP_L = Multistar CPP in low assembly position
