57 Technical data Maneuvering radii for the WPC Maneuvering radius R 750 mm Distance L1: Machine center to outer edge of WPC (handles) 2100 mm Distance L2: Machine center to wall 2850 mm

100%1 / 72
56
Technical data

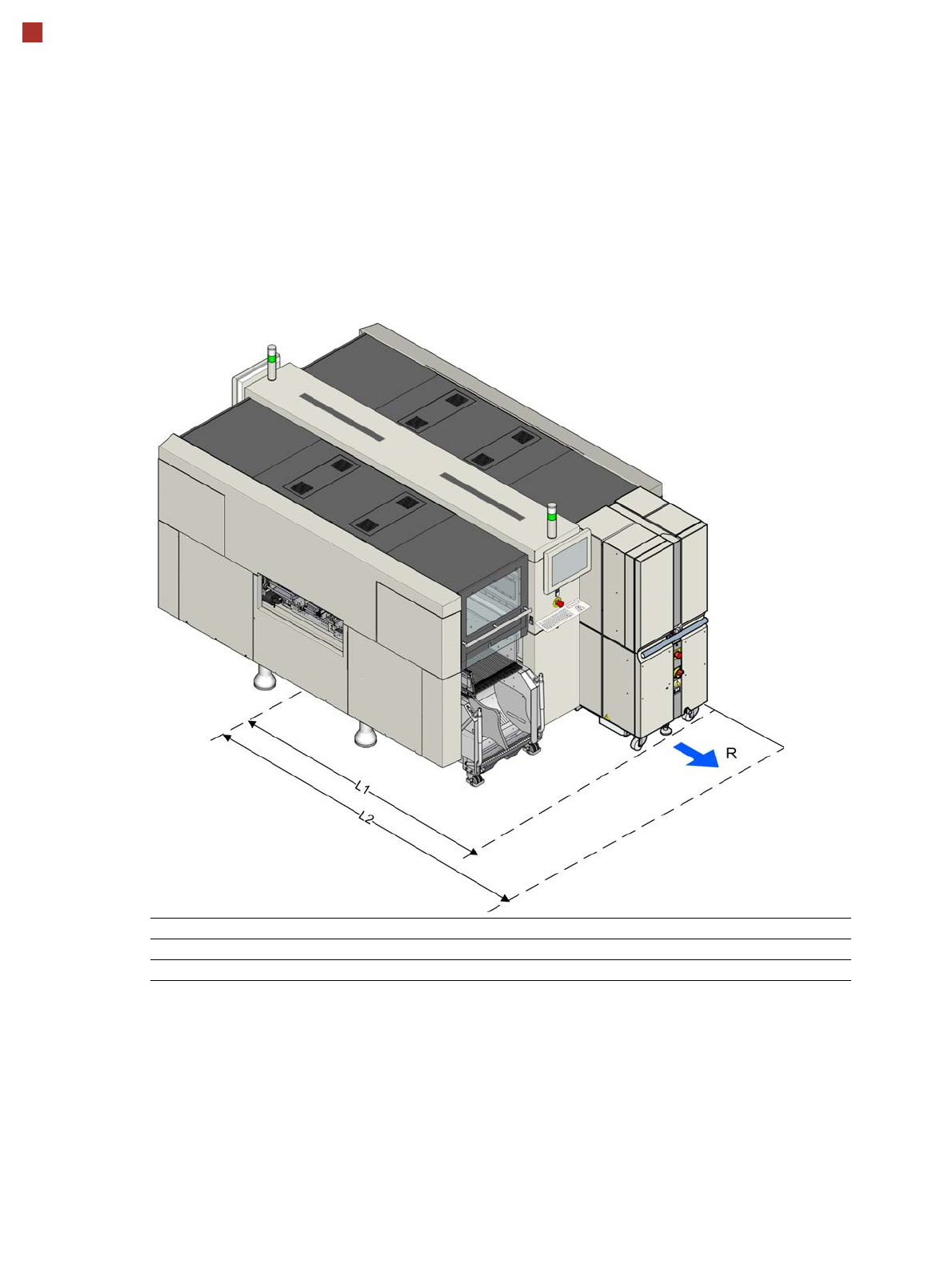

Maneuvering radii for MTC
Maneuvering radius R 750 mm
Distance L1: Machine center to outer edge of MTC 1938 mm
Distance L2: Machine center to wall 2688 mm
57
Technical data

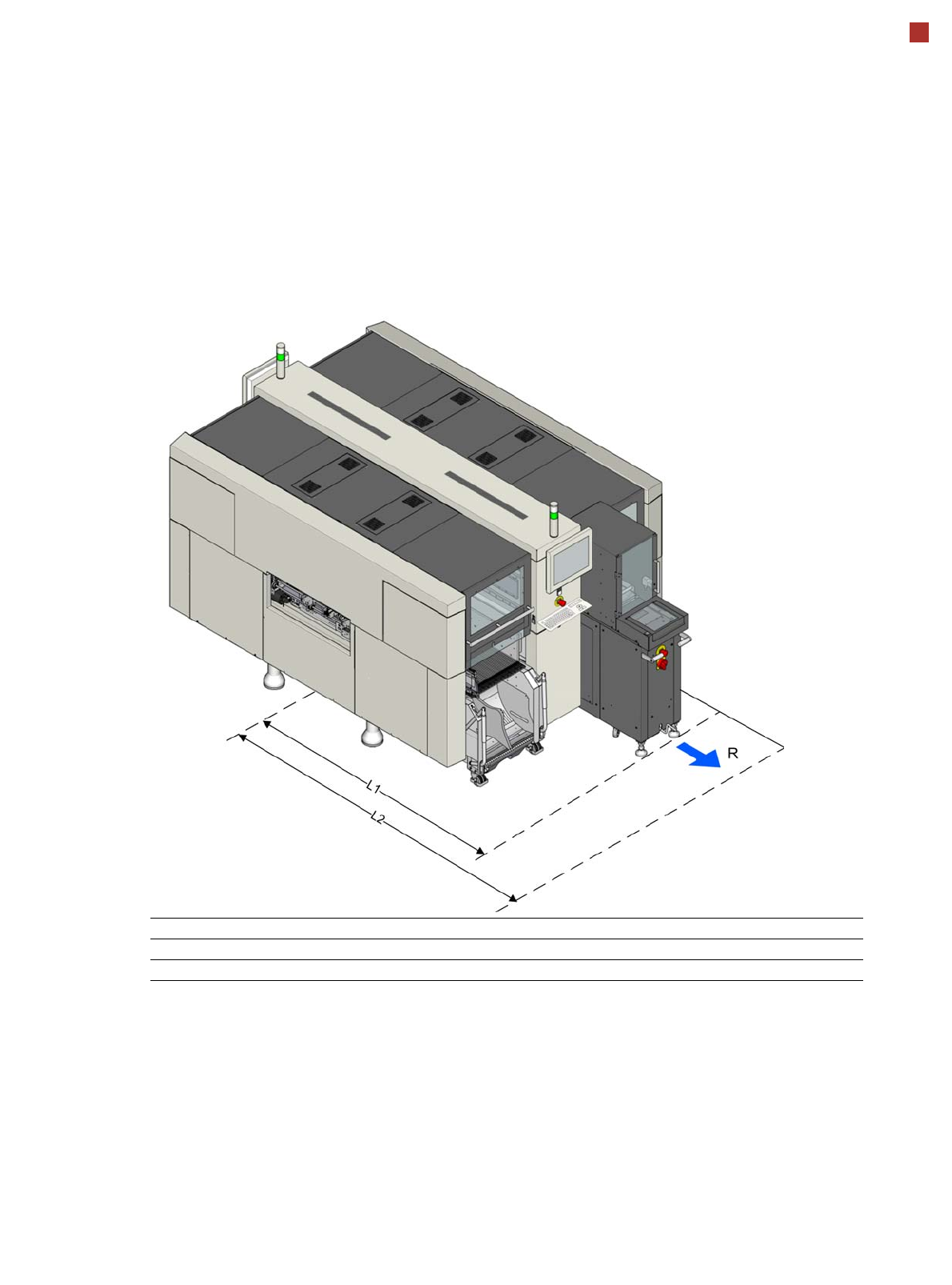

Maneuvering radii for the WPC
Maneuvering radius R 750 mm
Distance L1: Machine center to outer edge of WPC (handles) 2100 mm
Distance L2: Machine center to wall 2850 mm
58
Technical data

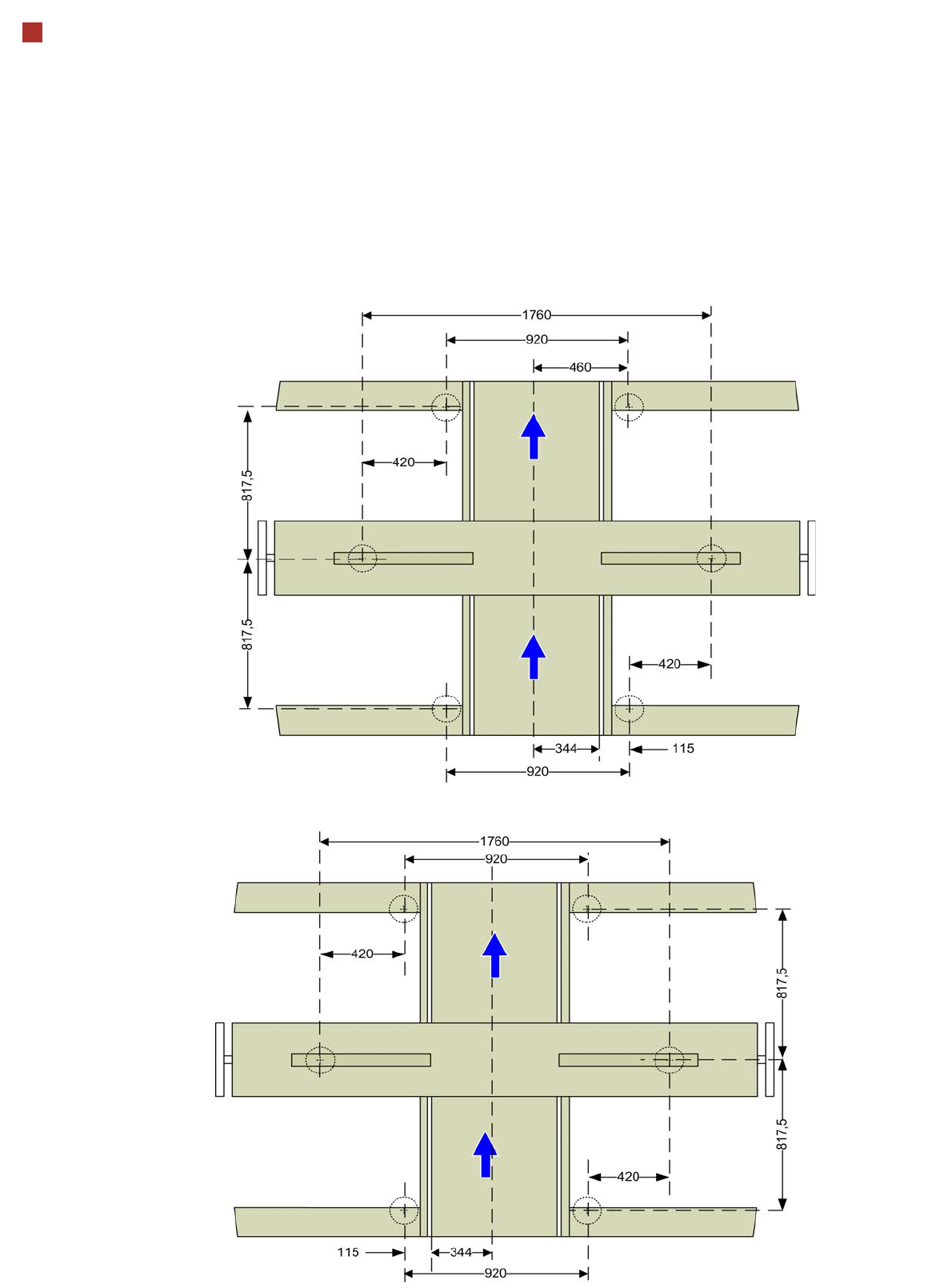

Spacing distances for single conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 24.
All dimensions in millimeters.
Fixed conveyor side at maximum
left position
a
.
