6 SIPLACE X-Series Machine description Intelligent placement solu- tions for maximum stan- dards Maximum flexib ility, top per- formance or placement qual- ity: the SIPLACE X-Series has state-of-the-art technol- ogy to m…

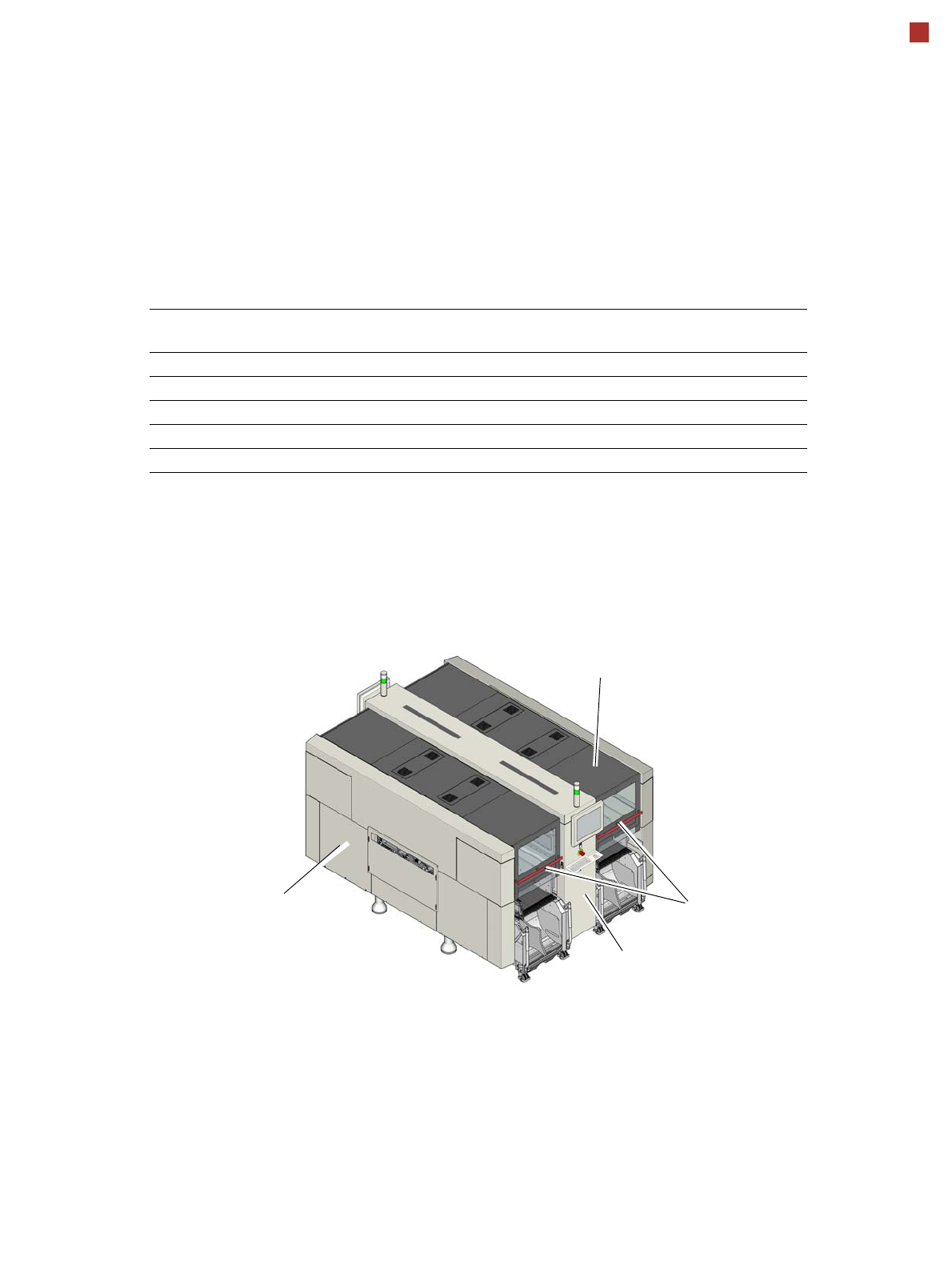

Overview of technical data

Maximum values

Placement performance

Benchmark value 150,000 comp./h

Component range 0201 (metric) - 125 mm x 200 mm

Placement accuracy ± 22 µm, (3

σ)

Feeding capacity (component trolley X) 160 feeder modules 8 mm X

Board format (length x width) 850 mm

x 560 mm

a) With license for "Long Board Option" and input/output conveyor extension.

Camera 6 illumination levels

Machine protection: Telegray

(RAL 7047)

Machine colors

Covers: Telegray

(RAL 7047)

Covers: Pearl dark gray

(RAL 9023 )

Handles: Ruby red

(RAL 3003)

SIPLACE X-Series

Machine description

Intelligent placement solu-

tions for maximum stan-

dards

Maximum flexibility, top per-

formance or placement qual-

ity: the SIPLACE X-Series

has state-of-the-art technol-

ogy to master any challenge

arising in SMT production. It

offers all the innovations and

features to ensure efficient

electronics production today

and in the future, and pro-

vides previously unavailable

ways to increase both effi-

ciency and productivity.

Maximum modularity for

every need

The compact design of the

SIPLACE X-Series forms the

ideal basis for new, future-

oriented production concepts

which keep pace with

dynamically developing cus-

tomer requirements, without

the need for time-consuming

conversion as in traditional

SMT production lines.

The X-Series placement

machines are available in

four different variants

• SIPLACE X2 S (520210)

• SIPLACE X3 S (520310)

• SIPLACE X4 S (520480)

• SIPLACE X4i S (520440)

The numbers in the type

name indicate the number of

gantries used. Each gantry

has one placement head.

The SIPLACE X-Series cov-

ers the entire range of com-

mon components with only

three placement heads. The

ideal addition to the proven

SIPLACE TwinStar and the

high speed SIPLACE

SpeedStar is the new

SIPLACE Multistar place-

ment head.

The user benefits from differ-

ent PCB conveyor variants:

The single conveyor and

the flexible dual conveyor.

Modular machine concept

Overview

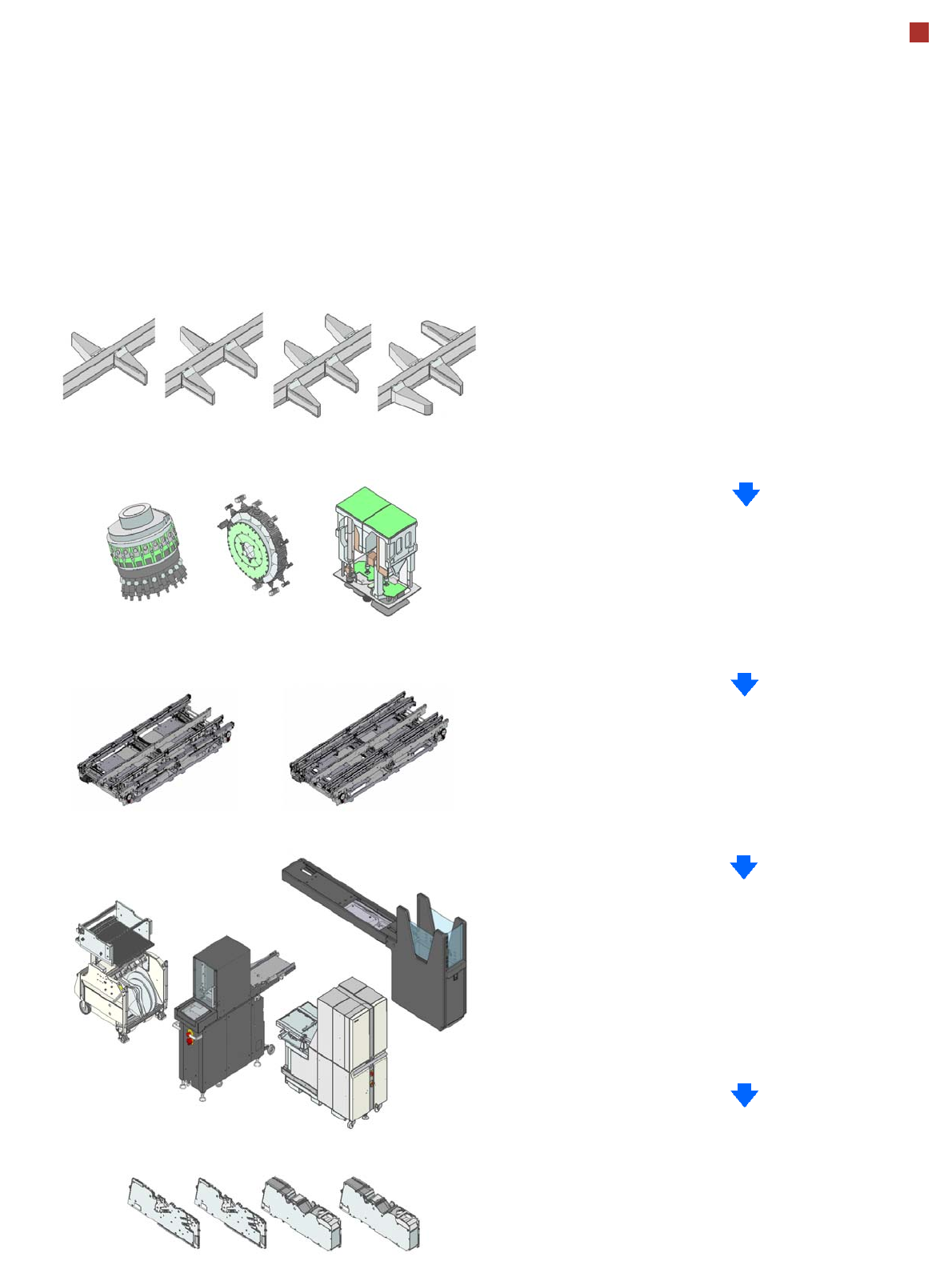

Placement machine without heads and compo-

nent trolleys

X2 S

X3 S

X4 S

X4i S

Selection of placement heads

MultiStar (CPP)

SpeedStar (C&P20 P)

TwinStar (TH)

Selection of conveyor

Single conveyor

Flexible dual conveyor

Selection of component infeed

Component trolley

WPC5 or WPC6

MTC

JTF-S/JTF-M

Selection of feeder modules

X tape feeder modules

Linear Dipping Unit X

Label presenter

MeasuringFeeder X

Customized special feeders
