7 Modular machine concept Overview Placement machin e without heads and compo- nent trolleys X2 S X3 S X4 S X4i S Selection of plac ement heads MultiStar (CPP) SpeedStar (C&P20 P) TwinStar (TH) Selection of conveyor …
6
SIPLACE X-Series
Machine description
Intelligent placement solu-
tions for maximum stan-
dards
Maximum flexibility, top per-
formance or placement qual-
ity: the SIPLACE X-Series
has state-of-the-art technol-
ogy to master any challenge
arising in SMT production. It
offers all the innovations and
features to ensure efficient
electronics production today
and in the future, and pro-
vides previously unavailable
ways to increase both effi-
ciency and productivity.
Maximum modularity for
every need
The compact design of the
SIPLACE X-Series forms the
ideal basis for new, future-
oriented production concepts
which keep pace with
dynamically developing cus-
tomer requirements, without
the need for time-consuming
conversion as in traditional
SMT production lines.
The X-Series placement
machines are available in
four different variants
• SIPLACE X2 S (520210)
• SIPLACE X3 S (520310)
• SIPLACE X4 S (520480)
• SIPLACE X4i S (520440)
The numbers in the type
name indicate the number of
gantries used. Each gantry
has one placement head.
The SIPLACE X-Series cov-
ers the entire range of com-
mon components with only
three placement heads. The
ideal addition to the proven
SIPLACE TwinStar and the
high speed SIPLACE
SpeedStar is the new
SIPLACE Multistar place-
ment head.
The user benefits from differ-
ent PCB conveyor variants:
The single conveyor and
the flexible dual conveyor.
7
Modular machine concept
Overview
Placement machine without heads and compo-
nent trolleys
X2 S
X3 S
X4 S
X4i S
Selection of placement heads
MultiStar (CPP)
SpeedStar (C&P20 P)
TwinStar (TH)
Selection of conveyor
Single conveyor
Flexible dual conveyor
Selection of component infeed
Component trolley
WPC5 or WPC6
MTC
JTF-S/JTF-M
Selection of feeder modules
X tape feeder modules
Linear Dipping Unit X
Label presenter
MeasuringFeeder X
Customized special feeders
8

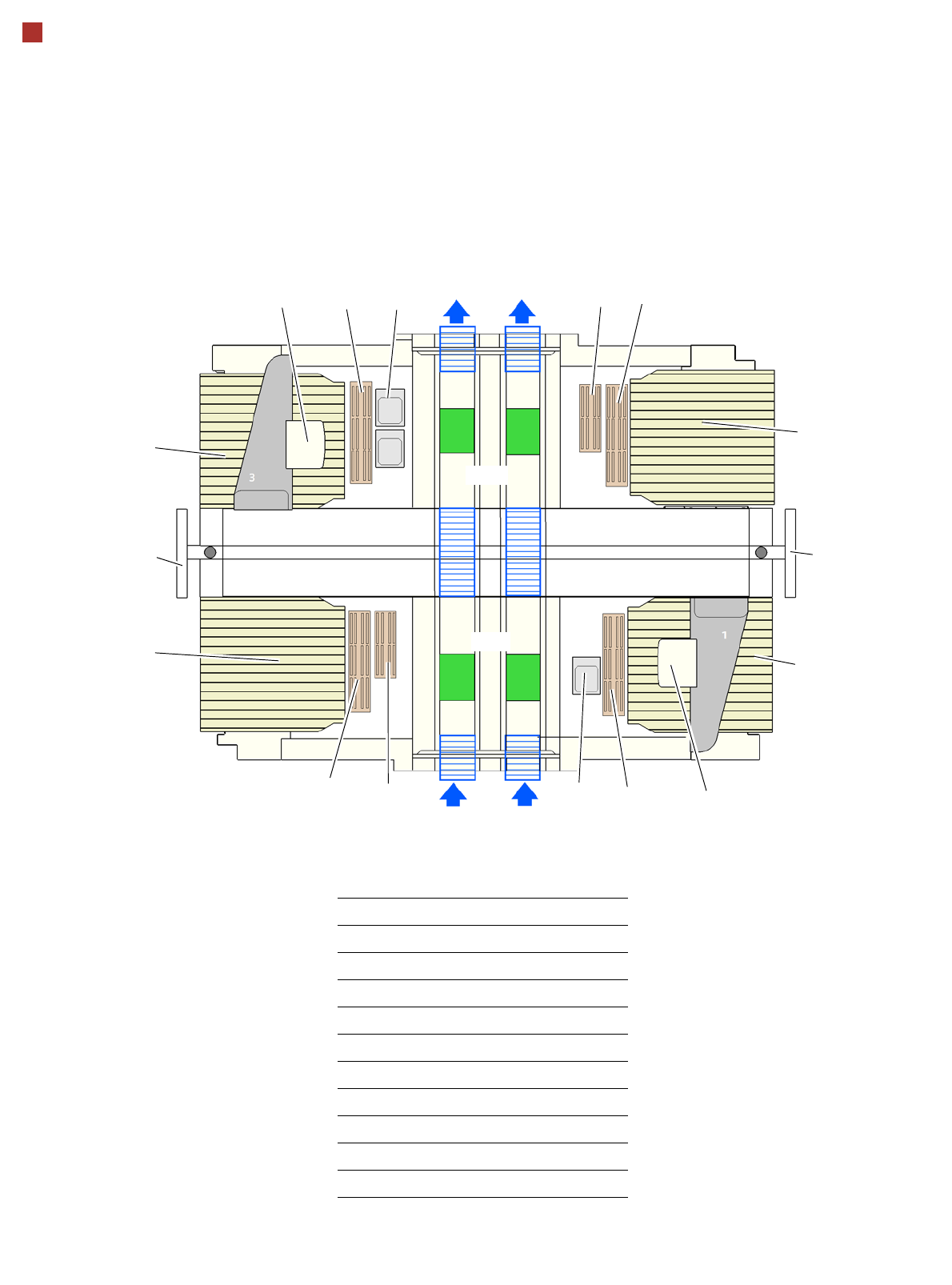

Modular machine concept
Example of SIPLACE X2 S
NC
NC
C&P20 P
NC
PA1
PA2
COT
C&P20 P
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
C&P20 P SIPLACE SpeedStar
NC Nozzle changer
NC2 Nozzle changer "row 2"
CAM Stationary cameras
BZ Buffer zone
COT Changeover table
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 12.
COT
COT
COT
IN
OUT
OUT
BZ
IN
CAM
CAM
NC
NC2
NC2
