17 Placement heads SIPLACE MultiStar (CPP) SIPLACE MultiStar (CPP) with component camera typ e 30 with co mponent camera type 33 (stationary cam era) Component range a a) Please note that the placeable component range is…
16
Placement heads

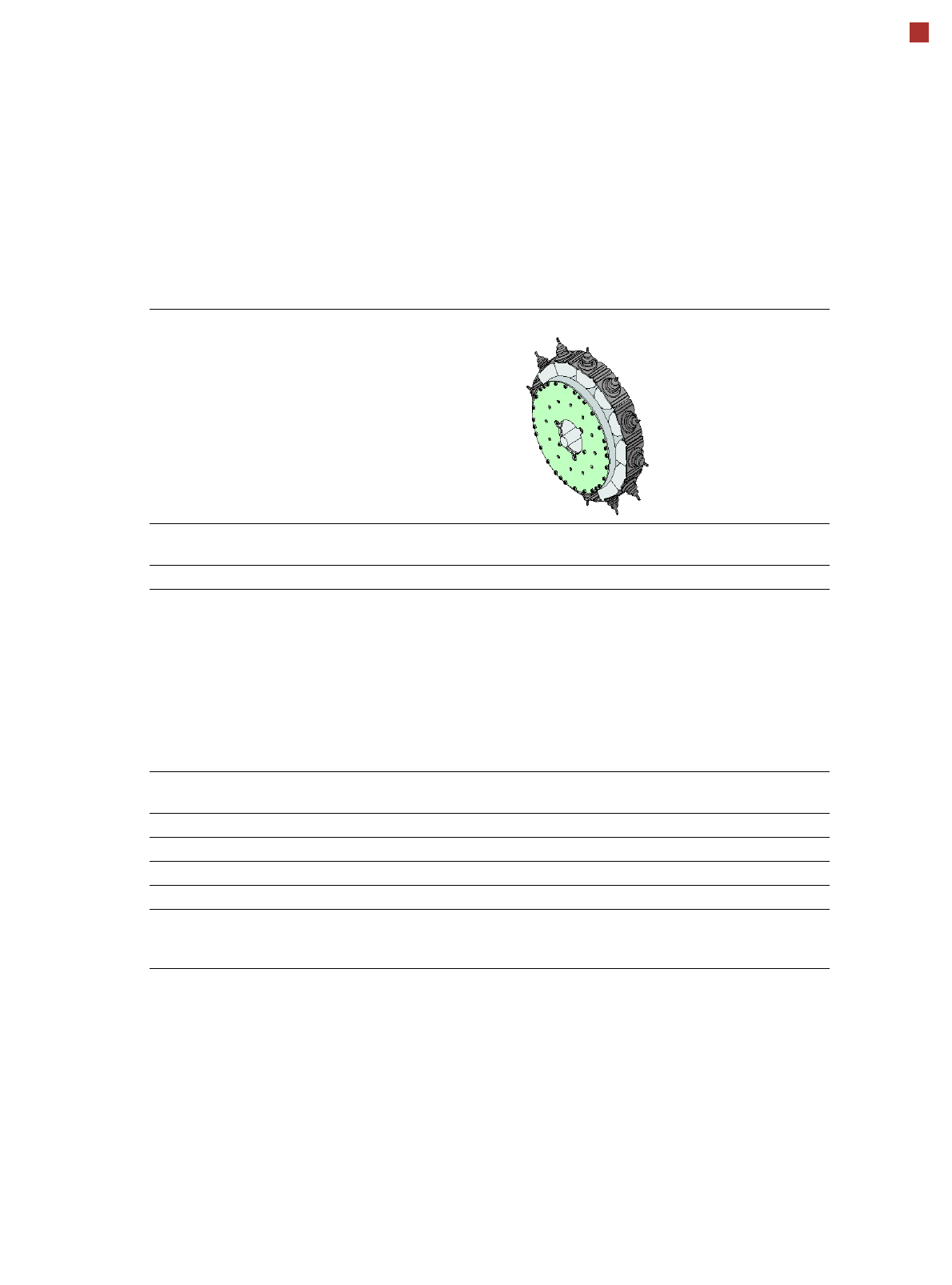

SIPLACE SpeedStar (C&P20 P)
SIPLACE SpeedStar (C&P20 P)
with component camera
type 23
with component camera type 41
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-spe-
cific standards, the component packaging tolerances and the component tolerances.
01005 to 2220, Melf, SOT,
SOD
0201 (metric) to 2220, Melf, SOT,
SOD, Bare-Die, Flip-Chip
Component spec.
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
4 mm
0.25 mm
0.1 mm
0.4 mm
0.2 mm
0.18 mm x 0.18 mm
6 mm x 6 mm
1 g
4 mm
0.08 mm
0.03 mm
0.10 mm
0.05 mm
0.12 mm x 0.12 mm
6 mm x 6 mm
1 g
Programmable set-down
force
0.5 - 4.5 N 0.5 - 4.5 N
Nozzle types 40xx 40xx
X/Y accuracy
b
b) The accuracy values are measured during the machine acceptance tests. They correspond to the condi-
tions set out in the ASM scope of service and supply.
± 36 µm/3σ ± 36 µm/3σ
Angular accuracy ± 0.5° / 3σ ± 0.5° / 3σ
Illumination levels 5 5
Standard functions High-resolution camera, vacuum sensor, force measurement, component
sensor, integrated turning station per segment, PCB warpage check, individ-
ual image of each component
17
Placement heads

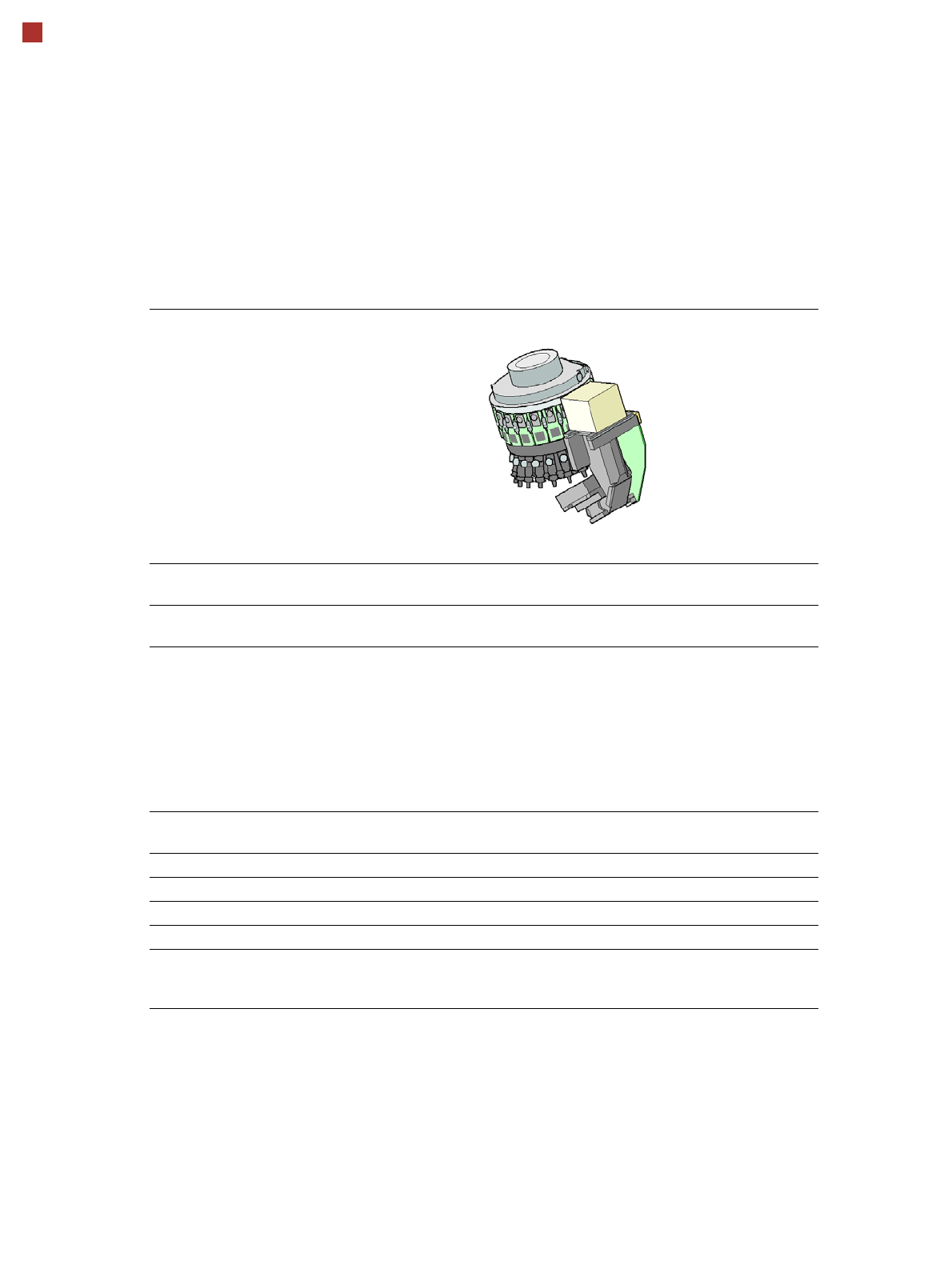

SIPLACE MultiStar (CPP)
SIPLACE MultiStar (CPP)
with component camera type 30 with component camera type 33
(stationary camera)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific
standards, the component packaging tolerances and the component tolerances.
01005 to 27 mm x 27 mm 0402 to 50 mm x 40 mm
b
b) A diagonal of 69 mm is possible during multiple measurements (e.g. 60 mm x 10 mm).
Component spec.
Max height
c
Max. height
d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
c) CPP head: in low installation position (stationary component camera not possible).
d) CPP head: in high installation position.
6.0 mm
8.5 mm
0.25 mm
0.10 mm
e
/ 0.2 mm
f
0.25 mm
e
/ 0.35 mm
f
0.14 mm
e
/ 0.20 mm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
e) For components < 18 mm x 18 mm.
f) For components ≥ 18 mm x18 mm.
11.5 mm
0.3 mm
0.15 mm
0.35 mm
0.2 mm
1.0mm x 0.5mm
50 mm x 40 mm
20 g
Programmable set-down
force
1.0 - 15 N
g
g) With OSC package
1.0 - 15 N
g
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
h
h) The accuracy values are measured during the machine acceptance tests. They correspond to the conditions
set out in the ASM scope of service and supply.
± 41 µm/3σ ± 34 µm/3σ
Angular accuracy ± 0.20° / 3σ
i
, ± 0.38° / 3σ
j
i) Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
j) Component dimensions smaller than 6 mm x 6 mm.
± 0.14° / 3σ
Illumination levels 5 6
Standard functions High-resolution camera, vacuum sensor, force measurement, component
sensor, integrated turning station per segment, PCB warpage check, individ-
ual image of each component
18
Placement heads

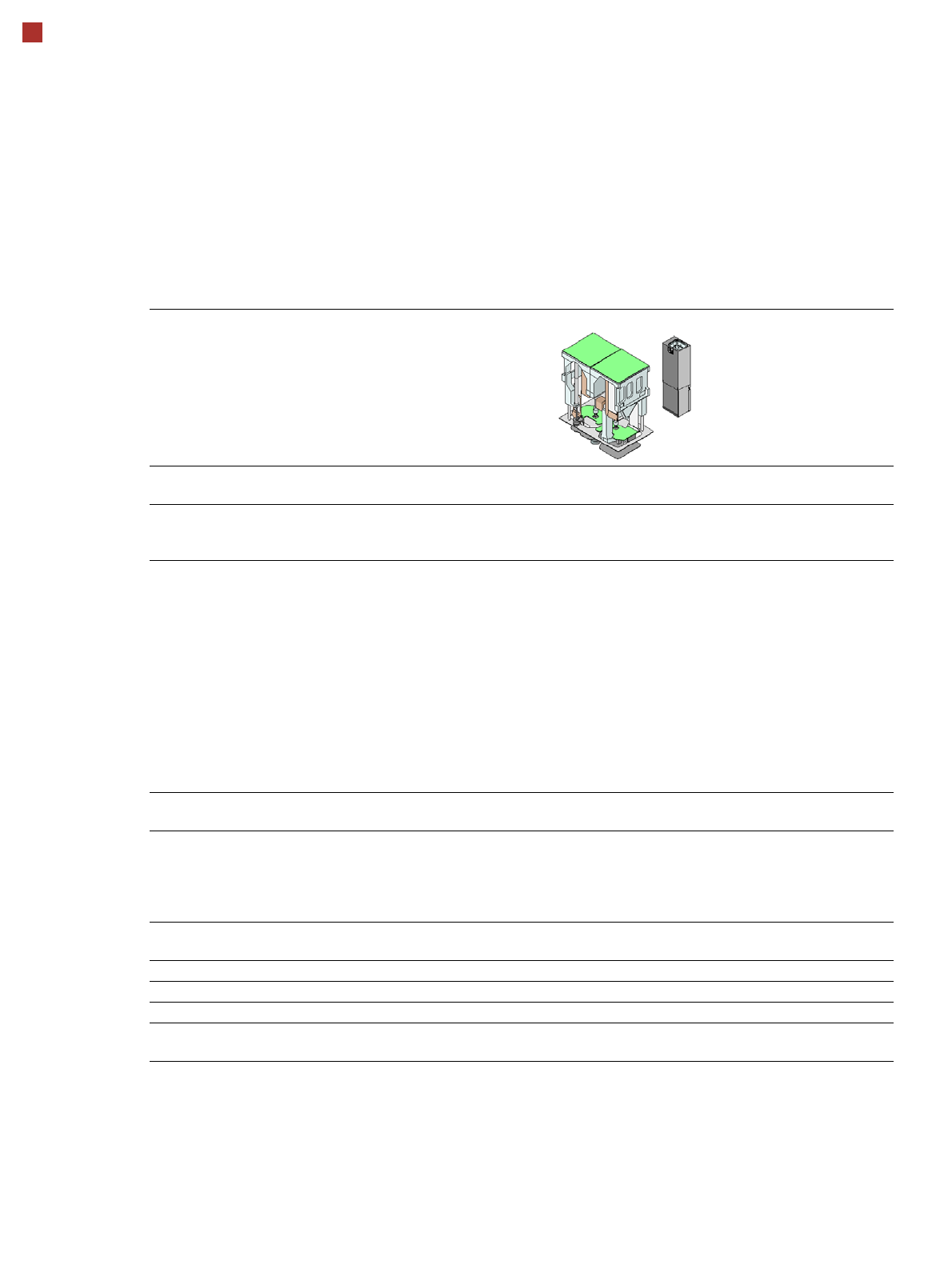

SIPLACE TwinStar (TH)
SIPLACE TwinStar
with component camera type 33
(fine pitch camera)
with component camera type 25
(flip chip camera)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards,
the component packaging tolerances and the component tolerances.
0402 to SO, PLCC, QFP, BGA, special
components, bare dies, flip-chips
0201 to SO, PLCC, QFP, sockets,
plugs, BGA, special components, bare
dies, flip-chips, shields
Component specs
b
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
c
b) If the MultiStar and TwinStar are combined in the same placement area, the maximum component height may be re-
stricted.
c) If standard nozzles are used
25 mm (higher available on request)
0.3 mm
0.15 mm
0.35 mm
0.2 mm
1.0 mm x 0.5 mm
55 mm x 45 mm (single measurement)
Up to
200 mm x 125 mm (multiple measure-
ment)
d
100 g
d) Further restrictions will apply, according to the component dimensions and the component supply. These will be auto-
matically taken into account by SIPLACE Pro.
25 mm (higher available on request)
0.25 mm
0.1 mm
0.14 mm
0.08 mm
0.6 mm x 0.3 mm
16 mm x 16 mm (single measurement)
100 g
Programmable set-down
force
1.0 N - 15 N
2.0 N - 30 N
e
e) SIPLACE High-Force Head.
1.0 N - 15 N
2.0 N - 30 N
e
Nozzle types
f
f) Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available online.
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
g
g) The accuracy values are measured during the machine acceptance tests. They correspond to the conditions set out in
the ASM scope of service and supply.
± 26 µm/3σ ± 22 µm/3σ
Angular accuracy ± 0.05° / 3σ, ± 0.05° / 3σ
Illumination levels 6 6
Standard functions Stationary fine pitch camera, vacuum sensor, force measurement, nozzle changer,
PCB warpage check, individual image of each component
