60 Technical data Spacing distances with MTC All dimensions in mill imeters.

100%1 / 72
59
Technical data

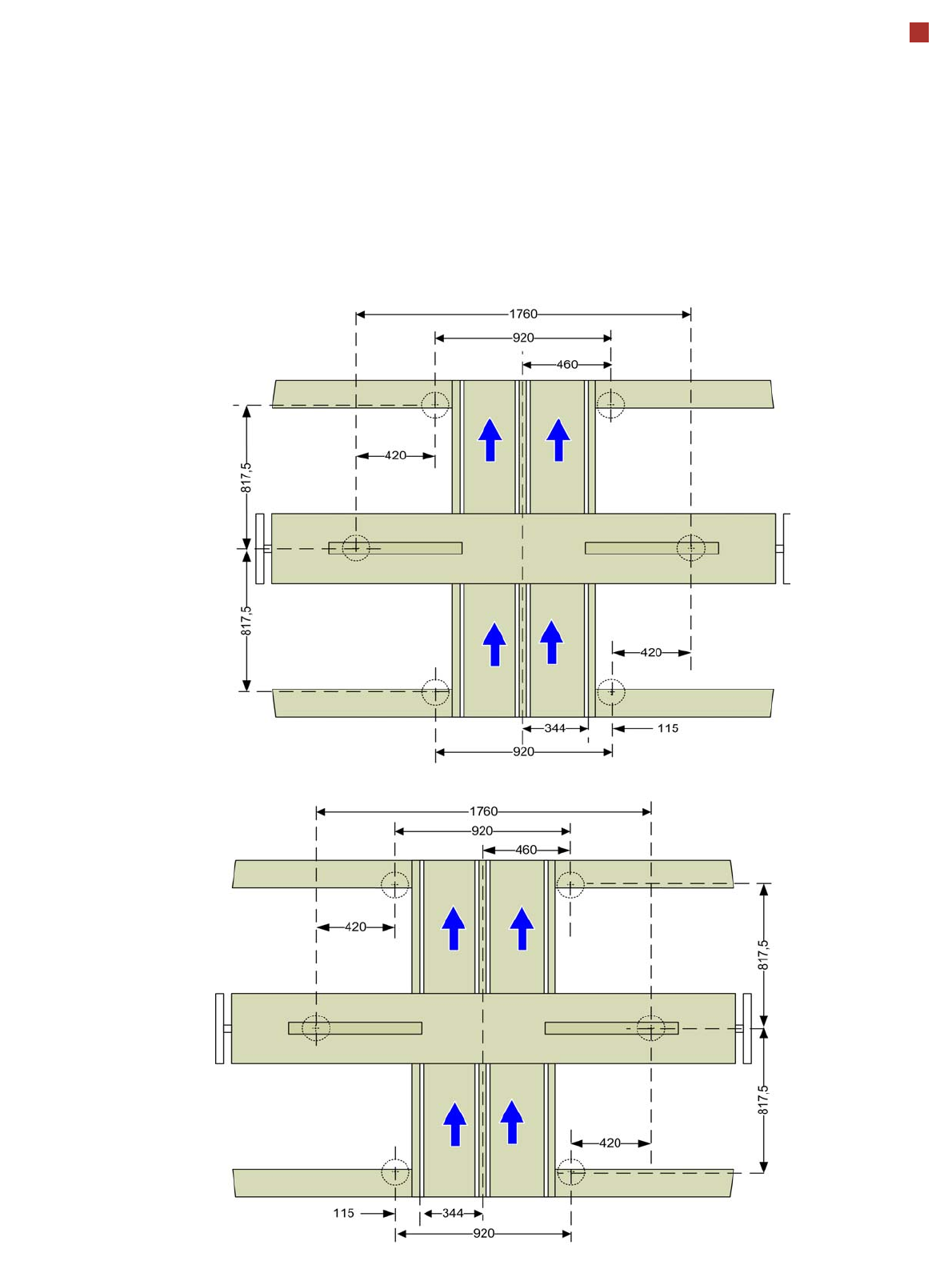

Spacing distances for the flexible dual conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at maxi-
mum left position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 24.
All dimensions in millimeters.
60
Technical data

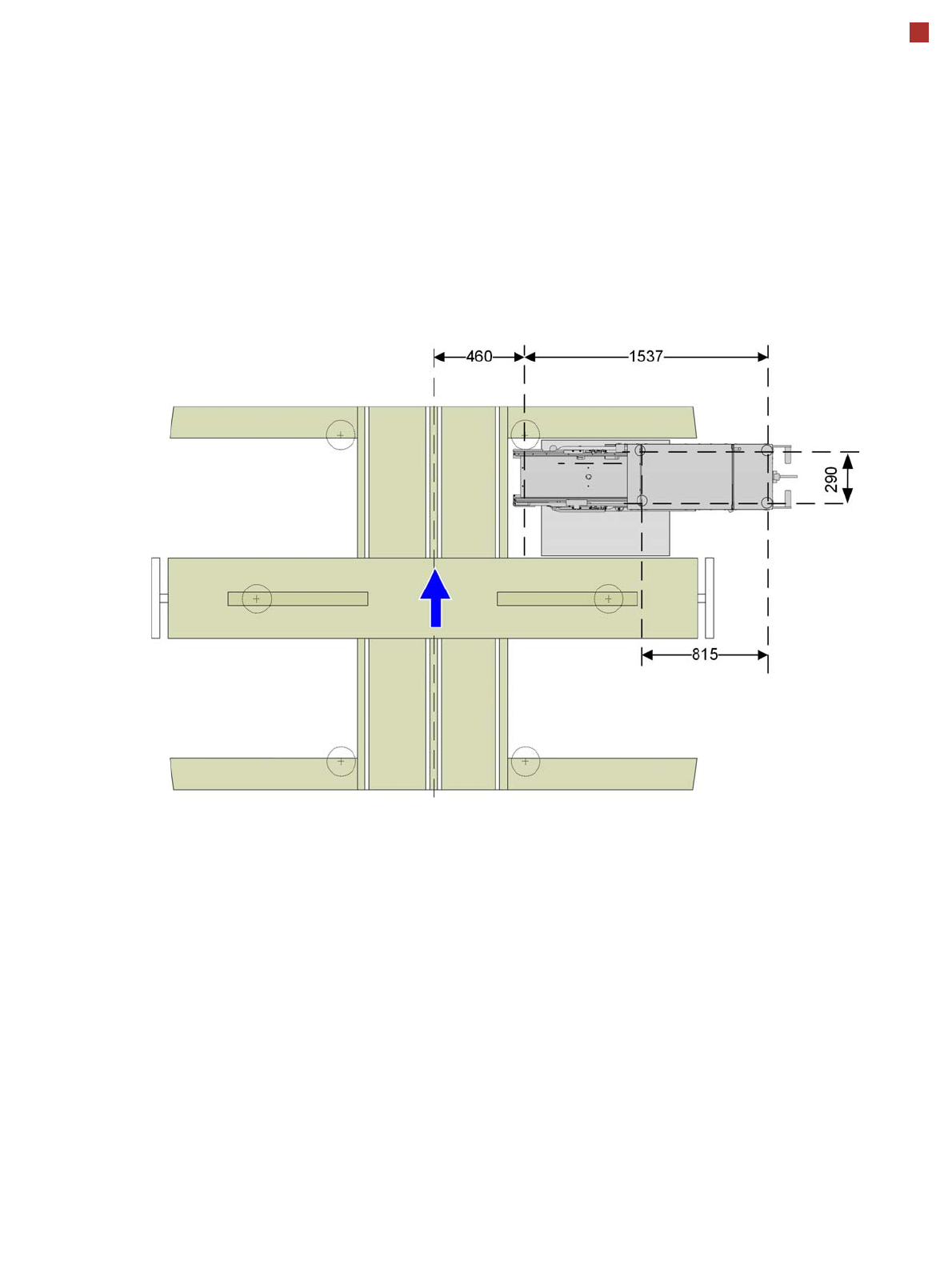

Spacing distances with MTC
All dimensions in millimeters.
61
Technical data

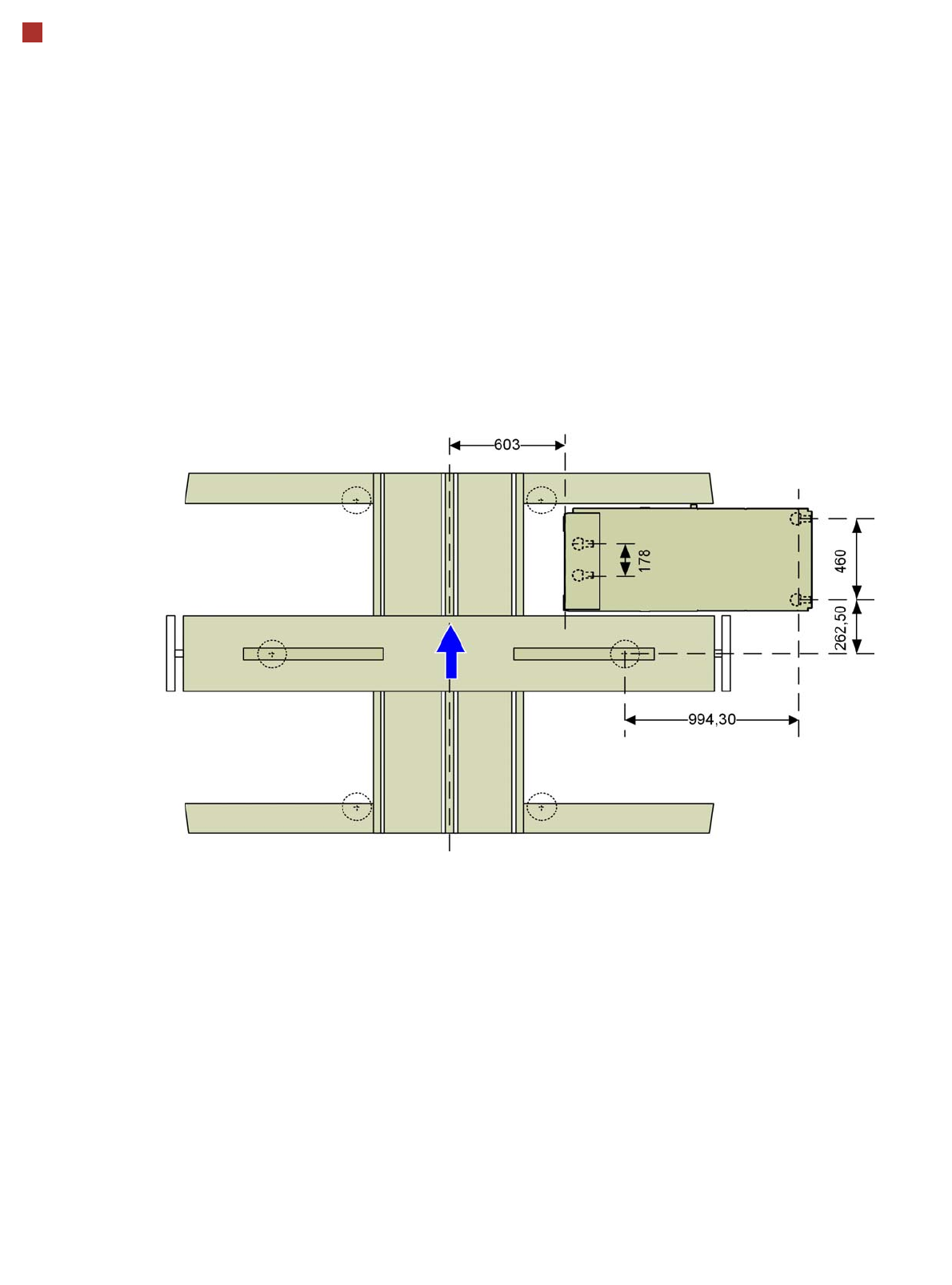

Spacing distances with WPC
All dimensions in millimeters.
