22 Board conveyor Technical data Single conveyo r Flexible du al con- veyor Dual conveyor in sin- gle conveyor mode Board dimensions (length x width) a a) Please observe the max. length of the board of 410 mm when using …

Board conveyor

Single and flexible dual conveyor

Single conveyor

When using a single con-

veyor, boards are moved

behind one another, along a

conveyor lane and into the

placement machine, where

they are placed. This con-

veyor variant is particularly

suitable for very wide boards.

Flexible dual conveyor

To keep the range of PCBs to

be processed as wide as

possible - whilst maintaining

maximum productivity - the

flexible SIPLACE dual con-

veyor allows you to choose

between single conveyor

mode and dual conveyor

mode. In the dual conveyor,

two boards are moved into

the placement machine and

placed either at the same

time (synchronous mode) or

alternatively (asynchronous

mode). This makes it possi-

ble to process the top and

bottom sides of a board in

one line.

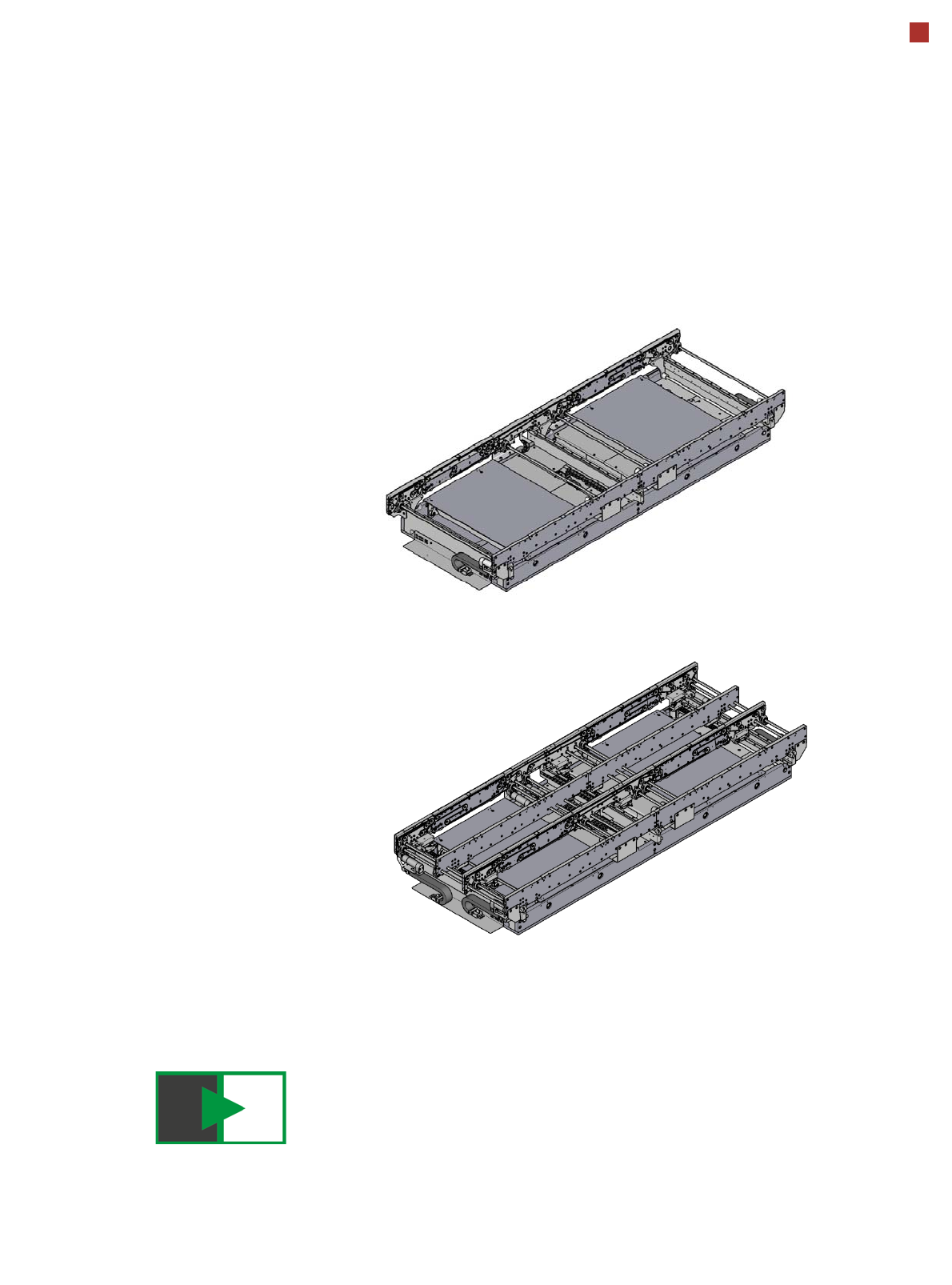

Single conveyor

Flexible dual conveyor

IPC-Hermes-9852

A protocol for advanced development of Industry 4.0 in electronics production

The Hermes Standard, also published as IPC-HERMES-9852, is a non-proprietary open protocol,

based on TCP / IP and XML. This boosts the exchange of PCB-relevant data between the various

machines in the electronics production lines. The Hermes Standard was initiated, developed and

established and is still managed by a group of leading equipment manufacturers, who share their

know-how to achieve a significant step towards advanced process integration. It has been recognized

by IPC as the next generation solution for IPC-SMEMA-9851, normally known as "SMEMA standard".

The founding and defining body The Hermes Standard Initiative is available to all equipment providers

wanting to actively participate in using the benefits of Industry 4.0 for their customers.

Board conveyor

Technical data

Single conveyor Flexible dual con-

veyor

Dual conveyor in sin-

gle conveyor mode

Board dimensions

(length x width)

a) Please observe the max. length of the board of 410 mm when using Smart Pin Support.

X2 S / X3 S / X4 S - standard 50 mm x 50 mm to

450 mm x 560 mm

50 mm x 50 mm to

450 mm x 320 mm

50 mm x 50 mm to

450mm x 560mm

X2 S / X3 S / X4 S - long board

b) With input/output conveyor only

50 mm x 50 mm to

850 mm x 560 mm

50 mm x 50 mm to

850 mm x 320 mm

50 mm x 50 mm to

850mm x 560mm

X4i S - standard

c) I-PLacement and alternating placement mode are possible with board lengths up to 380 mm. Only alternating place-

ment mode is possible for boards longer than 380 mm.

50 mm x 50 mm to

380 mm x 560 mm

50 mm x 50 mm to

450 mm x 300 mm

50 mm x 50 mm to

450mm x 510mm

50 mm x 50 mm to

450 mm x 510 mm

50 mm x 50 mm to

380 mm x 320 mm

X4i S - long board

50 mm x 50 mm to

610 mm x 510 mm

50 mm x 50 mm to

610 mm x 300 mm

50 mm x 50 mm to

610mm x 510mm

Stationary conveyor side Right or left Right, left or outer

Automatic electrical width adjust-

ment

Standard

PCB thickness

Standard: 0.3 mm to 4.5 mm

PCB warpage See page 25

PCB weight

Standard

d) The board weight value refers to the weight of the board plus the weight of the components.

Max. 3.0 kg

e) Boards up to a weight of 10kg on request.

Max. 2.0 kg Max. 2.0 kg

Clearance on PCB underside 25 mm

PCB conveyor height

Option:

Standard:

SMEMA option:

900 mm

930 mm

950 mm

Type of interface SMEMA or IPC-HERMES-9852

Component-free PCB handling

edge

3 mm

PCB changeover time

Single conveyor

Dual conveyor

f) 0 seconds in asynchronous mode, otherwise 1.5 seconds.

< 1.5 seconds

0 seconds

Important information for machines in combination with SIPLACE X-Series:

When setting up a machine (S; F-, HS-, HF-, X- or D-Series) next to a SIPLACE X-Series, be aware that there is limited room

between the two machines. In these cases, use suitable conveyor extensions to create room of 0.5m for the operator between the

two machines.

To achieve top placement performance, fit the first machine in a SIPLACE X-Series line with an input conveyor extension and the

last machine in the line with an output conveyor extension.

Board conveyor

Placement modes

Synchronous mode

In synchronous mode, two

boards of the same size are

transported into the place-

ment position at the same

time. They are processed as

a common panel. When

using products with greatly

differing placement content,

common optimization

increases the performance of

the whole content on both

boards.

Asynchronous mode

In asynchronous mode, only

one board on a conveyor

lane is processed. At the

same time, another board on

the second conveyor lane is

moved into the placement

position. This saves the full

conveying time of one board,

thus considerably increasing

performance, particularly for

boards with a short cycle

time.

I-Placement

The SIPLACE line achieves

top placement performance

with the use of I-Placement.

In this mode, the two heads

work simultaneously and

populate the PCB on the cor-

responding conveyor side,

totally independently of one

another. Short distances fur-

ther increase the output.

Borrow Performance

By facilitating simultaneous

production of two boards with

different contents in one line,

Borrow Performance is the

ideal addition to I-Placement.

In placement machines with

Borrow Performance, both

heads place the same board

in alternation The board in

the other conveyor lane is

simply transported through

the system. This makes it

possible to achieve the same

cycle time for both boards,

despite the different place-

ment contents.
