MODEL TCM-X200 0103-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 99 H-4 30 2 630 000 0252 SE NS OR ,PH OT O 2 BPH79,BPH80 696H--1 10-302 30 3 630 000 0269 SEN SOR ,P H OTO(CONNECTOR) 1 696H--1 10-303 304 41 1 08…
MODEL TCM-X200
0203-002
98
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

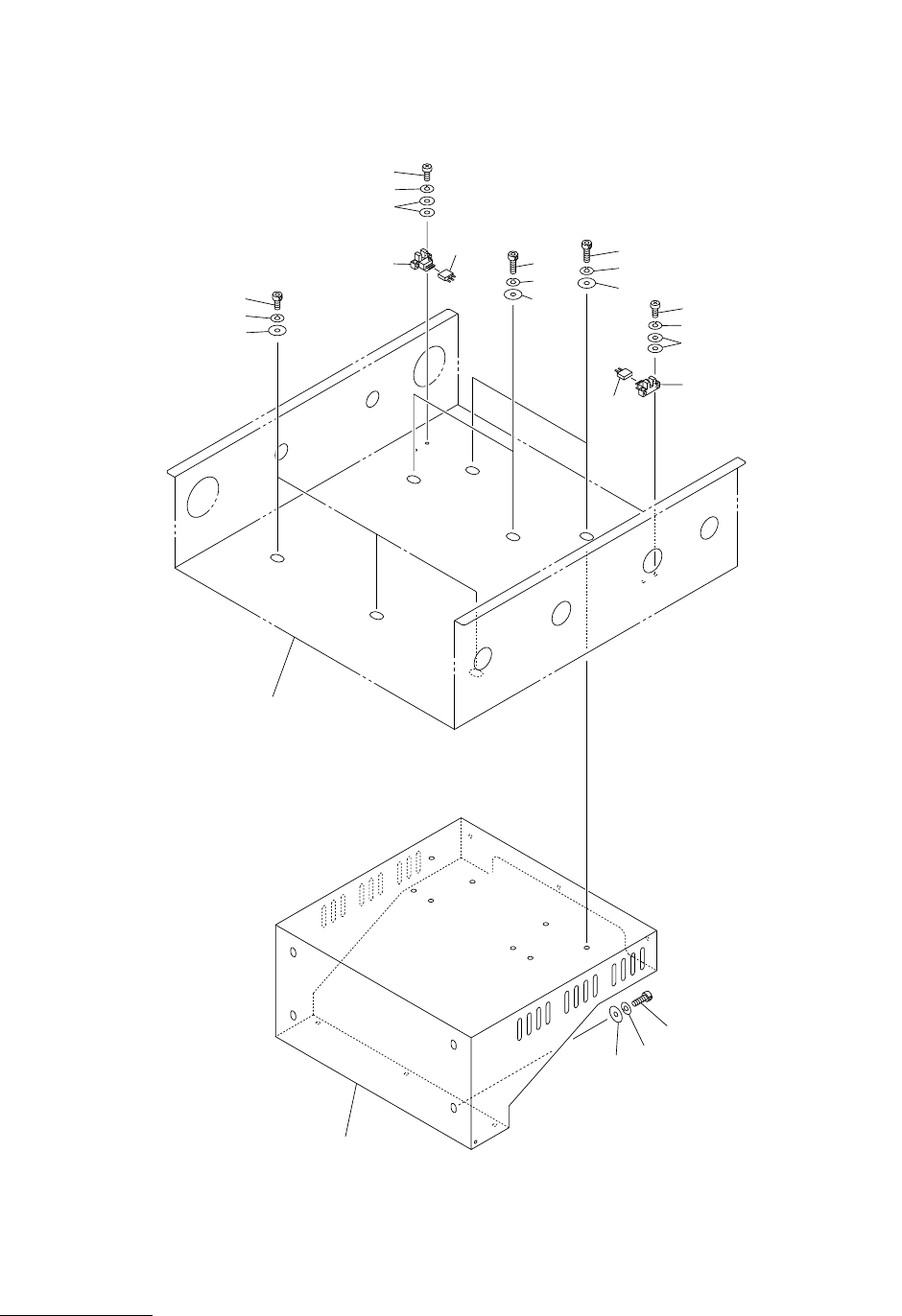

Fig. H-4 ࠦࡦࡌࠕࡦࠨ Conveyor Width Limit Sensor
305
306
304
311
312
310
311
313
310
305
306
304
302
See Fig.H-1
Key No.1
311
313
310
302
314
316
317
319
318
303
Fig.H-4
TCM-X200-002
4797A-002
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
99
H-4
302 630 000 0252 SENSOR,PHOTO 2 BPH79,BPH80 696H--110-302
303 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-303
304 411 088 9005 WASHER F 3X6X0.5 8 696H--110-304
305 411 086 4408 WASHER SPR 3 4 696H--110-305
306 411 040 7803 SCR PAN 3X12 4 696H--110-306
310 630 001 0237 WASHER 7 696H--110-310
311 411 141 3001 WASHER SPR 6 7 696H--110-311
312 630 000 7886 BOLT,HEX-SCT 3 696H--110-312
313 630 000 7893 BOLT,HEX-SCT 4 696H--110-313
314 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-314
316 630 085 6354 BRACKET(TB) 1 696H--110-316
317 630 001 0220 WASHER 4 696H--110-317
318 630 000 7770 BOLT,HEX-SCT 4 696H--110-318
319 411 141 6705 WASHER SPR 5 4 696H--110-319
MODEL TCM-X200
0103-001
100
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

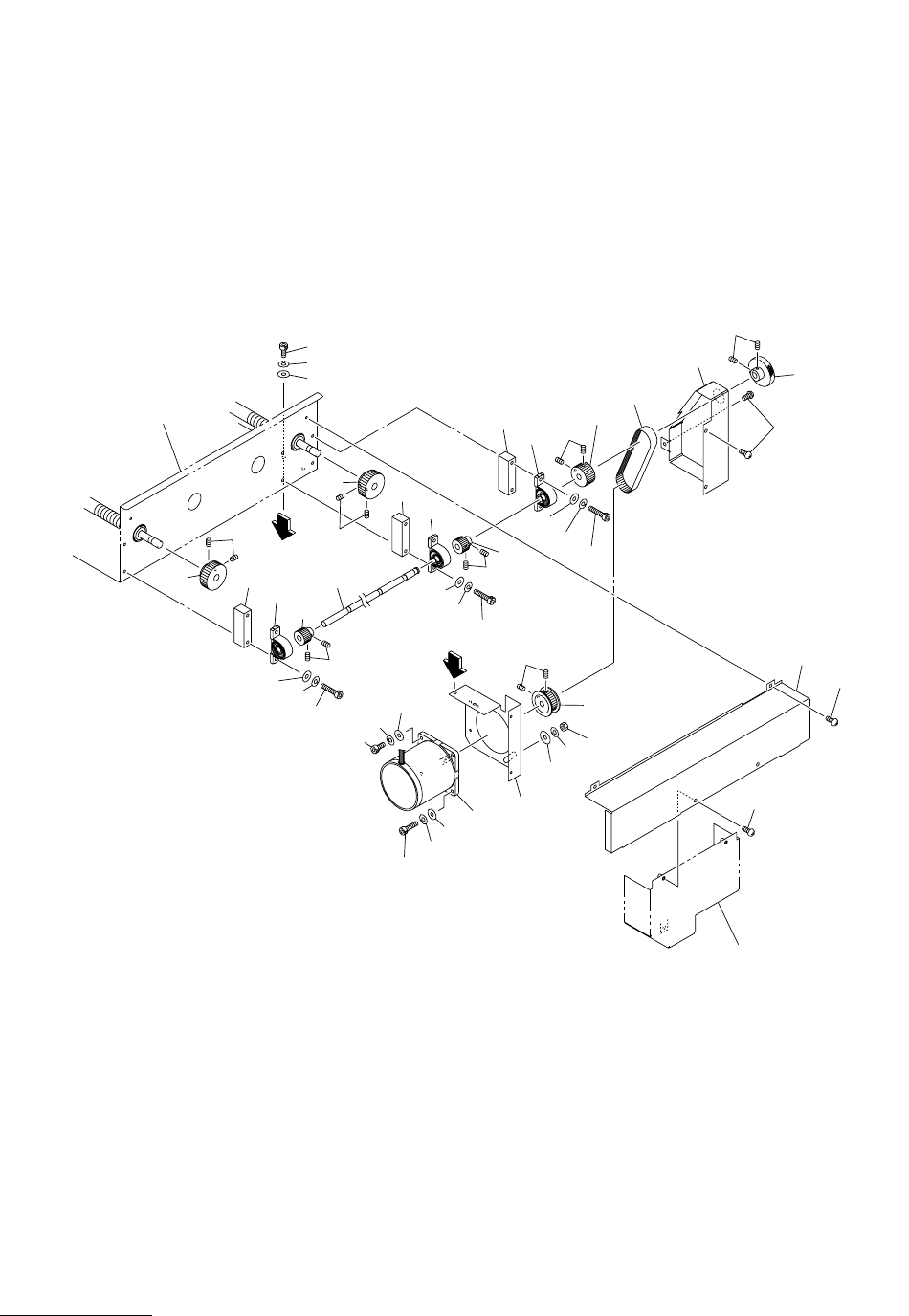

Fig. H-5 ࠦࡦࡌࠕ㚟േㇱ Conveyor Width Control Driver
402
407
406
404
405
403
402
401
416
415
414
407
406
407
406
405
404
408
409
410
408
412
411
427
428
431
430
429
409
410
408
409
410
426
422
413
433
See Fig.H-7
Key No.618
See Fig.H-1
Key No.1
433
432
423
424
421
419
418
417
425
418
419
420
401
A
A
Fig.H-5
TCM-X200
4797A
