MODEL TCM-X200 021 1-003 270 ᯏ᪾ᑫࠅ MISCELLANEOUS P ARTS-1 Fig. RL-5 F ゲࡕ࠲࠼ࠗࡃ F Axis Motor Drivers Fig.RL-5 TCM-X200-003 4797A-003 493 495 477 492 478 467 469 464 465 . 455 456 . 455 457 . 464 465 . 464 491 492 459 454…
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
269
RL-4
351 630 055 2201 UNIT,POWER 1 G11,P30E-24-N 696RL-110-351
352 630 089 2307 COVER 1 696RL-110-352
353 630 091 5631 P.C.B,MOUNT 1 UA53*001*0000 696RL-110-353
354 630 004 6281 CONNECTOR 1 X114 696RL-110-354
355 630 000 3963 CONNECTOR 2 X111,X113 696RL-110-355
356 407 005 1306 DIODE DS135C 1 696RL-110-356
357 423 022 8005 FUSE 250V 1A 1 F001 696RL-110-357
358 630 083 5458 TERMINAL 2 696RL-110-358
359 630 083 5502 ACCESSORY,WIRING 1 696RL-110-359
360 630 083 5540 ACCESSORY,WIRING 1 696RL-110-360
361 630 083 5496 FUSE HOLDER 1 696RL-110-361
362 630 051 1512 ACCESSORY,WIRING 1 696RL-110-362
363 630 049 3672 BRACKET,WIRING 2 696RL-110-363
364 630 092 6743 PLATE 1 696RL-110-364
365 630 113 2594 NAME PLATE,PARTS 1 696RL-110-365
367 630 089 6473 RAIL,WIRING 1 696RL-110-367
370 630 093 9408 PLATE 1 696RL-110-370
371 630 092 5982 BOX 1 696RL-110-371
372 630 094 4914 BOX 1 696RL-110-372
373 630 088 7952 BRACKET 2 696RL-110-373
383 630 000 7633 BOLT,HEX-SCT 2 696RL-110-383
384 411 174 6604 SCR PAN+SW+W 5X10 1 696RL-110-384
385 411 034 7208 SCR FLT 3X8 2 696RL-110-385
386 411 141 2905 WASHER SPR 4 2 696RL-110-386
387 630 000 7756 BOLT,HEX-SCT 3 696RL-110-387
388 411 141 6705 WASHER SPR 5 3 696RL-110-388
389 411 141 4107 WASHER V 5X10X1 3 696RL-110-389
390 411 042 3001 SCR PAN 4X10 2 696RL-110-390
391 411 008 1706 WASHER SPR 4 2 696RL-110-391
392 411 119 2104 WASHER V 4X9X0.8 2 696RL-110-392
393 411 140 8007 SCR TRS 5X6 6 696RL-110-393
394 411 051 1708 SCR TRS 4X6 8 696RL-110-394
395 411 141 4008 WASHER V 4X9X0.8 2 696RL-110-395
396 411 162 1604 SCR PAN 3X20 4 696RL-110-396
397 411 119 1909 WASHER V 3X7X0.5 8 696RL-110-397
398 411 086 4408 WASHER SPR 3 4 696RL-110-398
399 411 002 2600 SCR FLT 3X6 9 696RL-110-399
MODEL TCM-X200
0211-003
270
ᯏ᪾ᑫࠅ MISCELLANEOUS PARTS-1

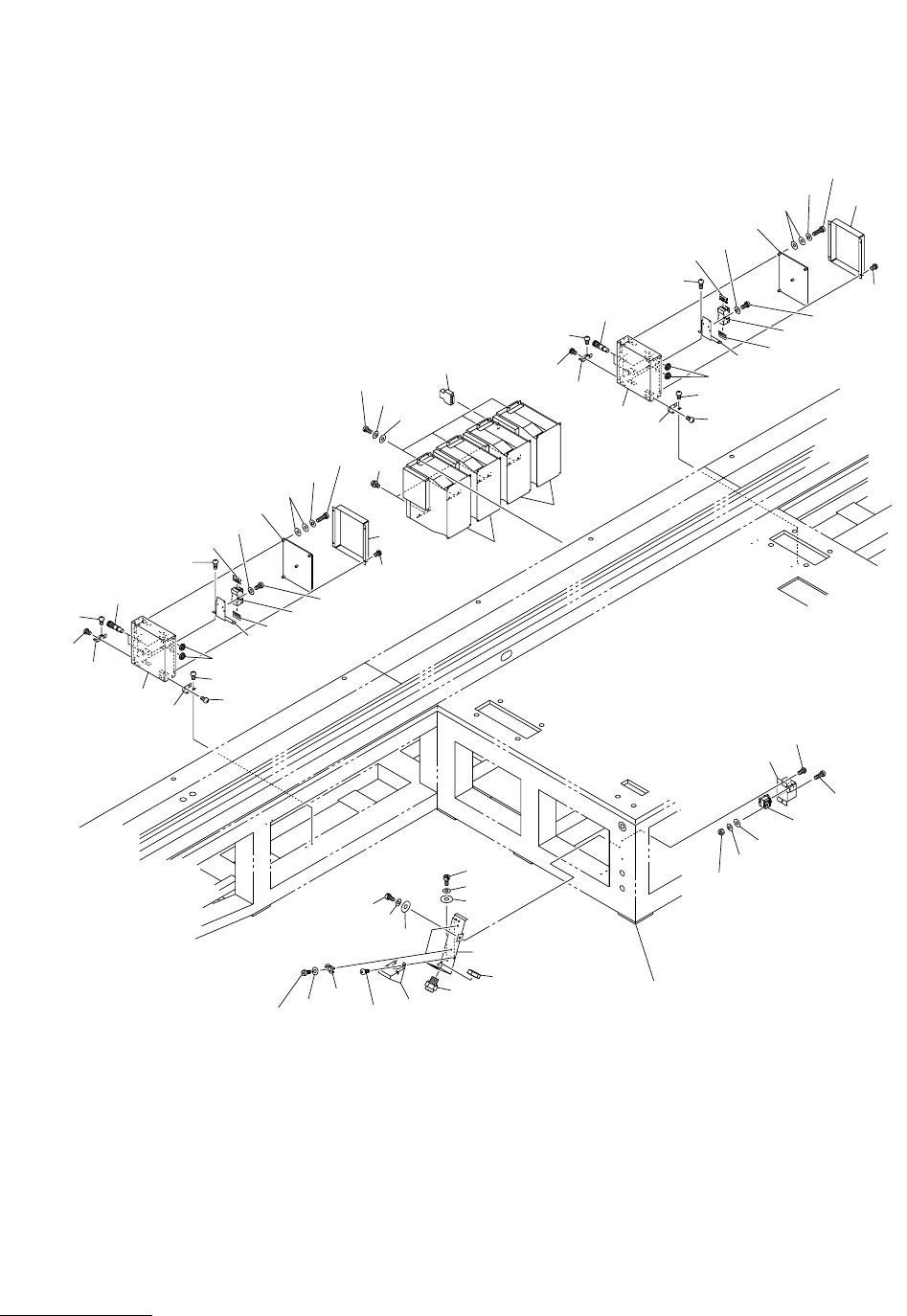

Fig. RL-5 F ゲࡕ࠲࠼ࠗࡃ F Axis Motor Drivers
Fig.RL-5
TCM-X200-003
4797A-003
493
495
477
492
478
467
469
464
465
.
455
456
.
455
457
.
464
465
.
464
491
492
459
454
459
492
491
466
453
453
492
458
477
478
467
See Fig.L-1
Key No.9
469
464
491
492
459
454
459
492
491
493
487
488
489
490
495
494
468
491
458
494
468
491
468
468
483
484
486
462
461
460
482
480
479
488
489
463
491
470
498
451
494
495
497
452
496
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
271
RL-5
451 630 000 4243 SOCKET 1 696RL-110-451
452 630 092 5975 BOX 1 696RL-110-452
453 630 116 8388 UNIT,DRIVER 4 ASMD2(F1),ASMD3(F2),ASMD4(F3),
ASMD5(F4),#SGDH-50AE-RY342
696RL-110-453
454 630 094 4914 BOX 2 696RL-110-454
455 630 090 1078 P.C.B,MOUNT(P.C.B.) 2 UA54*001*0000 696RL-110-455
456 630 087 7793 PROGRAM ROM 1 #CPLD CZR12E2 696RL-110-456
457 630 087 7809 PROGRAM ROM 1 #CPLD CZR34 696RL-110-457
458 630 098 4583 COVER 2 696RL-110-458
459 630 093 9422 BRACKET 4 696RL-110-459
460 630 087 4273 ACCESSORY,WIRING 1 696RL-110-460
461 630 111 7607 BRACKET 1 696RL-110-461
462 630 088 4425 ACCESSORY,WIRING 1 696RL-110-462
463 630 048 3833 MECH PARTS(MOUNTING BASES 2 696RL-110-463
464 630 093 1785 FUSE HOLDER 4 696RL-110-464
465 423 022 8104 FUSE 250V 2A 4 F004,F005,F011,F012
696RL-110-465
466 630 086 8340 RESISTOR,SPECIAL 1 696RL-110-466
467 630 085 4152 RELAY 2 K58,K59 696RL-110-467
468 630 085 8853 WIRE PARTS 4 696RL-110-468
469 630 095 6641 PLATE 2 696RL-110-469
470 630 112 2663 COVER 1 696RL-110-470
477 411 113 2001 SCR PAN 4X14 4 696RL-110-477
478 411 008 1706 WASHER SPR 4 4 696RL-110-478
479 630 000 7756 BOLT,HEX-SCT 1 696RL-110-479
480 411 141 6705 WASHER SPR 5 1 696RL-110-480
482 630 001 0220 WASHER 1 696RL-110-482
483 411 140 3804 BOLT HEX-SCT 4X10 2 696RL-110-483
484 411 141 2905 WASHER SPR 4 2 696RL-110-484
486 630 001 0213 WASHER 2 696RL-110-486
487 411 114 7807 SCR PAN+SW+W 4X10 4 696RL-110-487
488 411 113 2803 SCR PAN 5X8 18 696RL-110-488
489 411 008 2109 WASHER SPR 5 18 696RL-110-489
490 411 088 1702 WASHER V 5X10X1 16 696RL-110-490
491 411 140 8007 SCR TRS 5X6 14 696RL-110-491
492 411 051 1708 SCR TRS 4X6 16 696RL-110-492
493 411 162 1604 SCR PAN 3X20 10 696RL-110-493
494 411 119 1909 WASHER V 3X7X0.5 22 696RL-110-494
495 411 086 4408 WASHER SPR 3 12 696RL-110-495
496 411 113 9109 SCR TRS 5X10 2 696RL-110-496
497 411 054 6809 NUT HEX 3 2 696RL-110-497
498 411 113 0700 SCR PAN 3X16 2 696RL-110-498
