MODEL TCM-X200 0203-001 288 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-1 ᧄㇱ㧝 Main Body Section-1 Fig.SB-1 55 59 61 60 57 56 58 See Fig.RH-1 Key No.61 See Fig.SB-1 Key No.770 See Fig.RH-1 Key No.51 REC PCB CPU1 PCB LIGHTING CONTROLLER …
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
287
SA-1
51 630 088 3329 NAME PLATE,PARTS 1 696SA-110-051
52 630 098 5382 NAME PLATE,PARTS 1 696SA-110-052
53 630 087 6680 NAME PLATE,PARTS 1 696SA-110-053
54 630 106 6370 NAME PLATE,PARTS 1 696SA-110-054
55 630 094 4648 NAME PLATE,PARTS 1 696SA-110-055
56 630 097 7936 NAME PLATE,PARTS 1 696SA-110-056
57 630 097 8094 NAME PLATE,PARTS 1 696SA-110-057
58 630 110 7189 NAME PLATE,PARTS 1 696SA-110-058
MODEL TCM-X200
0203-001
288

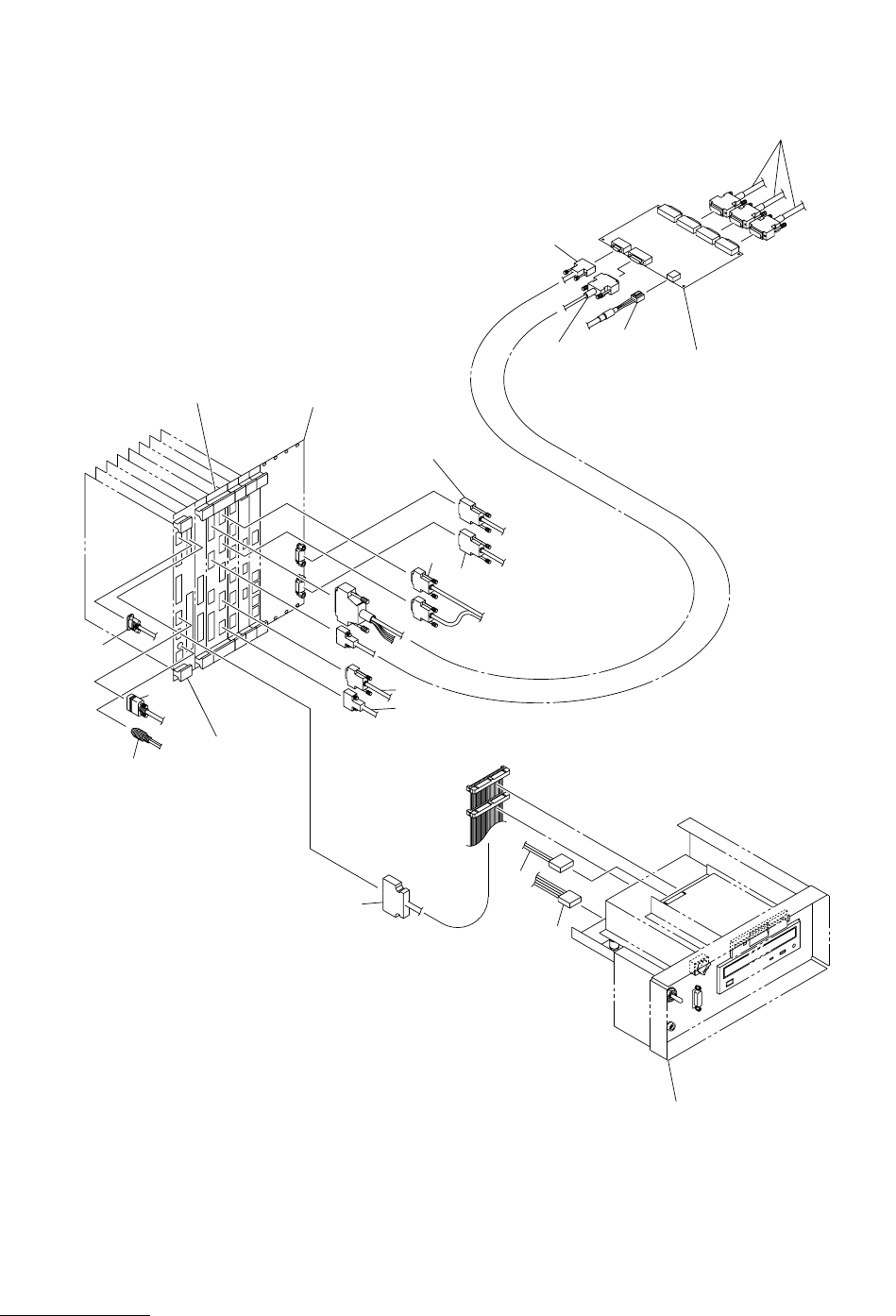

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-1 ᧄㇱ㧝 Main Body Section-1
Fig.SB-1
55
59
61
60
57
56
58
See Fig.RH-1
Key No.61
See Fig.SB-1
Key No.770
See Fig.RH-1
Key No.51
REC PCB
CPU1 PCB
LIGHTING CONTROLLER
See Fig.EB-8
Key No.752
TCM-X200-002
4797A-002
53
52
51
63
62
See Fig.RK-1
Key No.56
See Fig.RH-1
Key No.53
66
54
MODEL TCM-X200
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
289
SB-1
51 630 086 8722 CORD 1 XCN7- 696SB-110-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 696SB-110-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 696SB-110-053
54 630 088 7877 CORD (SCJI 1.5M) 1 XCN3- 696SB-110-054
55 630 085 3414 CORD 1 XCN28/29- 696SB-110-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 696SB-110-056
57 630 097 0661 CORD(SIO) 1 XCN26- 696SB-110-057
58 630 097 0685 CORD(MON) 1 XCN32- 696SB-110-058
59 630 092 9874 CORD(LIGHT) 3 CN1-,CN2-,CN3-, 696SB-110-059
60 630 106 4390 CORD (REC-PIO 2M) 1 XCN25- 696SB-110-060
66 630 109 3413 ASSY,CORD (X200SB105) 1 XCN35-XCN80 696SB-110-066
