MODEL TCM-X200 0203-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 219 MB-3 20 1 630 095 0700 BRAC KE T 1 696MB-1 10-201 20 2 630 095 0717 BRAC KE T 1 696MB-1 10-202 20 3 630 097 4065 BRAC KE T 1 696MB-1 10-203 20…
MODEL TCM-X200
0203-002
218

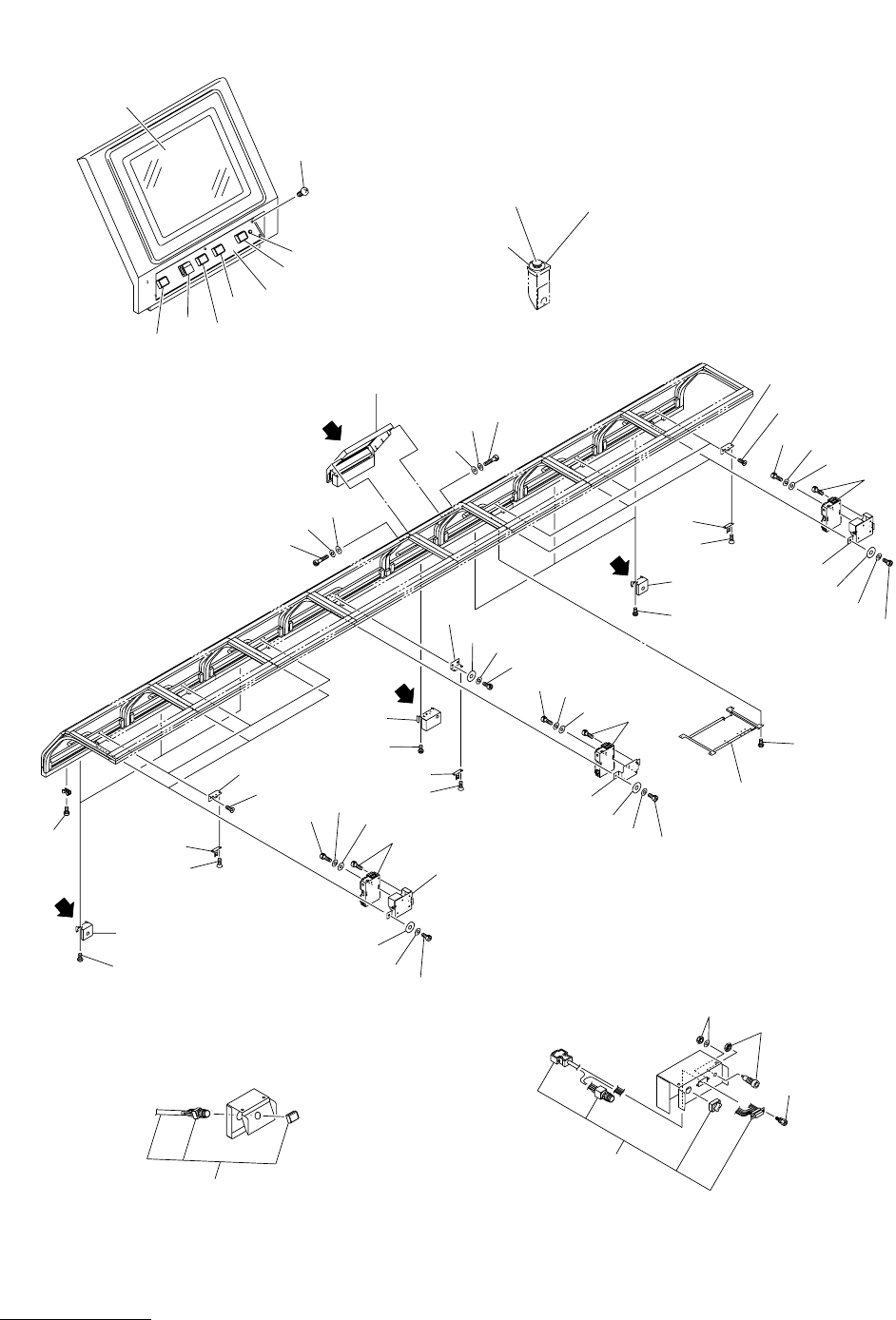

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-3 ࡈࠖ࠳ No. ࡞ Feeder No. Rail
Fig.MB-3
TCM-X200-002
4797A-002
236
210
239
230
230
208
232
235
236
201
237
235
232
235
232
230
236
205
231
235
236
231
235
236
237
204
236
235
232
235
232
235
232
236
206
235
232
236
211
235
232
236
204
237
235
236
221
239
222
208
230
236
235
231
202
232
235
237
219
216
232
235
237
218
236
235
224
236
235
232
225
209
232
235
236
235
232
237
237
235
233
237
235
233
235
232
236
235
232
237
235
232
236
See Fig.MB-1
Key No.7
See Fig.MB-1
Key No.1
See Fig.MB-1
Key No.5
See Fig.MB-1
Key No.4
See Fig.MB-1
Key No.2
See Fig.MB-1
Key No.7
235
232
236
235
232
213
236
235
232
232
235
236
203
212
236
235
232
232
235
236
214
213
236
235
232
237
236
235
232
232
236
235
232
232
235
237
217
232
209
235
236
235
232
236
237
235
232
235
231
232
235
232
232
235
236
214
215
220
236
235
232
231
235
236
231
235
236
236
235
232
236
235
232
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
219
MB-3
201 630 095 0700 BRACKET 1 696MB-110-201
202 630 095 0717 BRACKET 1 696MB-110-202
203 630 097 4065 BRACKET 1 696MB-110-203
204 630 095 8850 BRACKET 8 696MB-110-204
205 630 098 3609 BRACKET(R) 1 696MB-110-205
206 630 098 3616 BRACKET(L) 1 696MB-110-206
208 630 095 0779 BRACKET 4 696MB-110-208
209 630 089 2284 NAME PLATE,INDEX 6 696MB-110-209
210 630 097 0920 PLATE 1 696MB-110-210
211 630 097 0937 PLATE 1 696MB-110-211
212 630 097 4072 BRACKET 1 696MB-110-212
213 630 097 3747 SUPPORT 2 696MB-110-213
214 630 097 3754 SUPPORT 2 696MB-110-214
215 630 097 6748 STAY 1 696MB-110-215
216 630 097 6755 STAY 1 696MB-110-216
217 630 095 0786 BRACKET 1 696MB-110-217
218 630 095 0601 BRACKET 1 696MB-110-218
219 630 095 0618 BRACKET 1 696MB-110-219
220 630 097 3686 BRACKET 1 696MB-110-220
221 630 097 3709 COVER 1 696MB-110-221
222 630 097 3716 COVER 1 696MB-110-222
224 630 095 0632 STAY 1 696MB-110-224
225 630 095 0625 STAY 1 696MB-110-225
230 411 113 9109 SCR TRS 5X10 6 696MB-110-230
231 630 000 7770 BOLT,HEX-SCT 20 696MB-110-231
232 630 000 7763 BOLT,HEX-SCT 88 696MB-110-232
233 630 000 7756 BOLT,HEX-SCT 8 696MB-110-233
235 411 141 6705 WASHER SPR 5 116 696MB-110-235
236 630 001 0220 WASHER 74 696MB-110-236
237 411 141 4107 WASHER V 5X10X1 42 696MB-110-237
239 411 140 8007 SCR TRS 5X6 4 696MB-110-239
MODEL TCM-X200
0211-003
220

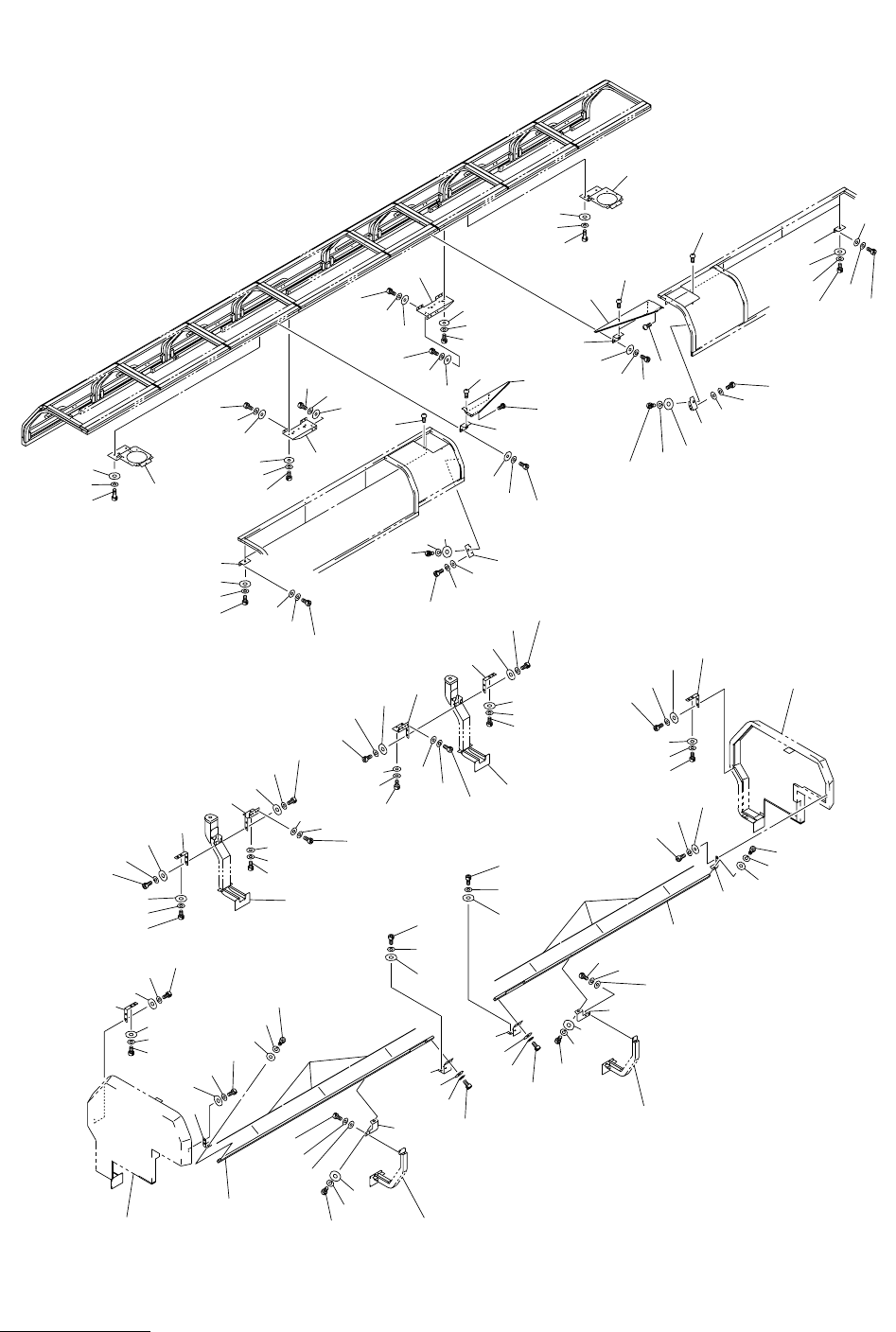

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-6 ᓟ㕙ᠲࡄࡀ࡞ Rear Operation Panel
Fig.MB-6
VIEW "A"
VIEW "B"
501
524
523
522
522
A
B
C
B
512
513
528
523
516
526
516
526
513
512
524
528
523
524
515
511
504
534
527
523
528
520
See Fig.MB-1
Key No.20
506
505
534
504
521
510
531
530
529
515
509
516
526
524
523
528
527
523
528
534
523
524
564
561
560
562
560
527
523
528
VIEW "C"
515
511
TCM-X200-003
4797A-003
565
563
551
552
.
553
.
555
554
555
556
502
533
558
557
.
559
