MODEL TCM-X200 0203-001 298 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-8 ᧄㇱ㧞 Main Body Section-2 Sheet-1 Fig.SB-8 758 See Fig.RL-2 Key No.153 See Fig.SB-1 Key No.66 See Fig.RL-2 Key No.152 Sheet-1 TCM-X200-002 4797A-002 786 784 785 75…
MODEL TCM-X200
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
297
SB-6
551 630 086 8173 CORD 2 696SB-110-551
552 630 086 8180 CORD 1 696SB-110-552
553 630 087 5225 CORD 2 696SB-110-553
554 630 092 3575 ASSY,CORD (X200MOT H) 1 696SB-110-554
MODEL TCM-X200
0203-001
298

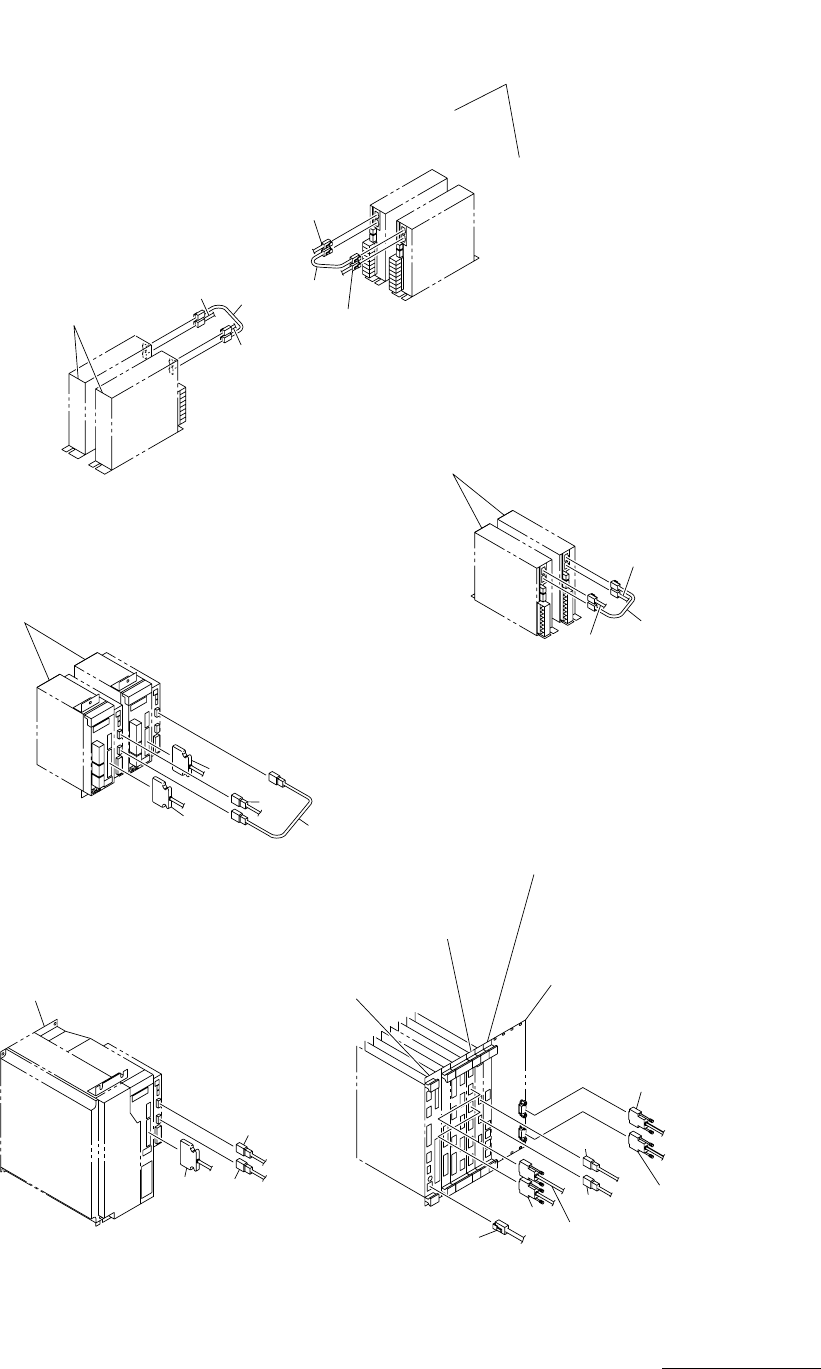

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
Sheet-1
Fig.SB-8
758
See Fig.RL-2
Key No.153
See Fig.SB-1
Key No.66
See Fig.RL-2
Key No.152
Sheet-1
TCM-X200-002
4797A-002
786
784
785
752
See Fig.RL-2
Key No.157
See Fig.RL-2
Key No.155
See Fig.RL-2
Key No.154
ASMD6(X)
ASMD7(Y)
ASMD8(XYTR)
APMD13(TR)
APMD14
(CHW)
APMD19
(BPC)
751
753
759
771
783
780
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
757
756
760
776
777
778
779
MODEL TCM-X200
0211-002
299
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
Sheet-2
Fig.SB-8
Sheet-2
TCM-X200-003
TCM-X100-002
4797A-003
774
See Fig.RH-1
Key No.53
See Fig.RH-1
Key No.55
See Fig.RH-1
Key No.61
See Fig.SB-1
Key No.66
See Fig.RM-2
Key No.157
See Fig.RM-1
Key No.54
770
See Fig.RM-2
Key No.152
See Fig.G-3
Key No.257
See Fig.H-3
Key No.257
791
792
790
755
787
789
788
790
788
786
APMD29
(CY)
APMD22
(L2CV)
APMD28
(CX)
ASMD10
(MZ)
ASMD9
(CZ)
ASMD1(H)
CPU1 PCB
SIO PCB
JAMMC-EB005 PCB
APMD16
(LCVW)
APMD17
(RCVW)
APMD26
(R2CV)
781
782
754
775
753
754
See Fig.RH-1
Key No.52
769
768
760
759
