MODEL TCM-X200 0103-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 119 JC-2 10 4 630 064 5835 P L A T E 1 696JC-1 10-104 10 5 630 032 5287 SE NS OR ,PH OT O 2 BPH85,BPH86 696JC-1 10-105 10 6 630 000 0269 SEN SOR ,…
MODEL TCM-X200
0203-002
118
XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION

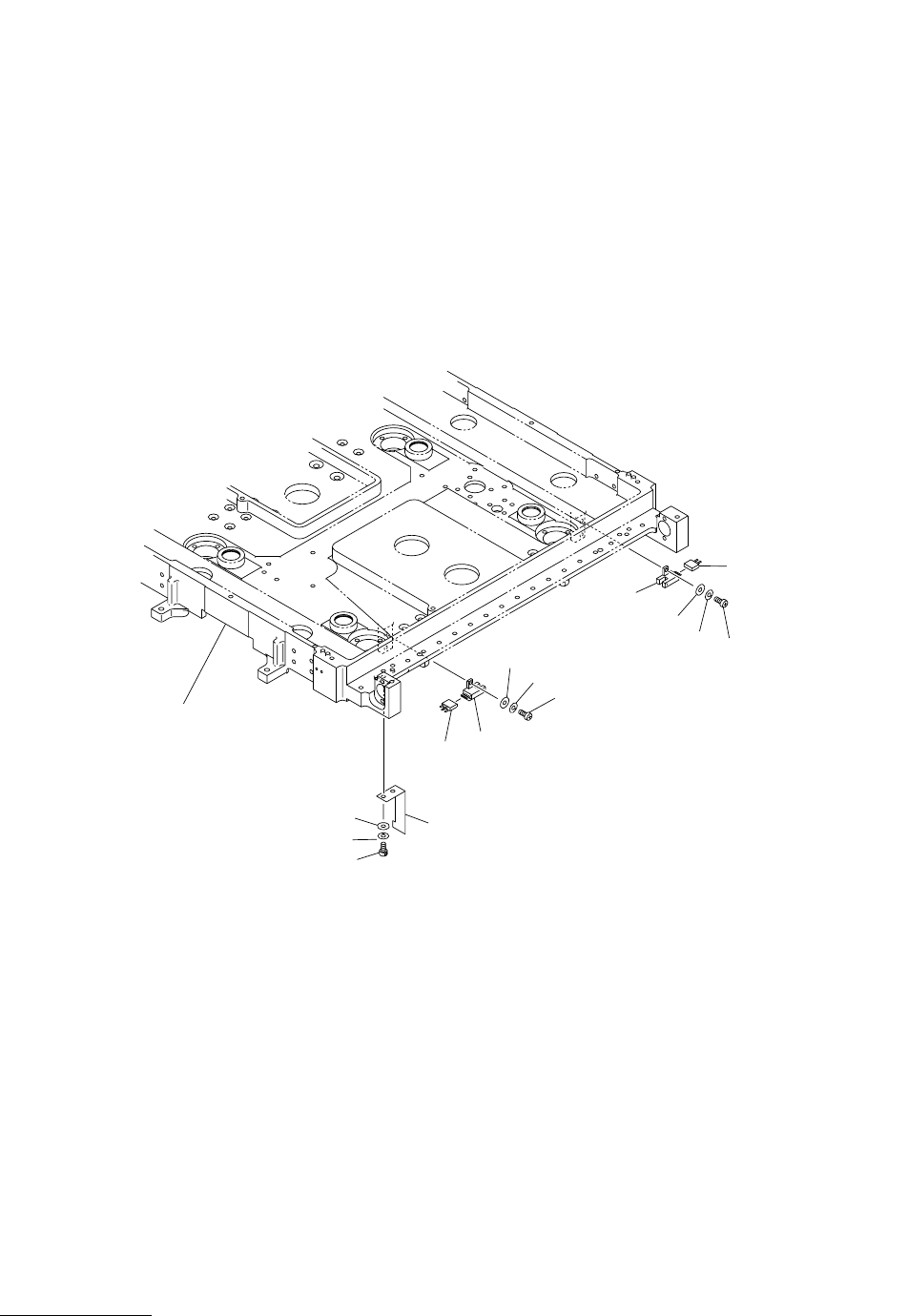

Fig. JC-2 ࡃ࠶ࠢࠕ࠶ࡊਅᬌㇱ Back-up Leveller Detector
105
See Fig.JC-1
Key No.4
113
111
109
106
106
105
113
111
109
104
110
112
107
Fig.JC-2
TCM-X200-002
4797A-002
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
119
JC-2
104 630 064 5835 PLATE 1 696JC-110-104
105 630 032 5287 SENSOR,PHOTO 2 BPH85,BPH86 696JC-110-105
106 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 696JC-110-106
107 630 000 7626 BOLT,HEX-SCT 2 696JC-110-107
109 411 040 6202 SCR PAN 3X10 4 696JC-110-109
110 411 141 2905 WASHER SPR 4 2 696JC-110-110
111 411 086 4408 WASHER SPR 3 4 696JC-110-111
112 411 141 4008 WASHER V 4X9X0.8 2 696JC-110-112
113 411 119 1909 WASHER V 3X7X0.5 4 696JC-110-113
MODEL TCM-X200
0103-001
120
XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION

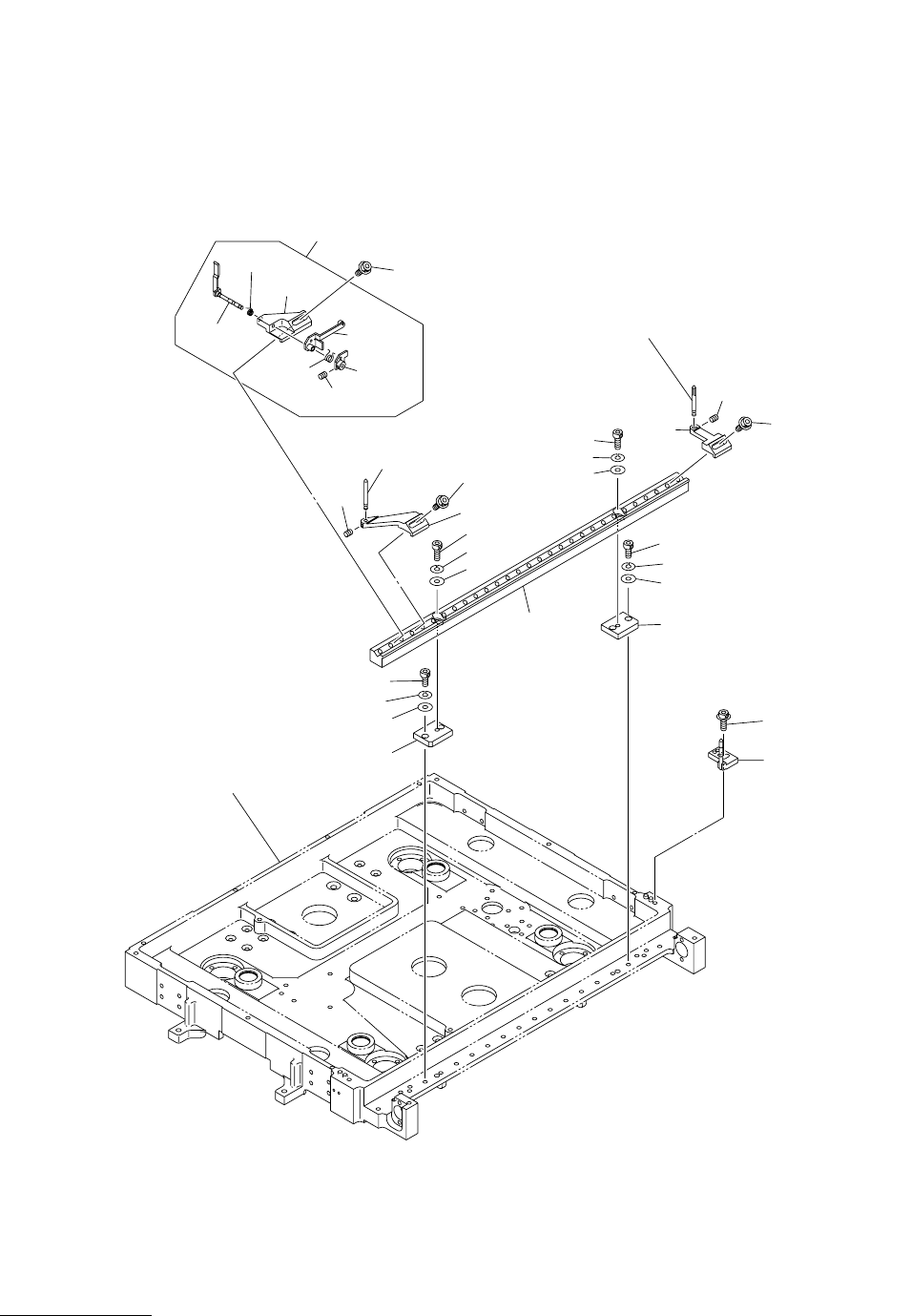

Fig. JC-3 ၮ᧼⟎ㇱ P.C.B. Positioning Section
208
207
207-05
207-07
207-09
207-03
207-08
207-01
207-14
208
POSITIONING PIN P1
(VARIANT)
POSITIONING PIN Q1
(VARIANT)
205
215
208
206
210
212
214
210
212
214
209
211
213
203
209
211
213
202
204
215
208
201
See Fig.JC-1
Key No.4
Fig.JC-3
TCM-X200
