MODEL TCM-X200 021 1-002 132 XY ࠹ࡉ࡞ㇱ XY T ABLE SECTION Fig. JD-5 XY ࠪࡘ࠻ࡌ࡞࠻㚟േㇱ XY Chute Belt Driver Fig.JD-5 TCM-X200-002 4797A-002 435 422 425 402 408 436 420 407 407 413 41 1 412 429 422 430 420 437 437 420 420 414 42…
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
131
JD-4
301 630 064 5811 PLATE 1 696JD-110-301
302 630 064 5828 PLATE 1 696JD-110-302
303 630 093 5790 BRACKET 1 696JD-110-303
304 630 093 5806 BRACKET 1 696JD-110-304
305 630 093 5813 BRACKET 2 696JD-110-305
306 630 093 5820 FRAME 1 696JD-110-306
307 630 093 5837 FRAME 1 696JD-110-307
308 630 053 8106 MECH PARTS (STOP PINS) 4 696JD-110-308
309 630 000 7503 BOLT,HEX-SCT 4 696JD-110-309
310 630 000 7510 BOLT,HEX-SCT 8 696JD-110-310
311 630 000 7619 BOLT,HEX-SCT 8 696JD-110-311
312 630 008 1053 SET SCREW 2 696JD-110-312
313 411 141 2806 WASHER SPR 3 12 696JD-110-313
314 411 141 2905 WASHER SPR 4 4 696JD-110-314
315 411 141 3902 WASHER V 3X7X0.5 12 696JD-110-315
317 630 000 7640 BOLT,HEX-SCT 4 696JD-110-317
318 411 141 5906 WASHER F 4X8X0.8 4 696JD-110-318
321 630 061 1434 SHEET 2 696JD-110-321
MODEL TCM-X200
0211-002
132

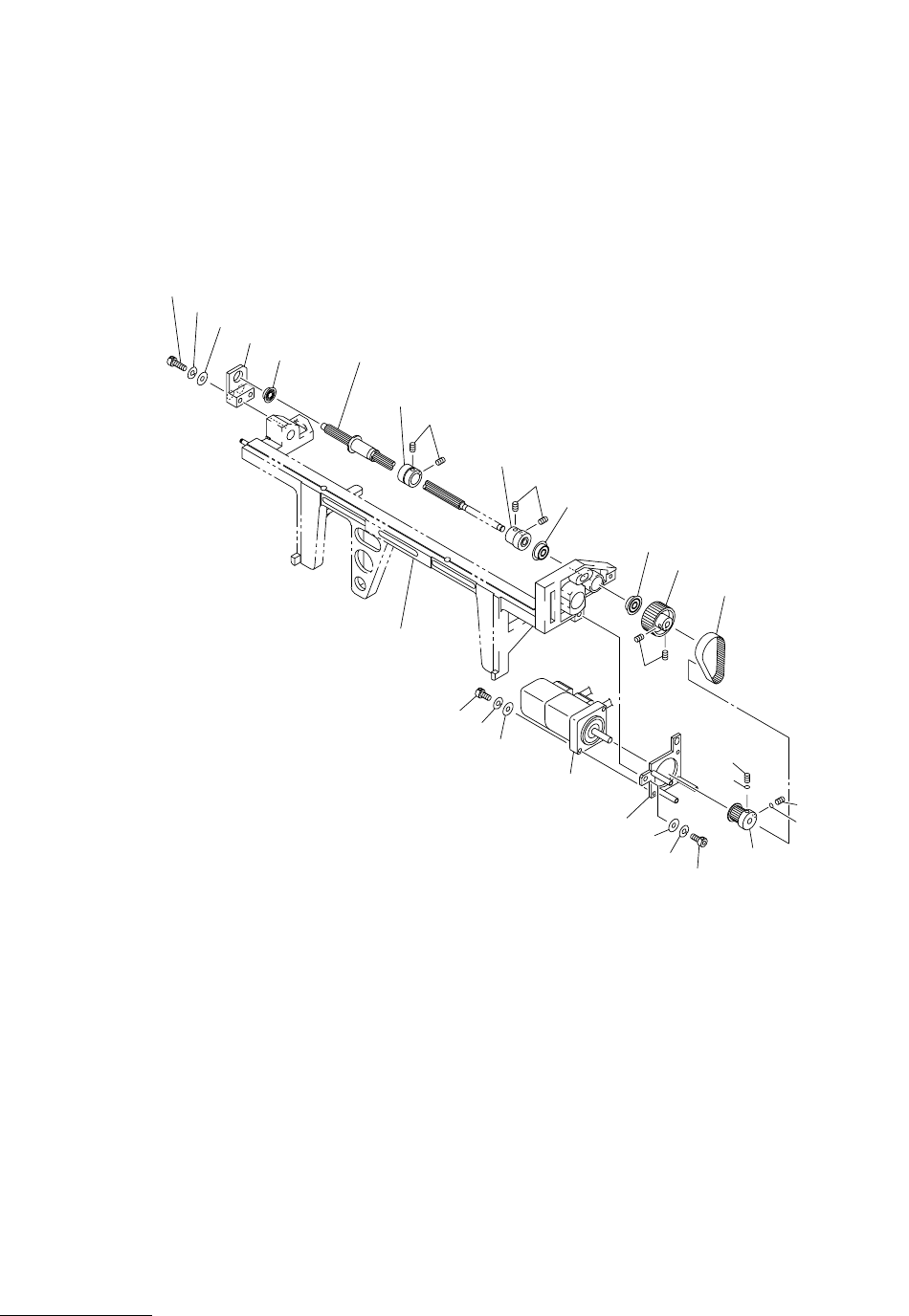

XY ࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. JD-5
XY ࠪࡘ࠻ࡌ࡞࠻㚟േㇱ
XY Chute Belt Driver
Fig.JD-5
TCM-X200-002
4797A-002
435
422
425
402
408
436
420
407
407
413
411
412
429
422
430
420
437
437
420
420
414
426
434
423
428
433
432
See Fig.JD-4
Key No.306
See Fig.JD-2
Key No.109
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
133
JD-5
402 630 093 5844 BLOCK 1 696JD-110-402
407 630 001 1401 BEARING,RADIAL 2 696JD-110-407
408 630 001 1678 BEARING,RADIAL 1 696JD-110-408
411 630 093 7091 BELT,TIMING 1 696JD-110-411
412 630 093 1372 PULLEY,TIMING 1 696JD-110-412
413 630 093 1365 PULLEY,TIMING 1 696JD-110-413
414 630 086 7725 MOTOR,AC-SERVO 1 MSVM8(XYTR),SGMAH-A5AAA21
696JD-110-414
420 630 000 8883 SET SCREW 6 696JD-110-420
422 411 141 2905 WASHER SPR 4 4 696JD-110-422
423 411 141 6705 WASHER SPR 5 2 696JD-110-423
425 411 141 4008 WASHER V 4X9X0.8 2 696JD-110-425
426 411 141 4107 WASHER V 5X10X1 2 696JD-110-426
428 630 000 7756 BOLT,HEX-SCT 2 696JD-110-428
429 630 000 7626 BOLT,HEX-SCT 2 696JD-110-429
430 411 141 5906 WASHER F 4X8X0.8 2 696JD-110-430
432 630 093 5851 PULLEY,TIMING 1 696JD-110-432
433 630 093 5868 PULLEY,TIMING 1 696JD-110-433
434 630 093 1389 BRACKET 1 696JD-110-434
435 630 000 7657 BOLT,HEX-SCT 2 696JD-110-435
436 630 008 1053 SET SCREW 2 696JD-110-436
437 630 061 1434 SHEET 2 696JD-110-437
