MODEL TCM-X200 0203-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 129 JD-2 10 1 630 088 2285 P ULLEY 4 69 6 J D - 1 10 - 1 0 1 10 2 630 093 5745 P ULLEY 2 69 6 J D - 1 10 - 1 0 2 10 3 630 076 2792 ROD 4 696JD-1 1…
MODEL TCM-X200
0211-002
128
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

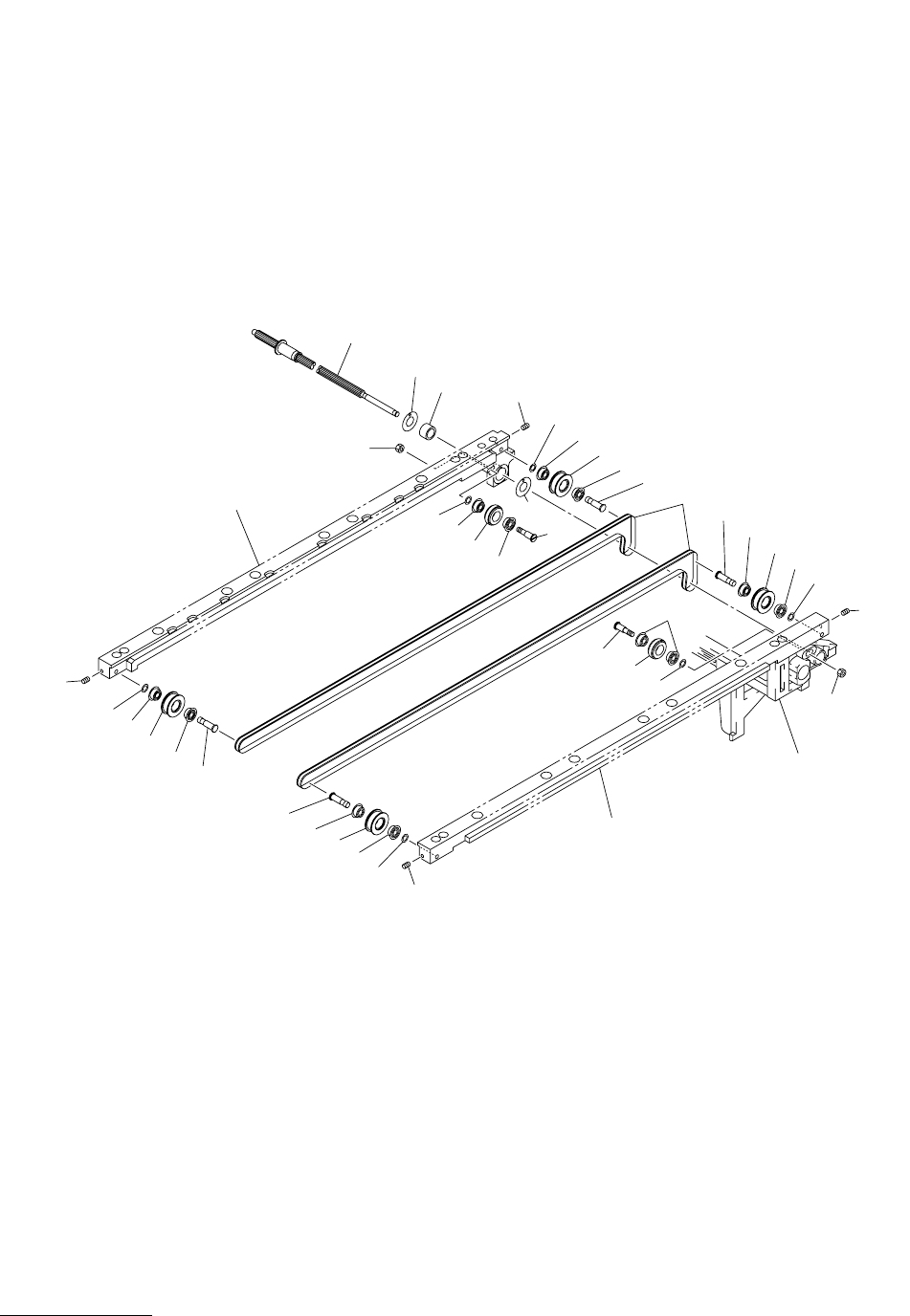

Fig. JD-2 XY ࠪࡘ࠻ࡌ࡞࠻ XY Chute Belt
Fig.JD-2
TCM-X200-002
4797A-002
109
110
108
105
107
101
107
103
103
107
101
107
105
103
107
101
107
105
112
105
112
107
101
107
103
112
113
106
107
110
104
105
107
102
107
104
102
105
112
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JD-4
Key No.306
113
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
JD-2
101 630 088 2285 PULLEY 4 696JD-110-101
102 630 093 5745 PULLEY 2 696JD-110-102
103 630 076 2792 ROD 4 696JD-110-103
104 630 076 2808 ROD 2 696JD-110-104
105 630 076 2815 COLLAR 6 696JD-110-105
106 630 099 0812 BELT,FLAT 2 696JD-110-106
107 630 001 1586 BEARING,RADIAL 12 696JD-110-107
108 630 076 8848 BEARING,RADIAL 1 696JD-110-108
109 630 093 5752 SHAFT,LINEAR 1 696JD-110-109
110 630 051 6166 MECH PARTS(DRYMET WASHER) 2 696JD-110-110
112 630 008 2296 SET SCREW 4 696JD-110-112
113 411 141 0307 NUT HEX 4 2 696JD-110-113
MODEL TCM-X200
0103-001
130
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. JD-4 XY ࠪࡘ࠻ࡌࠬ XY Chute Base
Fig.JD-4
TCM-X200
4797A
310
313
315
303
304
310
313
315
305
318
314
317
321
301
315
313
309
302
308
307
306
See Fig.JC-1
Key No.10
See Fig.JD-7
Key No.622
See Fig.JD-7
Key No.622
See Fig.JD-1
Key No.33
See Fig.JC-1
Key No.10
See Fig.JC-1
Key No.9
See Fig.JC-1
Key No.9
315
311
313
309
308
311
311
311
312
321
305
318
314
317
312
