MODEL TCM-X200 021 1-003 254 ࠪࠤࡦࠬࡄࡀ࡞ㇱ RELA Y SEQUENCE P ANEL SECTION Fig. RG-1 ࠪࠤࡦࠬࡄࡀ࡞ Relay Sequence Panel 72 73 . 65 72 95 96 94 92 97 98 99 58 A C B A B 57 54 58 99 59 98 97 99 52 98 71 86 92 88 90 87 97 55 . …
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
253
RF-1
51 630 109 1488 FUSE HOLDER 3 696RF-110-051
54 630 085 7917 CIRCUIT PROTECTOR 1 Q205 696RF-110-054
55 424 005 9408 FUSE 600V 20A 1 F120 696RF-110-055
56 630 053 8618 EM-CONTACTOR 1 KM2 696RF-110-056
59 630 049 3672 BRACKET,WIRING 3 696RF-110-059
60 630 083 5465 TERMINAL 9 696RF-110-060
61 630 083 5533 ACCESSORY,WIRING 1 696RF-110-061
62 630 072 8408 ACCESSORY,WIRING 1 696RF-110-062
63 630 058 8460 ACCESSORY,WIRING 1 696RF-110-063
64 630 106 1818 PANEL 1 696RF-110-064
65 424 005 9309 FUSE 600V 12A 2 F201,F203 696RF-110-065
66 630 085 7917 CIRCUIT PROTECTOR 1 Q206 696RF-110-066
67 630 083 5564 ACCESSORY,WIRING 1 696RF-110-067
68 630 105 2793 BRACKET 1 696RF-110-068
69 630 071 3343 COVER 6 696RF-110-069
70 630 071 3350 COVER 2 696RF-110-070
71 630 089 6510 RAIL,WIRING 1 696RF-110-071
72 630 048 3833 MECH PARTS(MOUNTING BASES 4 696RF-110-072
73 630 053 8588 EM-CONTACTOR 3 KM3,KM4,KM9 696RF-110-073
74 630 049 3672 BRACKET,WIRING 2 696RF-110-074
75 630 089 6503 RAIL,WIRING 1 696RF-110-075
76 630 100 1357 COMP,CR 3 696RF-110-076
80 630 086 3871 FILTER,NOISE 1 ZNF1 696RF-110-080
88 411 113 7501 SCR TRS 4X10 4 696RF-110-088
89 411 043 5004 SCR PAN 4X8 8 696RF-110-089
90 411 008 1706 WASHER SPR 4 8 696RF-110-090
91 411 119 2104 WASHER V 4X9X0.8 8 696RF-110-091
92 630 000 7626 BOLT,HEX-SCT 2 696RF-110-092
93 411 141 2905 WASHER SPR 4 2 696RF-110-093
95 630 001 0213 WASHER 2 696RF-110-095
96 630 000 7756 BOLT,HEX-SCT 4 696RF-110-096
97 411 141 6705 WASHER SPR 5 4 696RF-110-097
99 630 001 0220 WASHER 4 696RF-110-099
MODEL TCM-X200
0211-003
254

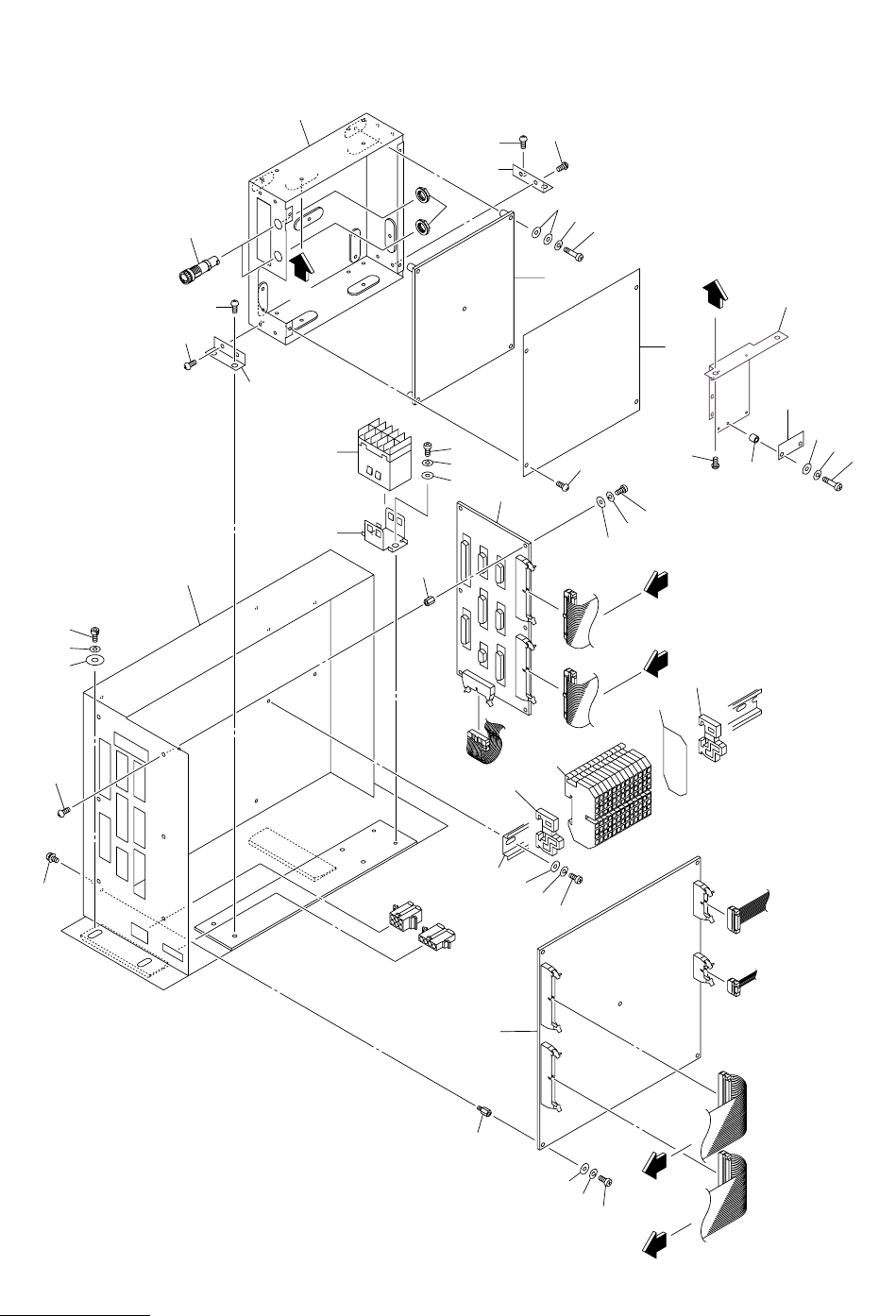

ࠪࠤࡦࠬࡄࡀ࡞ㇱ RELAY SEQUENCE PANEL SECTION
Fig. RG-1 ࠪࠤࡦࠬࡄࡀ࡞ Relay Sequence Panel
72
73
.
65
72
95
96
94
92
97
98
99
58
A
C
B
A
B
57
54
58
99
59
98
97
99
52
98
71
86
92
88
90
87
97
55
.
56
.
70
69
51
68
97
98
99
60
66
63 64
.
93
67
92
85
93
92
67
79
Fig.RG-1
4797L
TCM-X300
C
95
96
89
78
74
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
255
RG-1
51 630 092 5609 PANEL 1 696RG-110-051
52 630 094 7458 P.C.B,MOUNT 1 UA72*001*0000 696RG-110-052
54 630 083 5465 TERMINAL 13 696RG-110-054
55 630 072 8408 ACCESSORY,WIRING 1 696RG-110-055
56 630 058 8460 ACCESSORY,WIRING 2 696RG-110-056
57 630 083 5533 ACCESSORY,WIRING 1 696RG-110-057
58 630 049 3672 BRACKET,WIRING 2 696RG-110-058
59 630 089 6480 RAIL,WIRING 1 696RG-110-059
60 630 094 7441 P.C.B,MOUNT 1 UA71*001*0000 696RG-110-060
63 630 090 1078 P.C.B,MOUNT(P.C.B.) 1 UA54*001*0000 696RG-110-063
64 630 087 7786 PROGRAM ROM 1 #CPLD CZT1 696RG-110-064
65 630 094 4914 BOX 1 696RG-110-065
66 630 089 2307 COVER 1 696RG-110-066
67 630 088 7952 BRACKET 2 696RG-110-067
68 630 069 7278 RELAY 1 K1 696RG-110-068
69 630 049 2422 BRACKET,WIRING 1 696RG-110-069
70 630 093 0054 ACCESSORY,P.C.B 6 696RG-110-070
71 630 093 0061 ACCESSORY,P.C.B 5 696RG-110-071
72 630 093 1785 FUSE HOLDER 2 696RG-110-072
73 423 022 8104 FUSE 250V 2A 2 F002,F009 696RG-110-073
74 630 095 6641 PLATE 1 696RG-110-074
78 630 104 4323 P.C.B,MOUNT 1 UA99*001*0000 696RG-110-078
79 630 013 7637 ACCESSORY,P.C.B 2 696RG-110-079
85 411 140 8007 SCR TRS 5X6 2 696RG-110-085
86 411 174 6604 SCR PAN+SW+W 5X10 1 696RG-110-086
87 630 000 7749 BOLT,HEX-SCT 2 696RG-110-087
88 411 141 6705 WASHER SPR 5 2 696RG-110-088
89 411 162 1505 SCR PAN 4X20 2 696RG-110-089
90 630 001 0220 WASHER 2 696RG-110-090
92 411 113 7501 SCR TRS 4X10 14 696RG-110-092
93 411 113 9109 SCR TRS 5X10 4 696RG-110-093
94 411 162 1604 SCR PAN 3X20 5 696RG-110-094
95 411 119 1909 WASHER V 3X7X0.5 12 696RG-110-095
96 411 086 4408 WASHER SPR 3 7 696RG-110-096
97 411 043 5004 SCR PAN 4X8 15 696RG-110-097
98 411 008 1706 WASHER SPR 4 15 696RG-110-098
99 411 119 2104 WASHER V 4X9X0.8 15 696RG-110-099
