MODEL TCM-X200 021 1-003 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 243 RC-3 25 2 630 092 2844 TE RM I N A L 9 696RC-1 10-252 25 3 630 092 2851 AC C ESSORY ,WIRING 1 6 96RC-1 10-253 25 4 630 092 2868 AC C ESSORY ,…
MODEL TCM-X200
0211-003
242
200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION

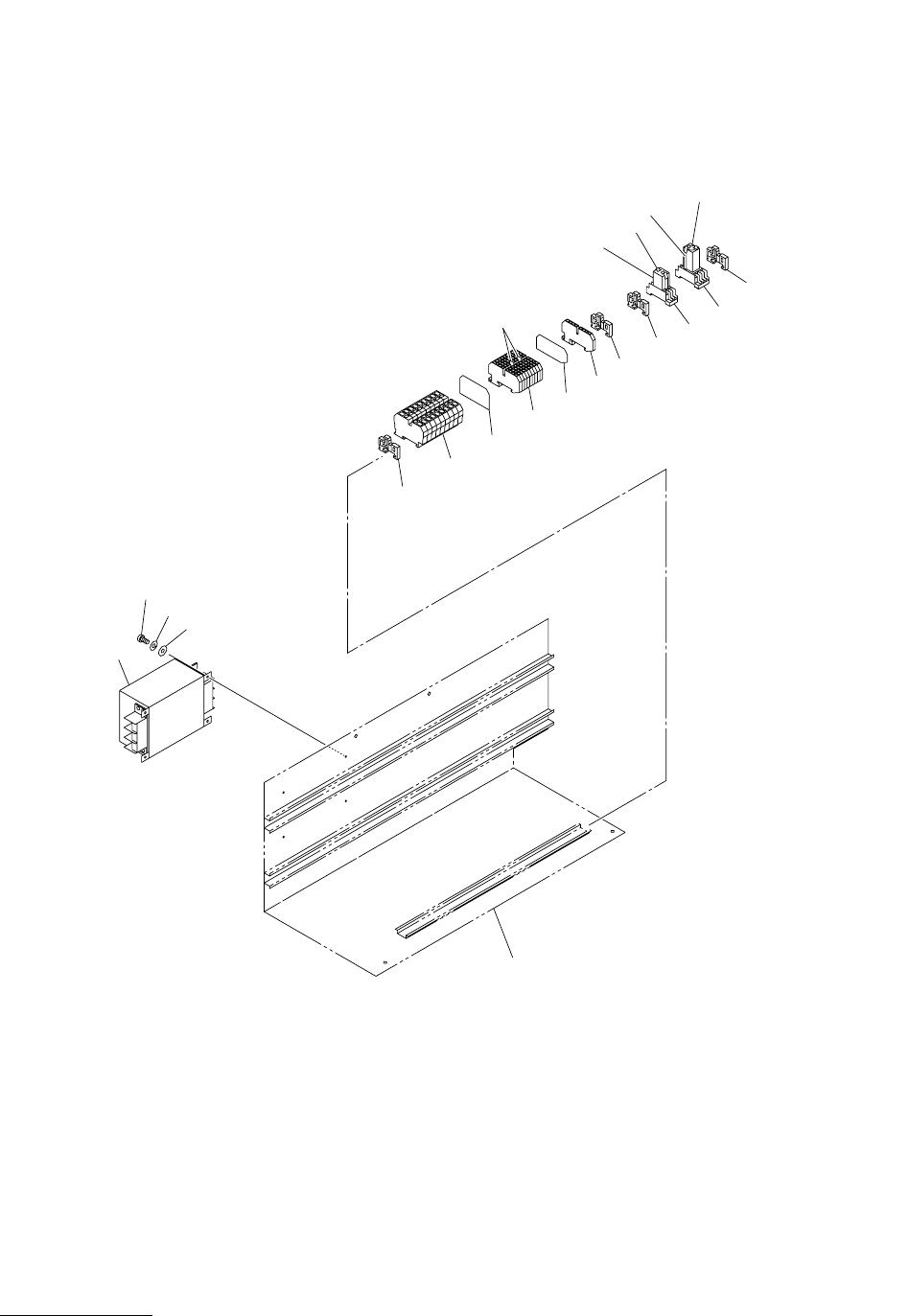

Fig. RC-3 200V 㔚Ḯ㧟 200V Power Supply 3
296
298
299
255
See Fig.RC-1
Key No.61
252
.
253
261
265
255
254
260
.
262
.
259
267
Fig.RC-3
4797L-002
TCM-X200-003
TCM-X300-002
TCM-X100-002
4797A-003
255
270
268
271
272
269
255
263
270
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
243
RC-3
252 630 092 2844 TERMINAL 9 696RC-110-252
253 630 092 2851 ACCESSORY,WIRING 1 696RC-110-253
254 630 092 2868 ACCESSORY,WIRING 3 696RC-110-254
255 630 049 3672 BRACKET,WIRING 4 696RC-110-255
259 630 058 8460 ACCESSORY,WIRING 1 696RC-110-259
260 630 083 5465 TERMINAL 9 696RC-110-260
261 630 083 5533 ACCESSORY,WIRING 1 696RC-110-261
262 630 072 8408 ACCESSORY,WIRING 1 696RC-110-262
263 630 083 5564 ACCESSORY,WIRING 2 696RC-110-263
265 630 093 3291 TERMINAL 1 696RC-110-265
267 630 086 3871 FILTER,NOISE 1 ZNF2 696RC-110-267
268 630 049 2125 RELAY 1 K63 696RC-110-268
269 630 007 3911 TIMER 1 KT6 696RC-110-269
270 630 000 4144 SOCKET 2 696RC-110-270
271 630 000 1020 BRACKET,WIRING 1 696RC-110-271
272 630 000 1037 BRACKET,WIRING 1 696RC-110-272
296 411 113 1400 SCR PAN 4X6 4 696RC-110-296
298 411 008 1706 WASHER SPR 4 4 696RC-110-298
299 411 119 2104 WASHER V 4X9X0.8 4 696RC-110-299
MODEL TCM-X200
0211-001
244
200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION
Fig. RC-4 200V 㔚Ḯ㧠 200V Power Supply 4
394
396
352
395
399
398
397
351
394
395
396
353
393
392
391
Fig.RC-4
TCM-X200
4797A
4797L
TCM-X300
TCM-X100
