SI1304003E-000 = 8mm ZS feeder maintenance procedures 1

2.14 Replace the peel motor

2.14.1 Remove the peel motor

Step 1 Remove the EL box cover referring to “2.3 Replace the EL box cover”, step 1.

Step 2 Remove the feeder side cover referring to “2.4 Replace the feeder side cover”,

step 1. Apply a tiny amount of NSK NSL grease at where relevant positioning pins and

gears come in contact.

Step 3 Disconnect the feed motor harness from the feeder board assy at its connector.

Step 4 Remove the P1 idle gear upward from the feeder body.

Step 5 Remove the screw fastening the peel motor harness using a Phillips screwdriver

(No.1).

Step 6 Remove the two screws fastening the peel motor using a Phillips screwdriver (No.1)

and remove the peel motor upward from the feeder body.

Trained Customers

Service Information

25/27

SI1304003E-000 = 8mm ZS feeder maintenance procedures 1

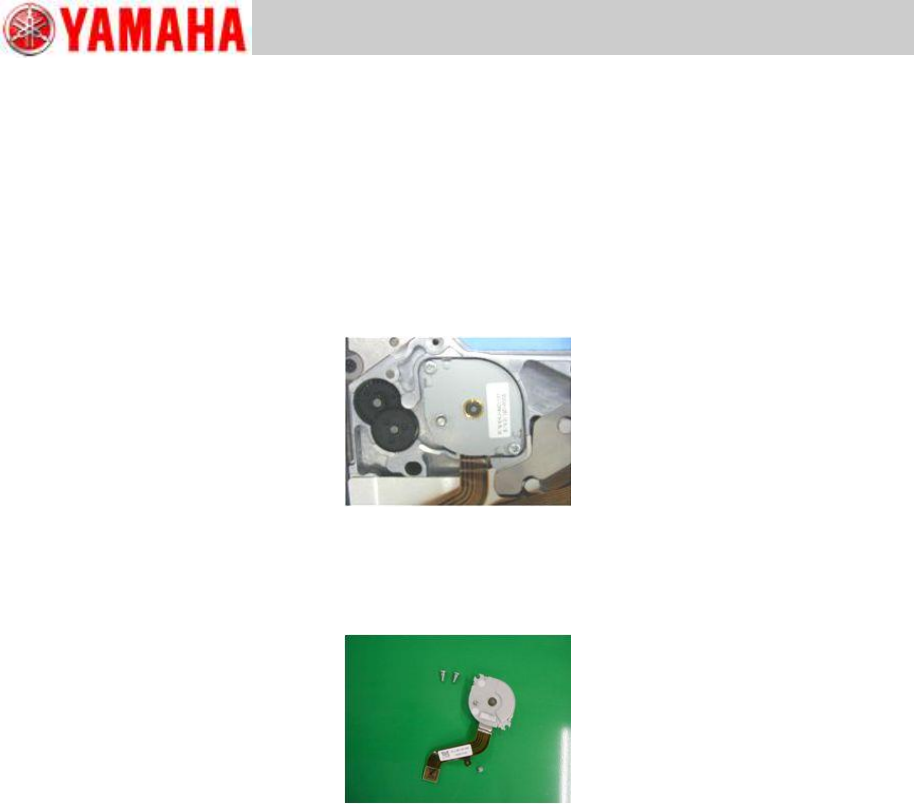

2.14.2 Install the peel motor

Step 1 Set the new peel motor to the feeder body so that its harness is located on the lower

side.

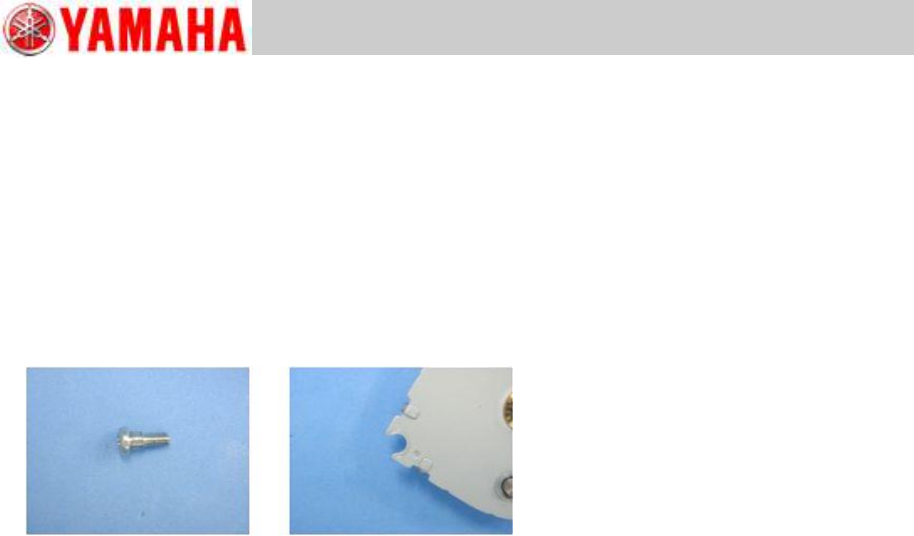

Step 2 Fasten the peel motor roughly on the feeder body with two shoulder screws using a

Phillips screwdriver (No.1). Make sure that the step of the screw and the cutout part of

the motor fit.

Step 3 Fully tighten the screws to 40Ncm.

Note

When fastening the peel motor on the feeder body, be careful not to damage the harnesses

of the ABS board and feed motor.

Step 4 Fasten the earth cable of the peel motor on the feeder body with a screw using a

Phillips screwdriver (No.1).

Tightening torque is 40Ncm.

Step 5 Connect the connector of the feed motor to the feeder board assy.

Step 6 Apply a tiny portion of the NSK NSL grease to where the P1 positioning pin and the

gear come into contact.

Note

Do not apply grease to the gear section. If the gear is contaminated with grease, wipe the

gear clean.

Step 7 Install the P1 idle gear referring to “2.13.2 Install the P1, P2 and P3 idle gears”.

Step 8 Install the feeder side cover referring to “2.4 Replace the feeder side cover”, step 2.

Step 9 Install the EL box cover referring to “2.3 Replace the EL box cover”, step 2.

Trained Customers

Service Information

26/27

SI1304003E-000 = 8mm ZS feeder maintenance procedures 1

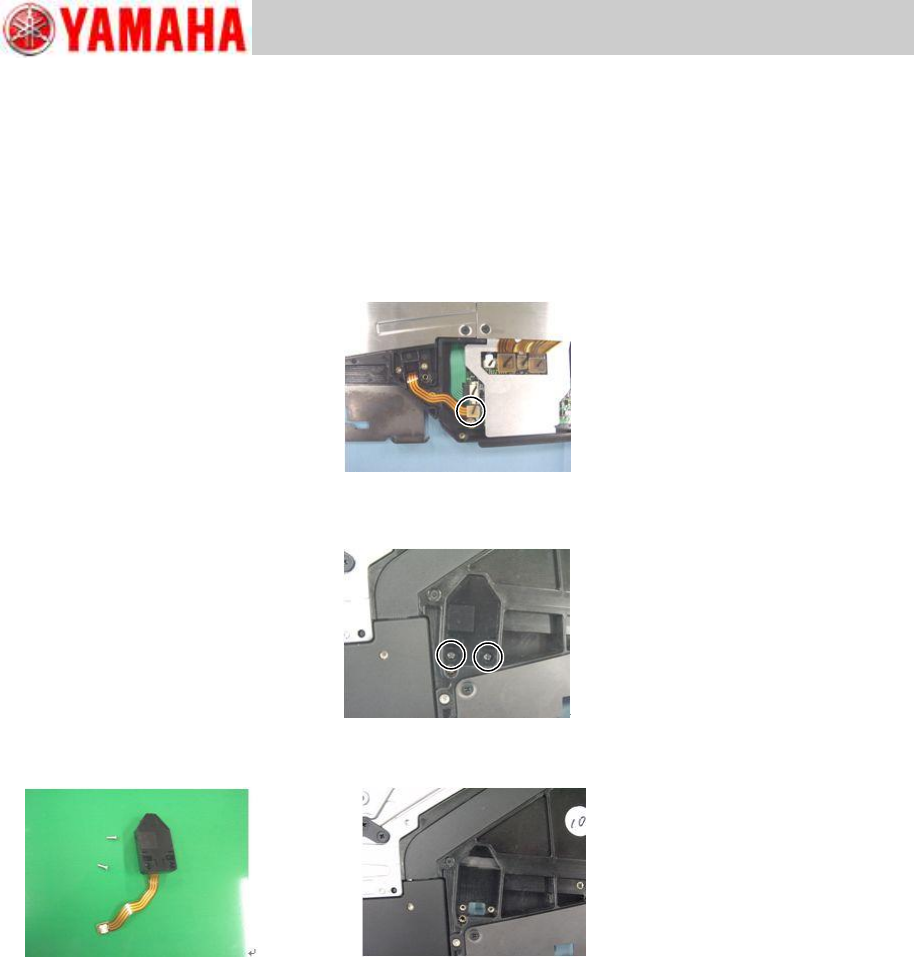

2.15 Replace the splice sensor (optional)

2.15.1 Remove the splice sensor

Step 1 Remove the EL box cover referring to “2.3 Replace the EL box cover”, step 1.

Step 2 Disconnect the splice sensor harness from the feeder board assy at the connector.

Note

When disconnecting the connector, use a driver with plastic tip and take care not to damage

the feeder board assy and the connector.

Step 3 Remove the two screws fastening the splice sensor to the top tape box with a Phillips

screwdriver (No.1).

Step 4 Pull out the harness of the splice sensor through the gap between the top tape box and

the EL box.

2.15.2 Install the splice sensor

Step 1 Insert the harness of the splice sensor into the cutout part of the EL box.

Step 2 Install the splice sensor to the top tape box with two tapping screws using a Phillips

screwdriver (No.1).

Tightening torque is 20Ncm.

Step 3 Connect the connector of the splice sensor to the feeder board assy.

Step 4 Install the EL box cover to the feeder body referring to “2.3 Replace the EL box

cover”, step 2.
