EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
4.2 SIPLACE EDM Configuration
4.2.1 General Considerations
SIPLACE EDM uses a dedicated configuration server to manage the settings of all computers that
EDM connects. Before installing SIPLACE EDM, please choose the best-suited location to run the
central configuration server. The configuration server is an essential component, and any computer
to run any EDM component must provide network access to its computer. You may choose one of
these options:
1. Install the central configuration components onto the EDM Master server (which is the
recommended option)
2. Setup a dedicated configuration server computer
3. Setup a configuration server along with an EDM Client computer. Choose this option only
when upgrading gradually from former EDM versions (before EDM 2.0, see section 4.3 for
more details).
With some effort, it is possible to change the configuration server location (cf. section 5.3.7.1).
CAUTION
Though feasible, it is not recommended to run more than one configuration server in an
organizational unit, e.g. within a plant or on line computers connected to the same EDM
Master server (except during an upgrade scenario, cf. chapter 4.3). Otherwise, there is a
high risk to get an inconsistent EDM environment and a poor overview over the EDM
components.
12
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
4.2.2 Setup
► Run the Setup.Exe program on the installation media.
► Click on the Next button of the dialog box that appears.
► Read and accept the License Agreement.

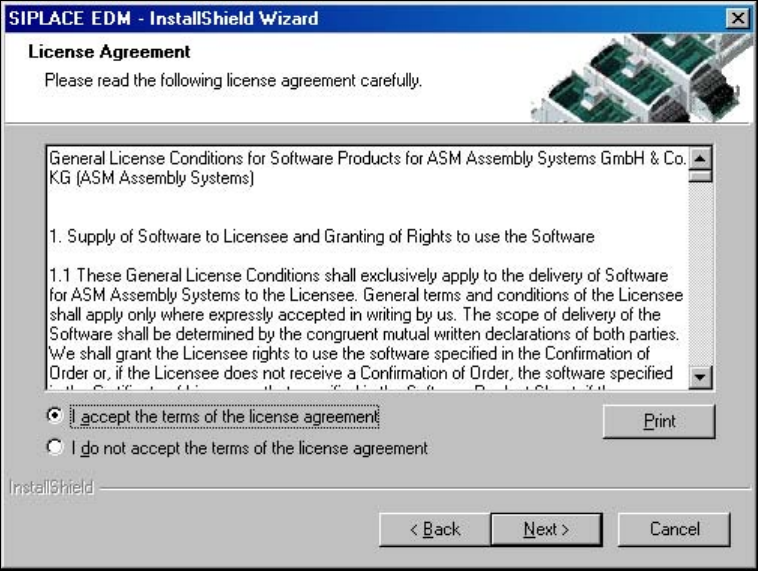

Figure 4-1: License agreement
► Click the Next button.
The following dialog box asks you to enter your contact information.
► Enter this information and click the Next button.
13
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition

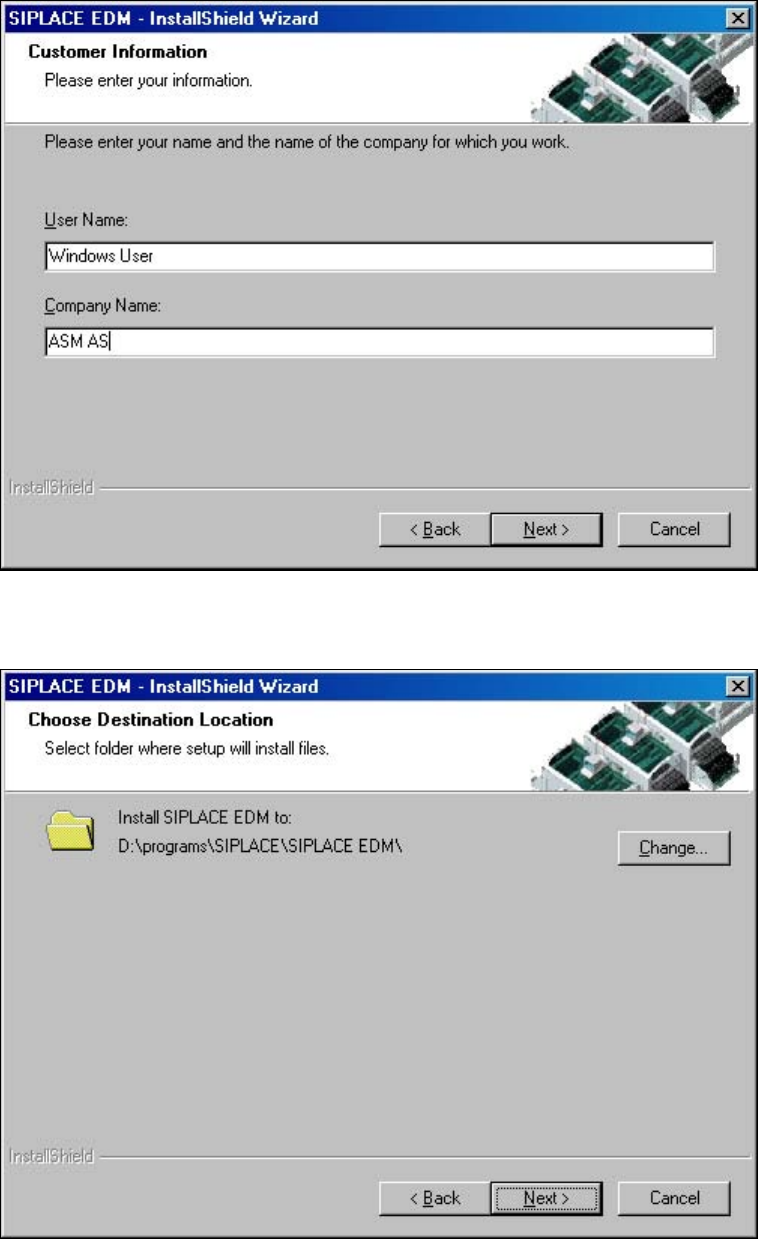

Figure 4-2: Contact information
► Select the target folder for the SIPLACE EDM installation.
Figure 4-3: Target folder for installation
14
