6 Appendix (Technical Reference) 39
6.1 File system folder structure................................................................................39
6.1.1 Standard Installation Path..................................................................................39
6.1.2 Program Data Installation Path..........................................................................39
6.2 Registry Keys.....................................................................................................40
6.3 Configuration Files.............................................................................................42
6.3.1 Configuration Sets .............................................................................................45
6.3.2 Machine Configuration.......................................................................................46
6.3.3 Comment Categories.........................................................................................47
6.3.4 Request Configuration.......................................................................................47
6.3.5 Role Configuration.............................................................................................48
6.3.6 System Configuration.........................................................................................49
6.3.7 Configuring push mode......................................................................................63
6.4 Workflow Configuration......................................................................................66
6.4.1 Theory................................................................................................................66
6.4.2 Application.........................................................................................................67
7 Glossary 72
4
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
1 Introduction
The goal of this document is to provide the consultants who will be setting up SIPLACE EDM
systems at the customers with a guide detailing the technical aspects involved in such an
installation.
5
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
2 System components
2.1 Overview

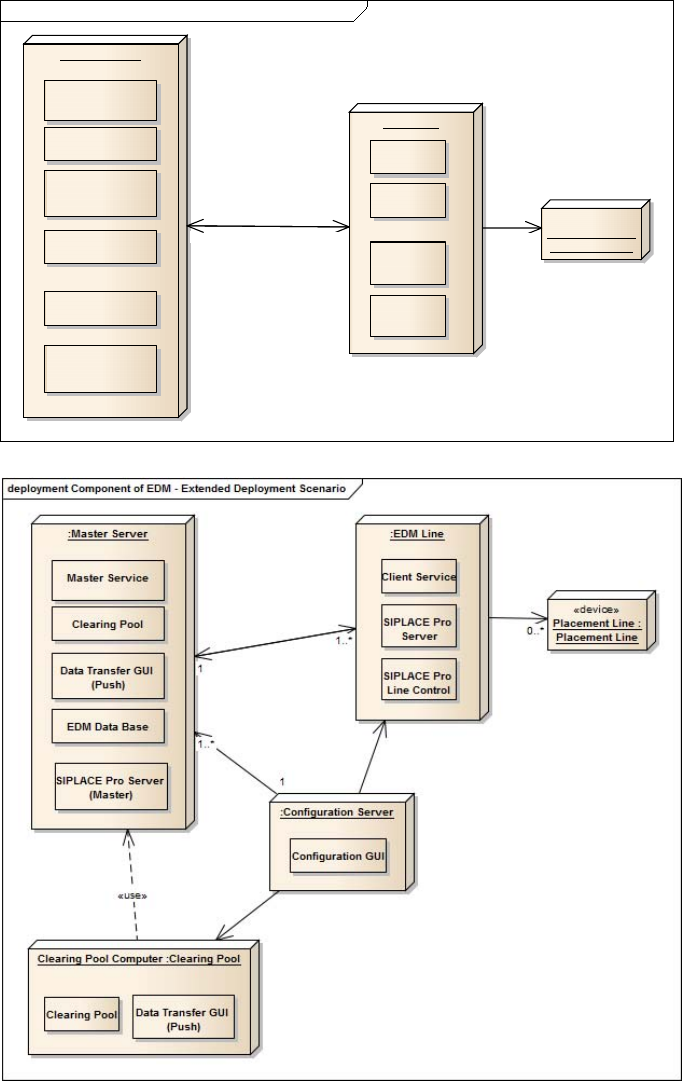

The Engineering Data Manager comprises three major units: the EDM Configuration Manager,
EDM Master Server and the EDM Client Server. The illustrations below show a basic deployment
scenario and a typical deployment scenario for the EDM and the communication paths between the
individual system components.
deployment Components of the EDM - Basic Deployment Scenario
:Master Server
Master Service
Clearing Pool
:EDM Line
Data Transfer GUI
(Push)
SIPLACE Pro Server
(Master)
SIPLACE Pro
Server
Client Service
SIPLACE Pro
Line Control
«device»
Placement Line :
Placement Line
EDM Data Base
EDM Client
Configuration GUI
0..*
1..*
1
6
