EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
Configuring a list
After a distribution list has been selected, the email addresses of the recipients and the object
types or EDM events monitored by the list can be entered. All recipients on the distribution list
receive emails regarding notifications which refer to one of the selected object types. Only those
notifications are taken into account that originate from the line for which the distribution list was
created.
Figure 5-9: Configuration of email distribution lists
If the recipients are to be notified about Forced Pull events, this event must be selected in the
EDM Events tab.
General distribution list
The general distribution list reacts to notifications from all lines simultaneously, but is otherwise the
same as normal distribution lists.
36
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
5.3.7 Configuration Status Monitor

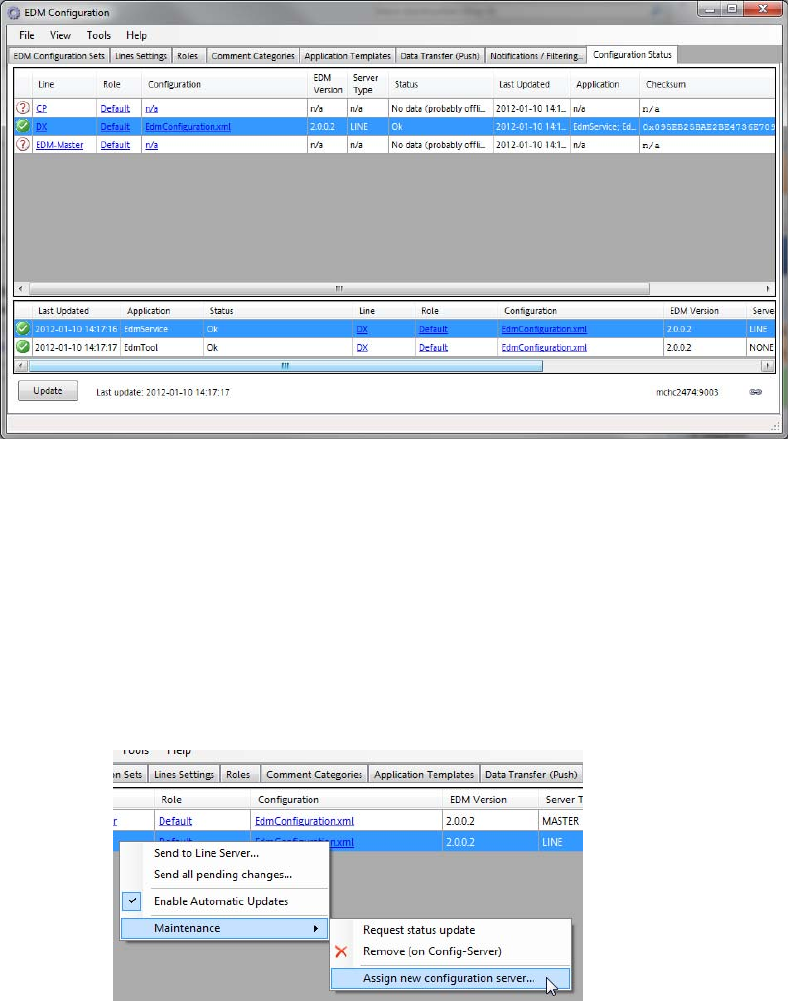

The Configuration Status tab gives some information about the status of the EDM Client
computers (upper pane) and their EDM applications (lower pane).
5.3.7.1 Changing the Configuration Server of one EDM Client
In order to make an EDM Server get its configuration set from another Configuration Server, these
steps are required:
1. Open the Configuration Status tab of the Configuration GUI on the old Configuration
Server and click the Update button.
2. For each EDM computer in the list of computers (you may select multiple lines at once),
open the context menu and select “Assign new configuration server”
3. In the text box, change the hostname part of the URI to match the new configuration server
4. On the new configuration server, type-in the appropriate settings for the EDM Client’s alias
and host name.
37
