EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
5.3.6.2 Direct import of changed objects to the master database
It is possible to bypass the Clearing Pool and import objects changed on the lines directly into the
master database without the data preparation engineer inspecting the data.
The configuration is performed in the same way as for filter configuration. However, the
configuration options only allow identification of the data using:
● object type
● user names (SIPLACE Pro and Windows)
● name of the changed object.
This restriction is implemented using regular expressions.

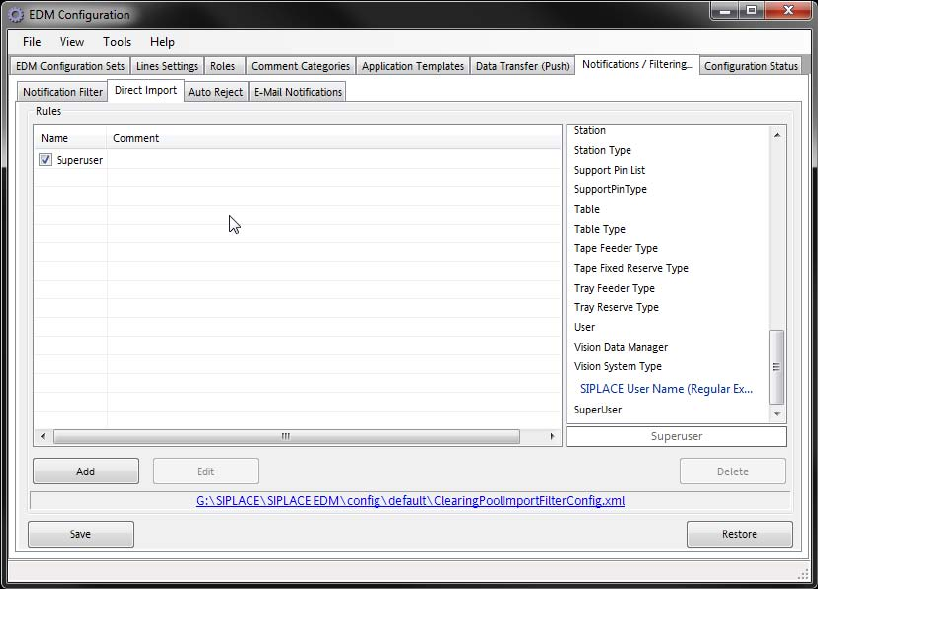

Figure 5-7 Configuration of notifications to be imported directly
The configuration is stored in the ClearingPoolImportFilterConfig.xml file in the config folder.
34
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
5.3.6.3 Automatic rejection of the changes
It is possible to bypass the Clearing Pool and automatically reject objects changed on the lines
without the data preparation engineer inspecting the data. The changes are rejected without being
saved.

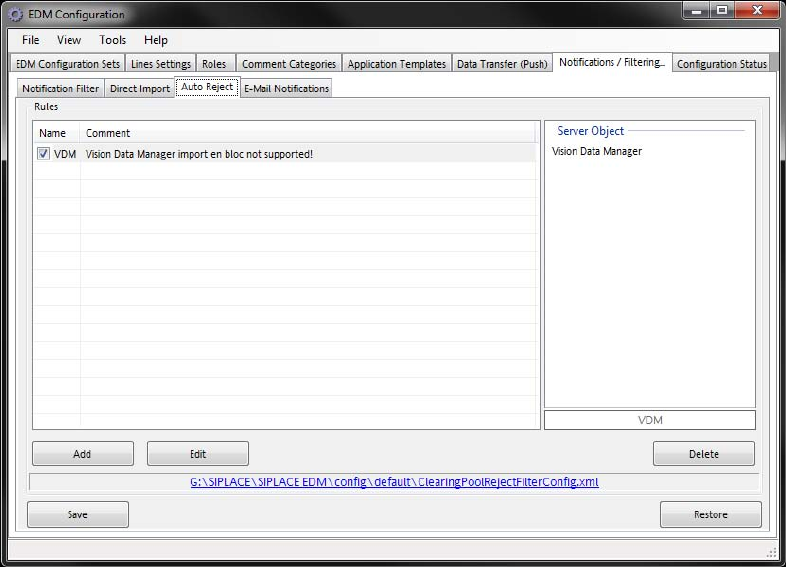

Figure 5-8: Configuration of notifications to be rejected automatically
5.3.6.4 Email configuration
EDM email notification uses SMTP to distribute notifications arriving at the Master Server. The
following must be configured:
● The network address of the SMTP server
● The sender to be entered in the message
● A set of distribution lists
Email distribution lists make it possible to keep email traffic to a minimum and to send the emails to
precisely the person(s) responsible. A distribution list only responds to notifications from a specific
line which contain changes to specific object types.
The storage location of the configuration file should be specified for informational purposes and
must not be changed. Direct manipulation of the configuration file should be avoided.
Setting up a new list
A line must be selected before a new distribution list can be added. A name and a comment are
assigned to each new list.
35
EDM V2.0 / Installation Manual Ausgabe 04/2012 Edition
Configuring a list
After a distribution list has been selected, the email addresses of the recipients and the object
types or EDM events monitored by the list can be entered. All recipients on the distribution list
receive emails regarding notifications which refer to one of the selected object types. Only those
notifications are taken into account that originate from the line for which the distribution list was
created.

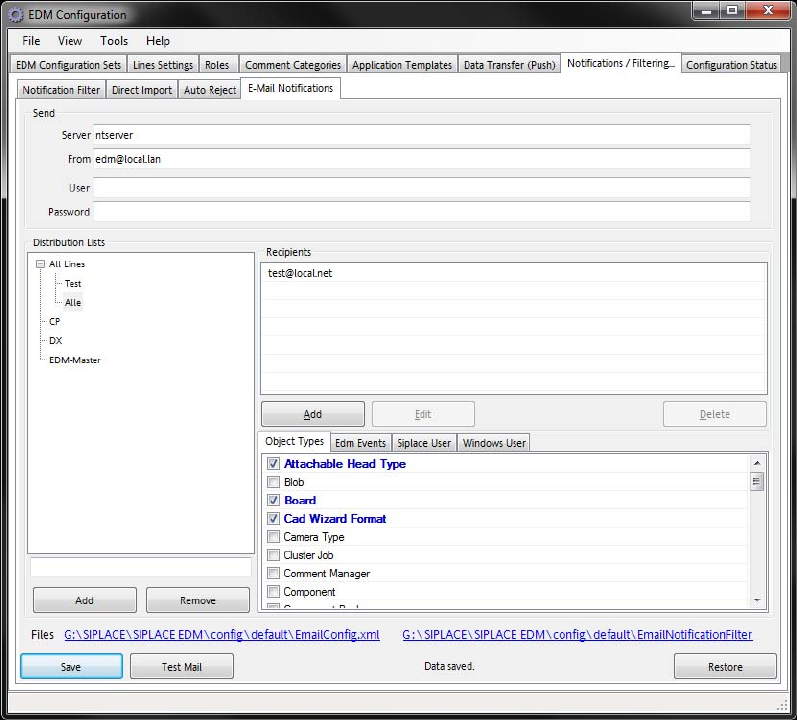

Figure 5-9: Configuration of email distribution lists
If the recipients are to be notified about Forced Pull events, this event must be selected in the
EDM Events tab.
General distribution list
The general distribution list reacts to notifications from all lines simultaneously, but is otherwise the
same as normal distribution lists.
