3 Technical data and assemblie s User manual SIPLACE TX-Series 3.5 Placement head From software version 713.0 Edition 01/2020 128 3 Fig. 3.5 - 5 SIPLACE MultiS tar - front view , function groups part 2 (1) C&P compon…
User manual SIPLACE TX-Series 3 Technical data and assemblies
From software version 713.0 Edition 01/2020 3.5 Placement head
127
3.5.4 SIPLACE MultiStar CPP /CPP M
3

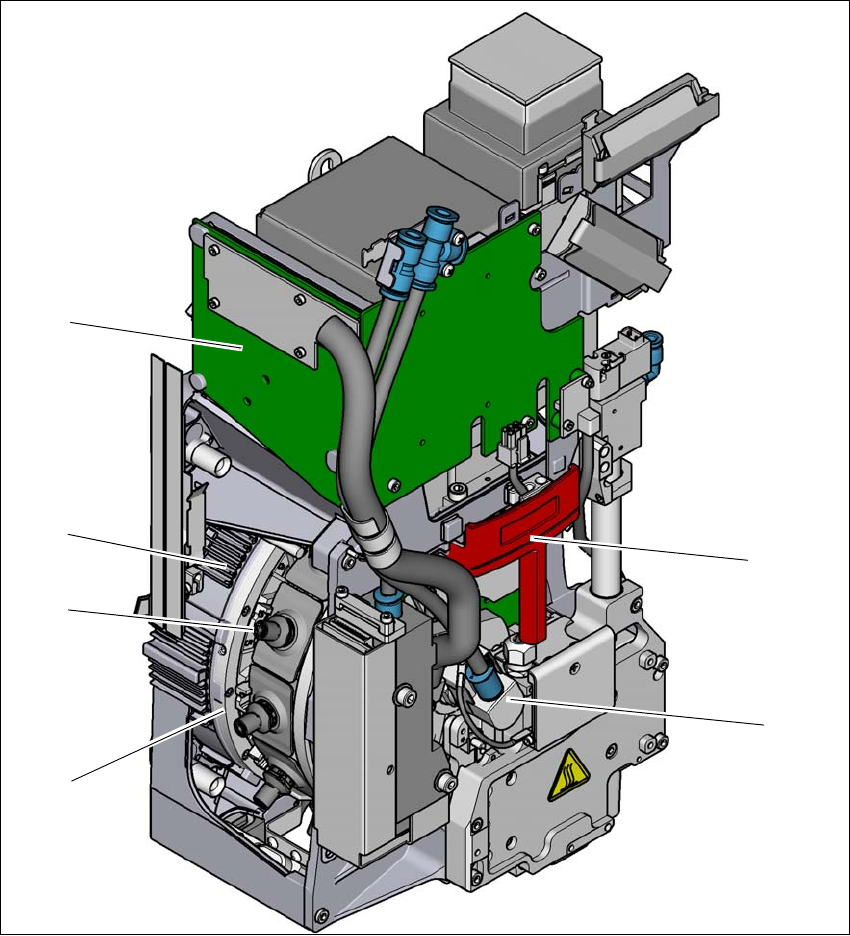

Fig. 3.5 - 4 SIPLACE MultiStar - front view, function groups part 1
(1) Star with 12 segments
(2) Segment with integrated DP drive
(3) Torque motor for star drive
(4) Intermediate distributor board
(5) Handle (red for CPP M)
(6) Compressed air connection for the Venturi nozzles in the pickup/placement and holding cir-
cuit
(1)
(2)
(3)
(4)
(6)
(5)
3 Technical data and assemblies User manual SIPLACE TX-Series
3.5 Placement head From software version 713.0 Edition 01/2020
128
3

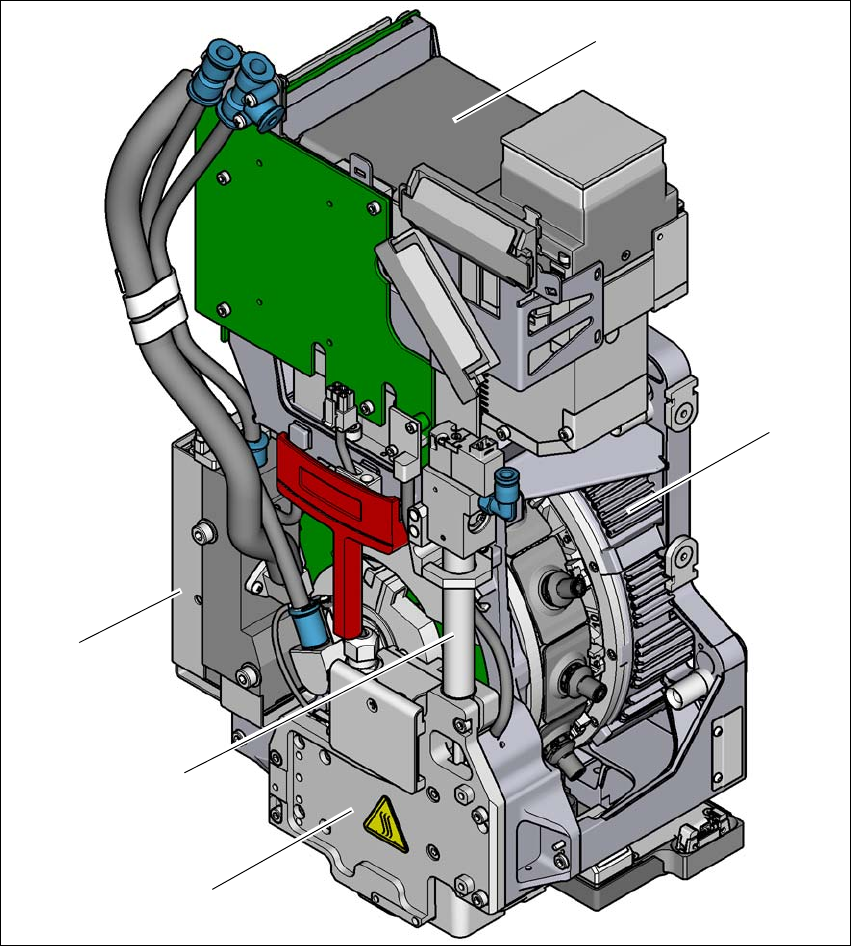

Fig. 3.5 - 5 SIPLACE MultiStar - front view, function groups part 2
(1) C&P component camera, type 30, 27 x 27, digital
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
(1)
(2)
(3)
(4)
(5)
User manual SIPLACE TX-Series 3 Technical data and assemblies
From software version 713.0 Edition 01/2020 3.5 Placement head
129
3
Fig. 3.5 - 6 SIPLACE MultiStar - back view, function groups part 3
(1) Component sensor
(2) Assembly position for component height of up to 11.5 mm
(3) Assembly position for component height of up to 6 mm
(3)
(2)
(1)
