User manual SIPLACE TX-Series 6 Station extensions From software version 713.0 Edition 01/2020 6.1 Nozzle changer 299 6.1.5 Reject bin and nozzle st ation Item no. 031 12806-xx Reject bin and nozzle st ation, TH/CPP A co…
6 Station extensions User manual SIPLACE TX-Series
6.1 Nozzle changer From software version 713.0 Edition 01/2020
298
6.1.4.5 special nozzles
The SIPLACE placement machines process components in accordance with the standard SMT
spectrum.
The SIPLACE TX is not designed for THT (Through Hole Technology) or OSC components (Odd
Shaped Components).
ASM is continually developing special nozzles.
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the
setup times that occur at a product change.
For the production of special magazines and grippers, again contact ASM.
User manual SIPLACE TX-Series 6 Station extensions
From software version 713.0 Edition 01/2020 6.1 Nozzle changer
299
6.1.5 Reject bin and nozzle station
Item no. 03112806-xx Reject bin and nozzle station, TH/CPP
A component reject bin can be installed for the SIPLACE TwinStar and SIPLACE CPP with sta-
tionary camera. This is positioned next to the stationary camera.
6

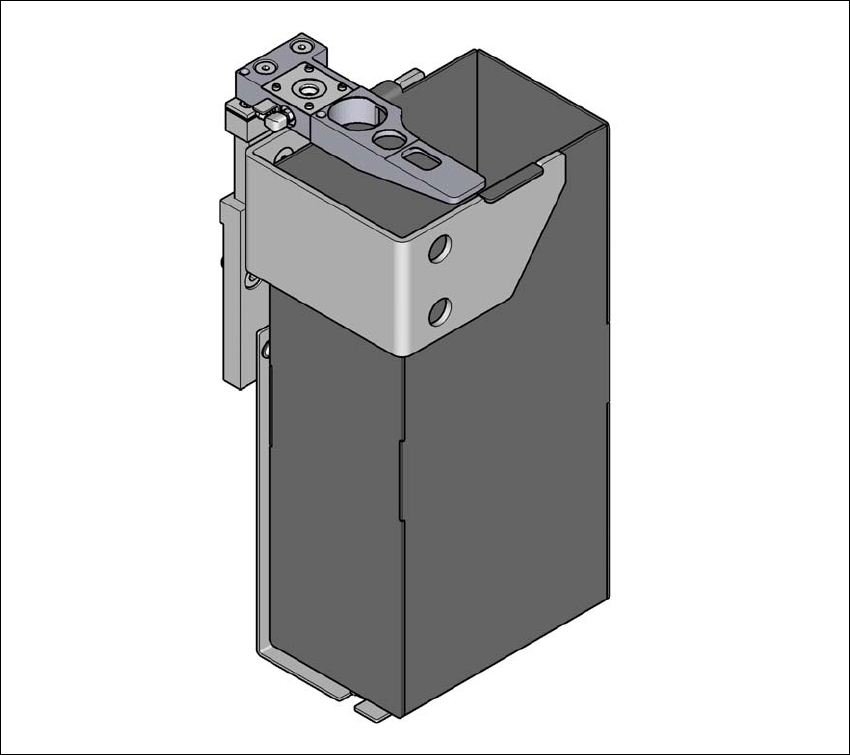

Fig. 6.1 - 15 Reject bin and nozzle station TH/CPP
6 Station extensions User manual SIPLACE TX-Series
6.2 Reject plate From software version 713.0 Edition 01/2020
300
6.2 Reject plate
Item no. 03117664-xx Component deposit (reject plate)
If components are recognized as defective by the Vision system, these components will be placed
on the reject plate. The operator can then take these components from there.
6

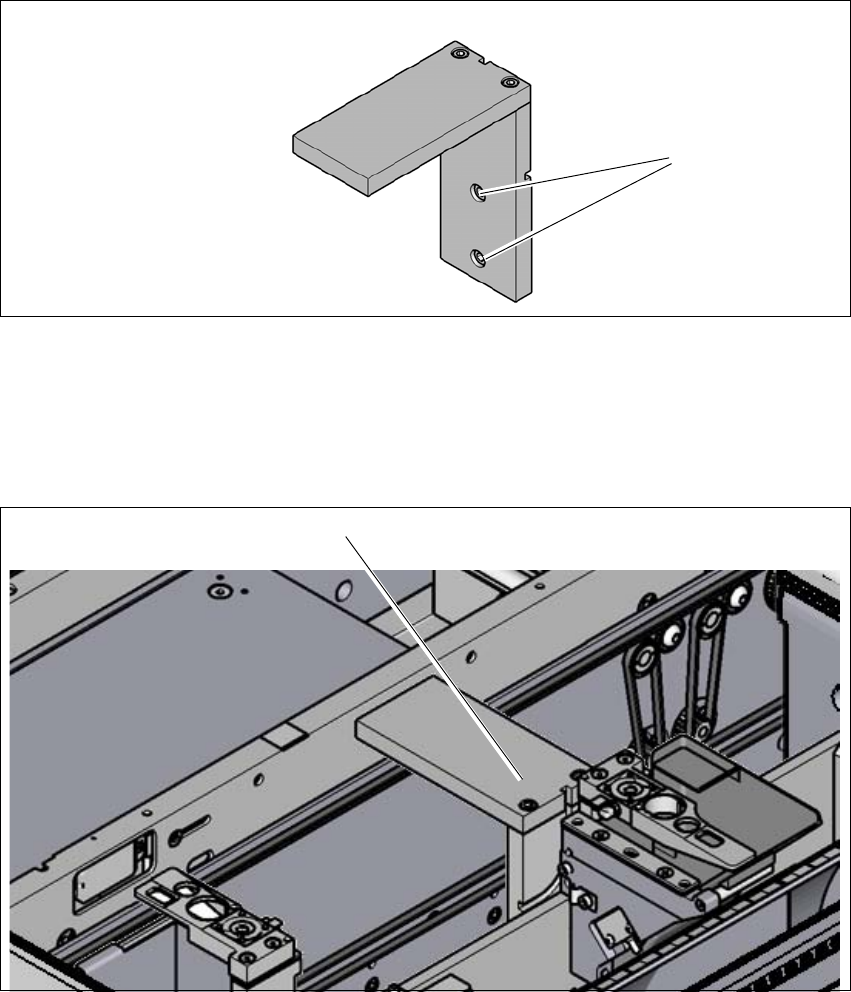

Fig. 6.2 - 1 Component deposit (reject plate)
(1) Fastening screws
6.2.1 Installation position
6
Fig. 6.2 - 2 Reject plate - installation position
(1) Installation position in the placement machine
(1)
(1)
