3.5.5.2 Technical data Twin Star
SIPLACE TwinStar
with component camera type 33
(fine pitch camera)
with component camera type 25
(flip chip camera)
Component range
*a
0402 to SO, PLCC, QFP, BGA, special
components, bare dies, flip-chips
0201 to SO, PLCC, QFP, sockets, plugs,
BGA, special components, bare dies, flip-
chips, shields
Component specs
*b
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
*c
25 mm (higher available on request)
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
55 mm x 45 mm (single measurement)
Up to
200 mm x 125 mm (multiple measurement)
*d
160 g
*e
25 mm (higher available on request)
250 µm
100 µm
140 µm
80 µm
0.6 mm x 0.3 mm
16 mm x 16 mm (single measurement)
160 g*
e
Set-down force 1.0 N - 15 N
2.0 N - 30 N with OSC package
1.0 N - 15 N
2.0 N - 30 N with OSC package
Nozzle types
*f
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
gripper
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
*g
± 28 µm/3σ ± 22 µm/3σ
Angular accuracy ± 0.05° / 3σ, ± 0.05° / 3σ
Illumination level 6 6
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the
component packaging tolerances and the component tolerances.
*)b If the MultiStar and TwinStar are combined in the same placement area, the maximum component height may be restricted.
*)c If standard nozzles are used
*)d Depending on the component dimensions and component infeed, other restrictions may also apply, which SIPLACE Pro will
automatically take into account.
*)e Up to 100 g is standard. Over 100 g available with reduced acceleration.
*)f Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available online.
*)g The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
User manual SIPLACE TX-Series 3 Technical data and assemblies
From software version 713.0 Edition 01/2020 3.6 Gantry system
141
3.6 Gantry system
3.6.1 Position of gantries (2 gantry placement machine)
3

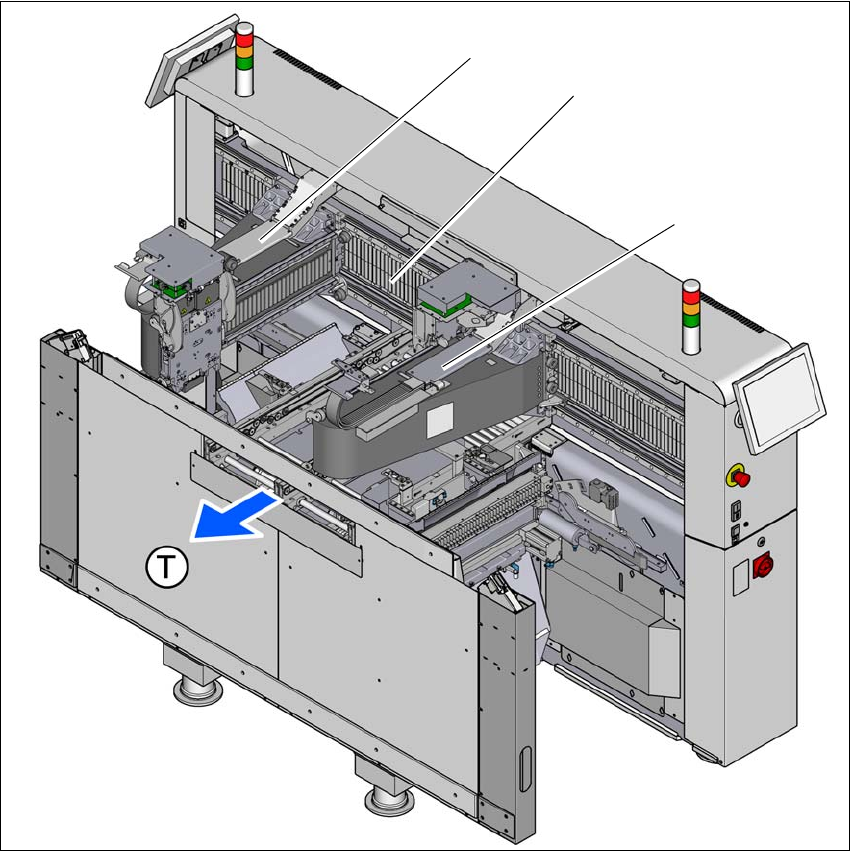

Fig. 3.6 - 1 Position of gantries - example of SIPLACE TX2 - location 2
(1) Gantry 1
(2) Y axis, gantry 1 and gantry 2
(3) Gantry 2
(T) Direction of PCB transport
(3)
(2)
(1)
3 Technical data and assemblies User manual SIPLACE TX-Series
3.6 Gantry system From software version 713.0 Edition 01/2020
142
3.6.2 Position of gantries (1 gantry placement machine)
3
Fig. 3.6 - 2 Position of gantries in SIPLACE TX1 - location 2
(1) Gantry 1
(2) Y axis, gantry 1
(T) Direction of PCB transport
(1)
(2)
