User manual SIPLACE TX-Series 5 Tasks at the placement machine From software version 713.0 Edition 01/2020 5.6 Alert information and online help 245 5.6.3 Color coding in the online help alert information 5 5.6.4 Context…
5 Tasks at the placement machine User manual SIPLACE TX-Series
5.6 Alert information and online help From software version 713.0 Edition 01/2020
244
5.6.2 Viewing information about the selected alert
Click on the button in the toolbar (1).
All the alerts which occurred will be listed.
Select the error category using the buttons in the vertical toolbar (2).
Click on a message in the alert list (3), to open detailed information about it.
. 5

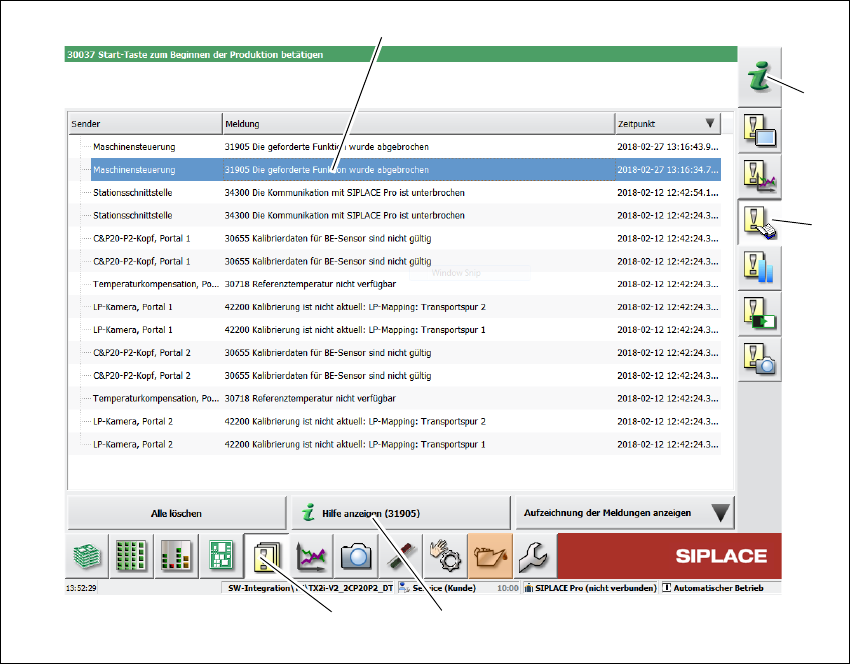

Fig. 5.6 - 2 Example:Alarm list
Select the alert display for which you want to view information from the list of alerts.
Click on the "Show Help" (4) button to view the information.
To view information about a different alert, search the index of the help system (5) by entering the
alert number.
(5)
(2)
(3)
(4)
(1)
User manual SIPLACE TX-Series 5 Tasks at the placement machine
From software version 713.0 Edition 01/2020 5.6 Alert information and online help
245
5.6.3 Color coding in the online help alert information
5
5.6.4 Context-sensitive online help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
Text highlight Meaning
Red text Alert number and message
Black text Possible cause(s) of alert
Green text Instructions for solving the alert
Blue underlined text Open additional information
5 Tasks at the placement machine User manual SIPLACE TX-Series
5.7 Indicator lamps with horn From software version 713.0 Edition 01/2020
246
5.7 Indicator lamps with horn
5.7.1 Overview
These indicator lamps are used to signal operating statuses and malfunctions of the placement
machine. The horn indicates when an alert has occurred. SIPLACE placement machines can ei-
ther be fitted with a two or three color indicator lamp. The relevant indicator lamp system (two or
three color) is set in the autoconfiguration, see the installation guide for the station software.
5.7.1.1 Tri-color indicator lamp (standard)
Fig. 5.7 - 1 Indicator lamps for operating states (tri-color)
L1 red indicator lamp
L2 yellow indicator lamp
L3 green indicator lamp
(L2)
(L1)
(L3)
