SIPLACE Pro V12.1 / Software Version Description Ausgabe 05/2015 Edition

Contents

1 Introduction 5

1.1 System Overview ................................................................................................. 5

2 Scope of Delivery 6

2.1 Packages ............................................................................................................. 6

2.2 Languages ........................................................................................................... 7

2.3 Licenses ............................................................................................................... 8

3 Prerequisites 10

3.1 Supported Station Software Versions and Machine Types ................................ 10

3.2 Supported Feeder Types ................................................................................... 11

4 Features of SIPLACE Pro 12.1 12

4.1 Reading Individual Barcode Fiducials with Board Camera ................................ 12

4.2 C&P20 P 4xxx Placement Head on SIPLACE SX1/SX2 (V2) ............................ 17

4.3 WDTL – Multiple Set-up Components in Barcode Controlled Production

with Synchronous Dual Lane Mode ................................................................... 17

4.4 Configurable "Pickup Components during Measuring Fiducials" ....................... 17

4.5 Placement of 03015 / 0201 Components with C&P20 A 10xx or

C&P20 P 4xxx .................................................................................................... 18

4.6 Automatic Selection of Stopper Positions for Long Board Option ...................... 18

5 Restrictions 19

6 Troubleshooting 23

6.1 Problems and Solutions ..................................................................................... 23

7 Corrected Errors 24

8 Appendix 25

8.1 SIPLACE Net Error Reporter Service ................................................................ 25

SIPLACE Pro V12.1 / Software Version Description Ausgabe 05/2015 Edition

1 Introduction

The placement programs for the placement lines are prepared, generated and optimized with

SIPLACE Pro.

1.1 System Overview

The SIPLACE Pro programming system consists of the following subsystems:

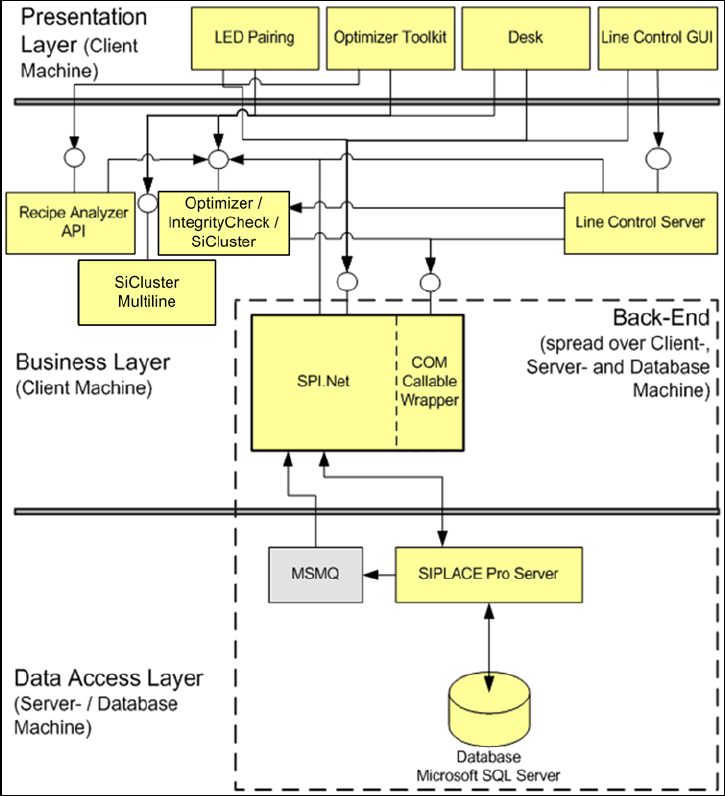

Figure 1-1:System overview

SIPLACE Pro saves all data in a database (Microsoft SQL Server). All clients, such as the Desk,

communicate via the Business Layer with the SIPLACE Pro Server.

The system installation can be distributed across several computers.
