1- 4 1 Maintenance 2. Preparing for maintenance tasks 2.1.2 Replaceable parts (during breakdowns) The term “Replaceable parts” in this manual indicates parts that might cause a machine stoppage as these parts lose their …
1-3
1
Maintenance
2. Preparing for maintenance tasks
Consumable parts
Optional parts
Conveyor belt
Nozzle 81A
Nozzle 83A
Nozzle 82A Nozzle 84A
43101-5E-20
Conveyor belt
Nozzles
For PCB transferLC2-M911M-00X
KV8-M7710-A1X
LC2-M7720-A0X
KV8-M7730-00X
KV8-M7740-A0X
BELT, CONVEYOR
NOZZLE 81A
NOZZLE 82A
NOZZLE 83A
NOZZLE 84A
Product Name
NoteParts No.Parts List Designation
Consumable parts
Optional parts
45101-5E-20
1-4
1
Maintenance
2. Preparing for maintenance tasks

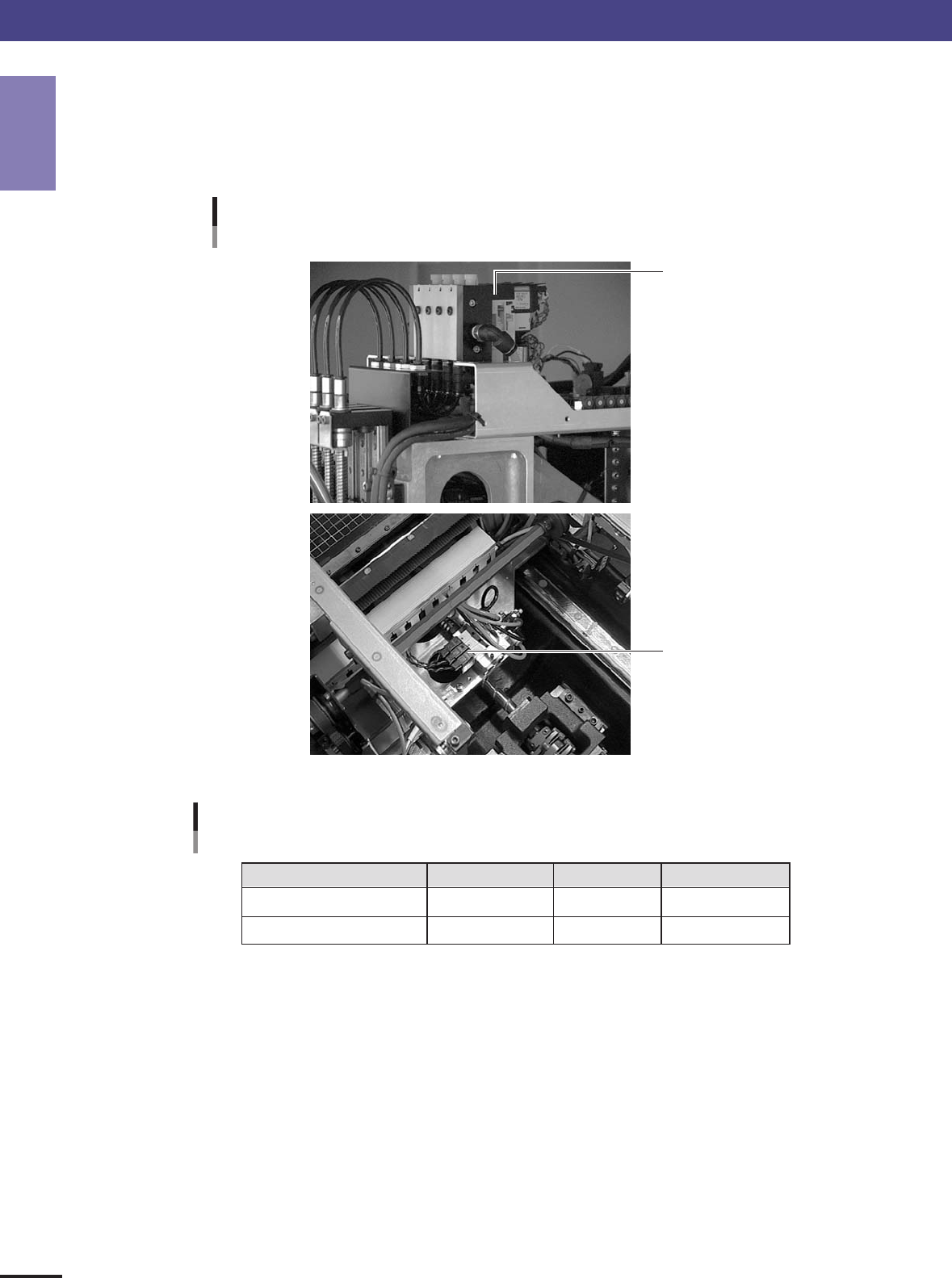

2.1.2 Replaceable parts (during breakdowns)
The term “Replaceable parts” in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts during a machine breakdown are described.
Replaceable parts
During a breakdown
Ejector valve
Conveyor unit valve
43102-5E-20
Ejector valve
Conveyor unit valve
For vacuum generation
Main stopper, etc.
LC2-M7163-00X
LC2-M9121-40X
VALVE
VALVE
Product Name NoteParts No.Parts List Designation
Replaceable parts list
During a breakdown
45102-5E-20
1-5
1
Maintenance
2.2 Maintenance tools
2.2.1 Cleaning tools
Cleaning tools
Optional parts
Feeder plate cleaning brush
43103-5E-20
Feeder plate cleaning brush KV7-M8880-00XBRUSH, FEEDER
Product Name NoteParts No.Parts List Designation
Cleaning tools
Optional parts
45103-5E-20
2. Preparing for maintenance tasks
