ACT - Accuracy Check Tool / User Manual 09/2015 Edition
40
Key:
(1) Waffle pack tray carrier (5) S-table
(2) Track 45 (6) Waffle pack tray
(3) Nozzle changer (7) Track 45
(4) S waffle pack tray carrier

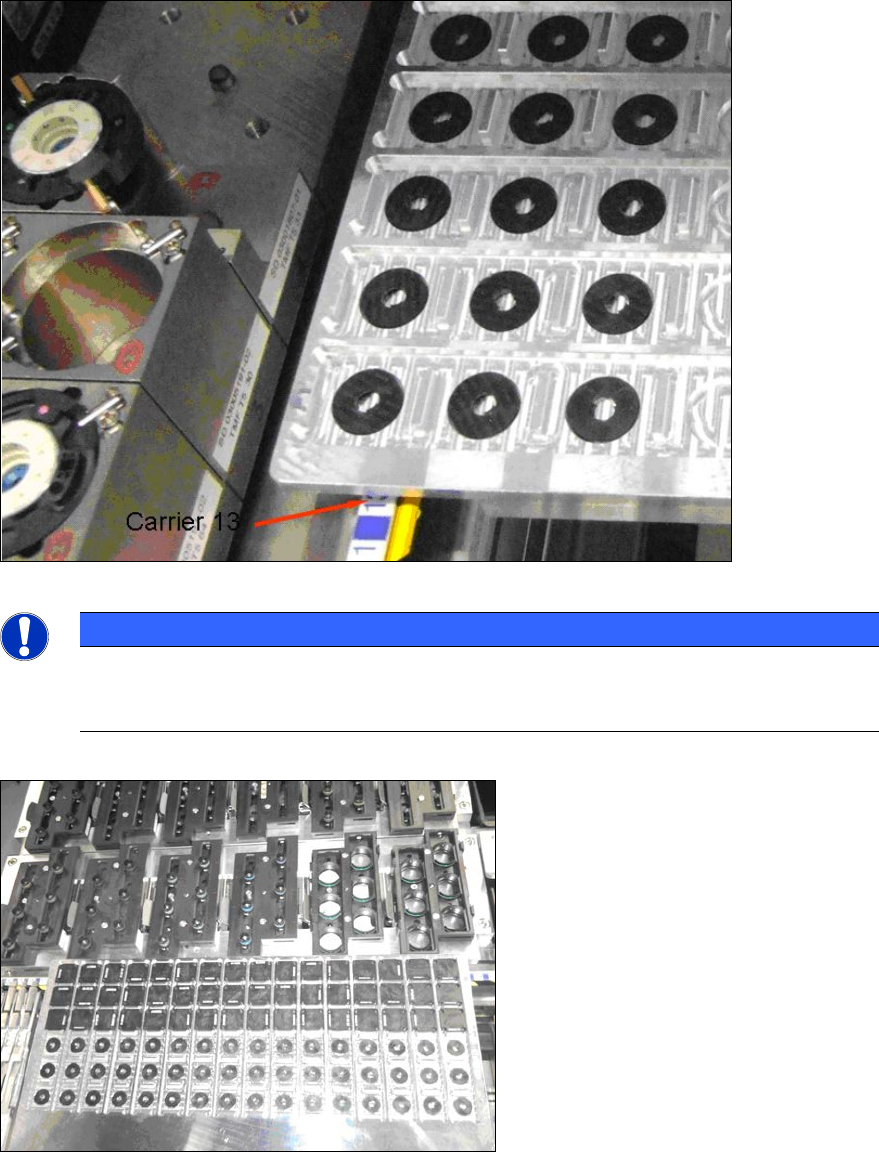

Figure 4-12: Track 13 - position of waffle pack tray on S-table
NOTICE
On X-series machines with C&P6 head and S-table the tray strikes directly against the 6-
nozzle magazines. The magazines cannot be opened without damaging them. In this
case, first change the nozzles and then place the tray on the S tray holder.
Figure 4-13: Waffle-pack tray on S-table blocks nozzle magazine
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
41
NOTICE
The waffle pack tray carrier on an X machine or SX machine with an X-table must be on
track 21 (Figure 4-14
). Therefore, the waffle pack tray occupies track 7 to 35
(Figure 4-15).
NOTICE
Before you undock an X-table with a set ACT tray you should remove the ACT tray or
push it back under the centering / comb bar. Otherwise, it may get stuck in the tape
removal channel and get damaged.
Figure 4-14: Position (track 21) of waffle pack tray carrier on X table
Key:
(1) Waffle pack tray (3) X-table
(2) X table holder (4) Track 21
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
42
Figure 4-15: Position (track 7) of waffle pack tray carrier on X table
CAUTION
Do not reach into the machine during the placement and measurement processes!
► Place the waffle pack tray with the glass components for the relevant head type (TH, P&P,
C&P6) on the corresponding manual waffle pack tray holder (for S- or X- table, Figure 2-4,
Figure 2-5) and push it to the rearmost stop as displayed in the figures (Figure 4-11,
Figure 4-14).
WARNING
Risk of head crash!
The catch of the tray holder must snap into place into the hole. Otherwise, the tray and
holder may tilt to the side and the placement head may clash with the tray!
The intervention guard described in the next chapter must then be fitted.
