ACT - Accuracy Check Tool / User Manual 09/2015 Edition
74
If one or more stations are positioned behind it, for which there is no specification for components
to be placed, the board is passed through these machines and can then be removed from the last
station of the line.
► Click on the
button, to switch to the Service view.
► Click on the Stop Accuracy Check job button.
Figure 4-55: Stop Accuracy Check job
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
75
► Click the Return to regular production button (1) in the next window.
Figure 4-56: Returning to regular production
► Click on the button to the left at the bottom (2) to return to the main view of the GUI.
ACT - Accuracy Check Tool / User Manual 09/2015 Edition
76
5 Tray in Conveyor for ACT Option
When setting up the trays with glass components, large areas of the table have to be cleared
(removing feeder modules).
Further, since the X-series machines were launched, the pickup area for tray carriers is too small at
the table to be able to pick up components from a sufficient number of rows in the trays.
To simplify the setup for ACT measurements, the Tray in Conveyor for ACT option is now offered.
With this option, it is possible to set up a tray with glass components in the PCB conveyor and pick
it up there.
5.1 Software and Hardware Requirements
Software
Station software version ≥708.0 and SIPLACE Pro ≥12.x
Hardware

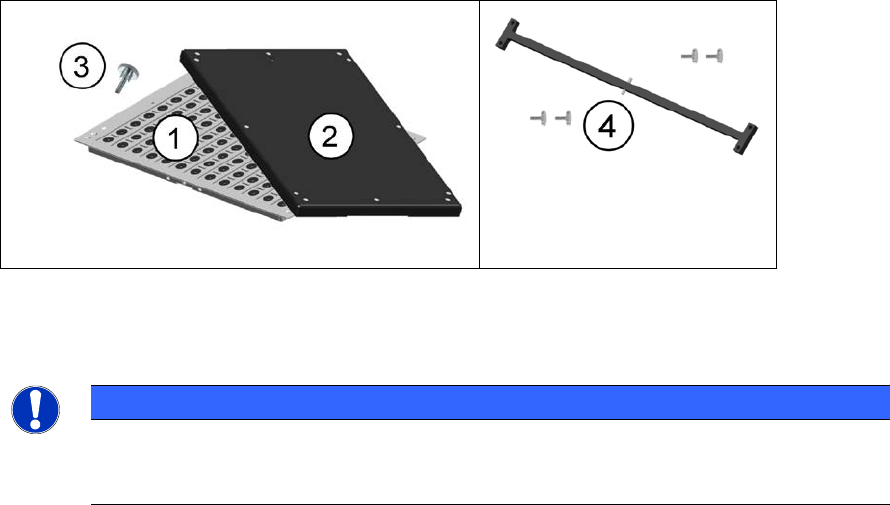

The Tray in Conveyor for ACT option, item no. [03125143-01] contains:
(1) Tray glass1, complete 03058749-01
(2) Cover for tray AVS, complete 03063446-01
(3) Knurled screw DIN 464 M4 x 12 03031103-01
(4) Long adapter (4 knurled screws included) 03056010S01
(5) Short adapter (4 knurled screws included) 03055995S01 not displayed
(6) Adapter 50 mm TWIN 03085310-01 not displayed
Figure 5-1: Contents of Tray in Conveyor for ACT option
The tray has the same size and form as the glass plate. Thus, it can be fed into the conveyor.
NOTICE
The option package does not contain any glass components!
When using the option, the glass components in the standard ACT tray have to be
rearranged into the "Tray Glass1, complete" of the option package.
