6-7 AIVEDT -ID [5] [6] Fig. 3F6 "Device Offset" T ab Sheet (3) [8] [7] Fig. 3F7 "Device Offset" T ab Sheet (4) [10] [9] Fig. 3F8 "Device Offset" T ab Sheet (5) 0606-009 2.1 Device Offset Dat…
6-6
AIVEDT-ID
0606-009
2.1.1 Device Offset
When the "Device Ofst" tab is pressed in the "Device Offset" tab sheet, the
following tab sheet appears.
[1]
[2]
[3]
Fig. 3F4 "Device Offset" Tab Sheet (1)
[4]
Fig. 3F5 "Device Offset" Tab Sheet (2)
2.1 Device Offset Data
6-7
AIVEDT-ID
[5]
[6]

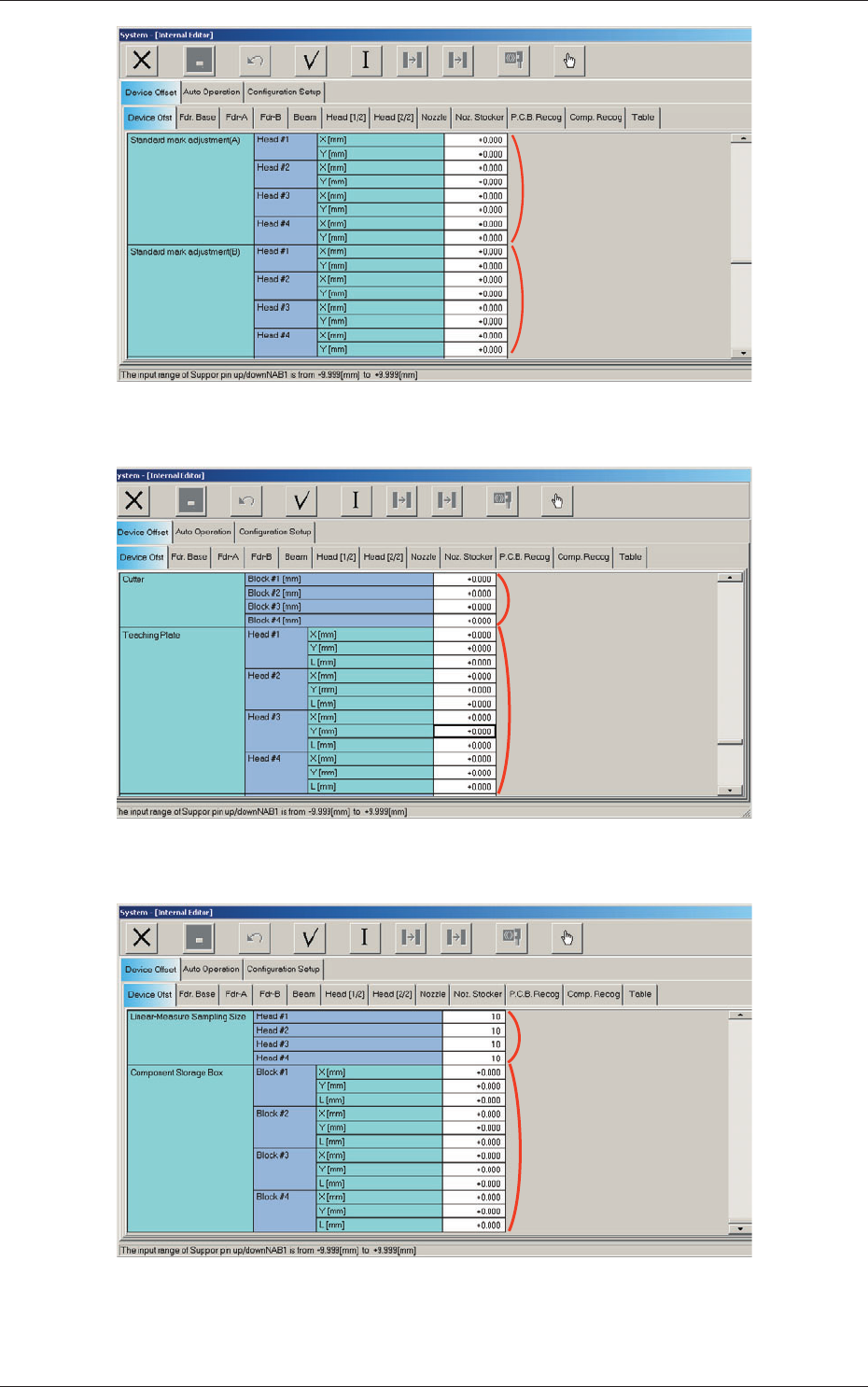

Fig. 3F6 "Device Offset" Tab Sheet (3)
[8]
[7]
Fig. 3F7 "Device Offset" Tab Sheet (4)
[10]
[9]
Fig. 3F8 "Device Offset" Tab Sheet (5)
0606-009
2.1 Device Offset Data
6-8
AIVEDT-ID
[1] Support pin up/down
NA and NC
B1 and B2 [mm]
This is the offset data for the origin position of the support pin up/down
axis which ascends or descends during PCB positioning.
A plu
s (+) value decreases the ascending stroke during PCB positioning.
[2] Conveyor Width
NL, NB and NR
W1 and W2 [mm]
This offset is used to adjust the conveyor width to the absolute values.
When the conveyor width is set up to the specified one based on
the positioning center, a difference will be caused in the dimension
between the actually measured value (the distance between the machine
p
ositi
oning center and each chute) and the half of the specified width. In
this case, enter the difference in each text box.
W1 Offset :
A plus value must be entered when the actually
measured width is narrower than the half of the
specified one.
W2 Offset :
A minus value must be entered when the actually
measured width is narrower than the half of the
specified one.

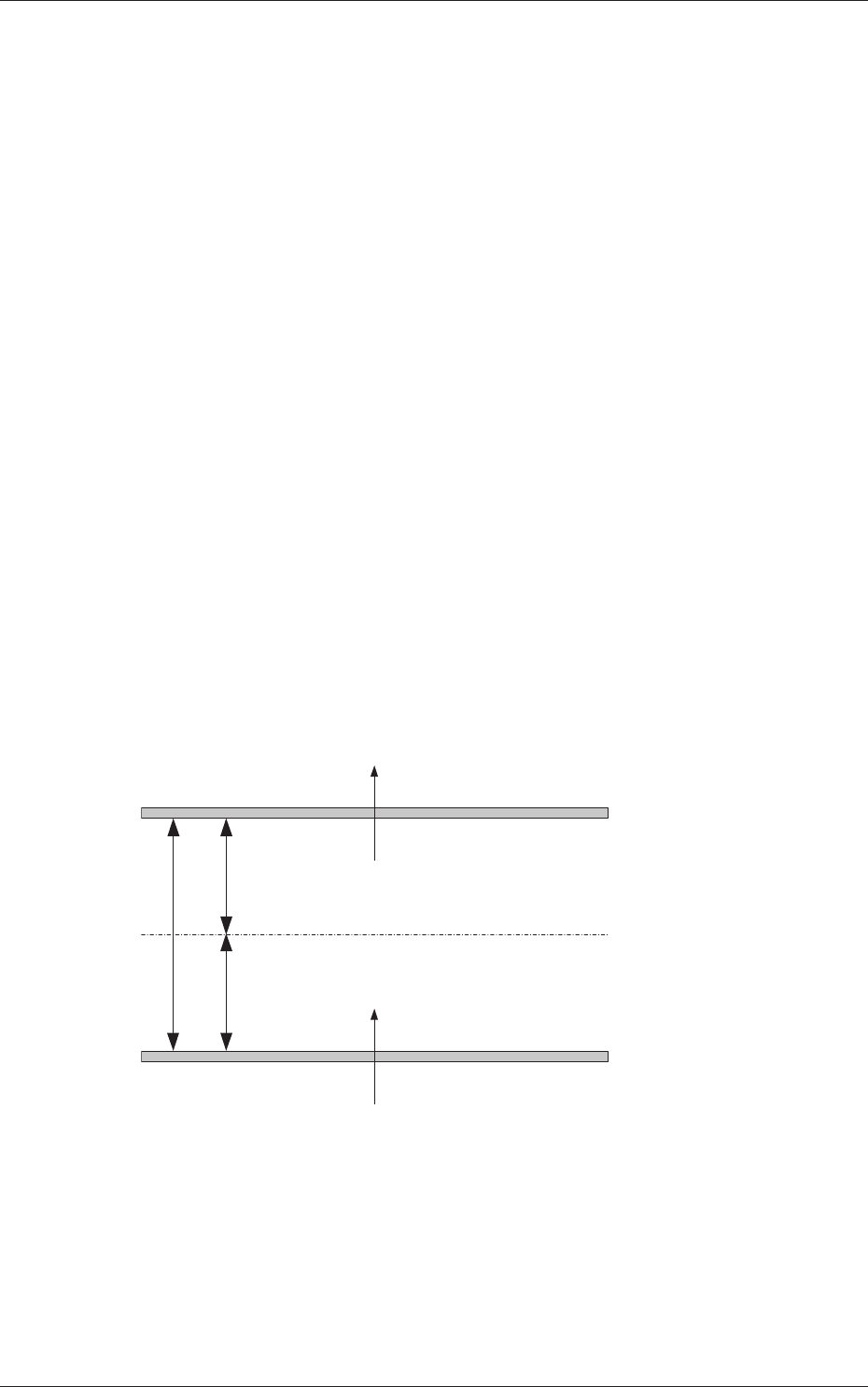

A
A/2
A/2
NL-W1
NR-W1
NB-W1
NL-W2
NR-W2
NB-W2
(+)
(-)
(+)
(-)
Fig. 3F9
