Support Media 2.0 12/2014 Edition

4.4.4 Download and install manually option

After you selected the Download and install manually option, Prerequisite Analyzer will

show you a list of missing software packages as shown in the following picture.

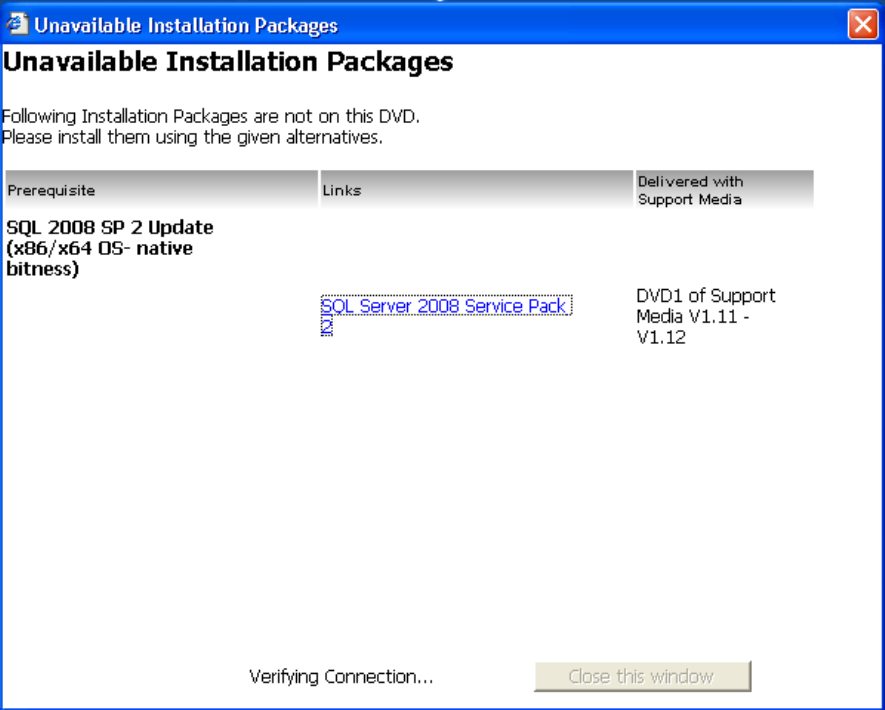

Figure 4-8: Dialog for manual download and installation of missing components

The dialog will display the following information

 The description of the required installation package

 A link to the manual download of the installation package (if available)

 A note, describing where the installation package can be found on a former Support

Media version if it is available.

 For some packages, a link to the appropriate installation documentation might be

shown

► Use this list to retrieve and install the missing software packages manually

► After you installed the missing packages manually, close and restart Prerequisite

Analyzer to detect the additionally installed software and continue preparing your

computer.

Support Media 2.0 12/2014 Edition

4.4.5 Downloading for multiple configurations

If you plan to prepare multiple (different) computer configurations, you may want to

download all missing required software packages in advance.

To do this, you have to perform the following steps.

► Insert the Support Media DVD / mount the ISO file of Support Media and execute the

file Autorun.cmd, if no auto run dialog appears.

The Software Launcher application opens.

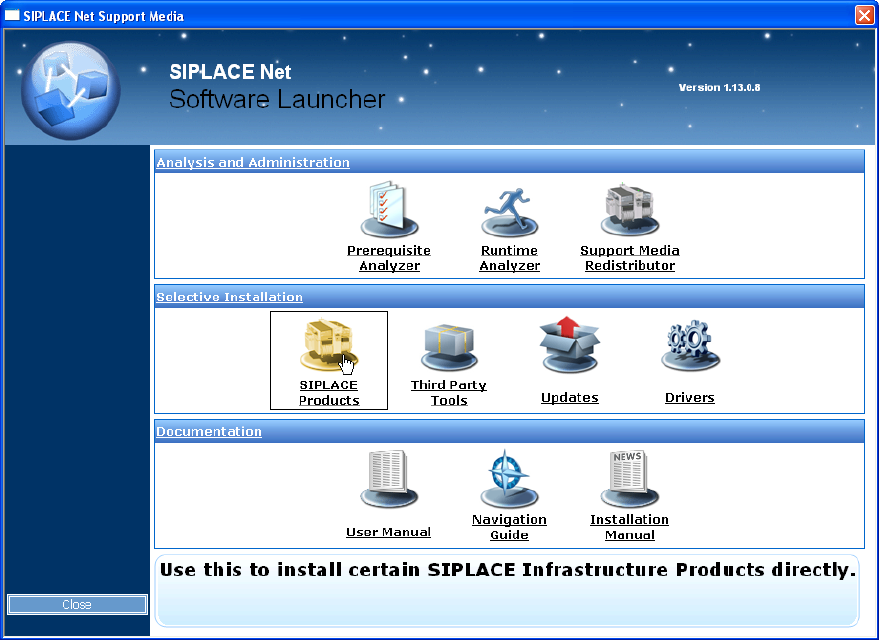

Figure 4-9: Selecting SIPLACE Products in Software Launcher

► In the Software Launcher application, select SIPLACE Products.

Support Media 2.0 12/2014 Edition

The SIPLACE Installer application opens.

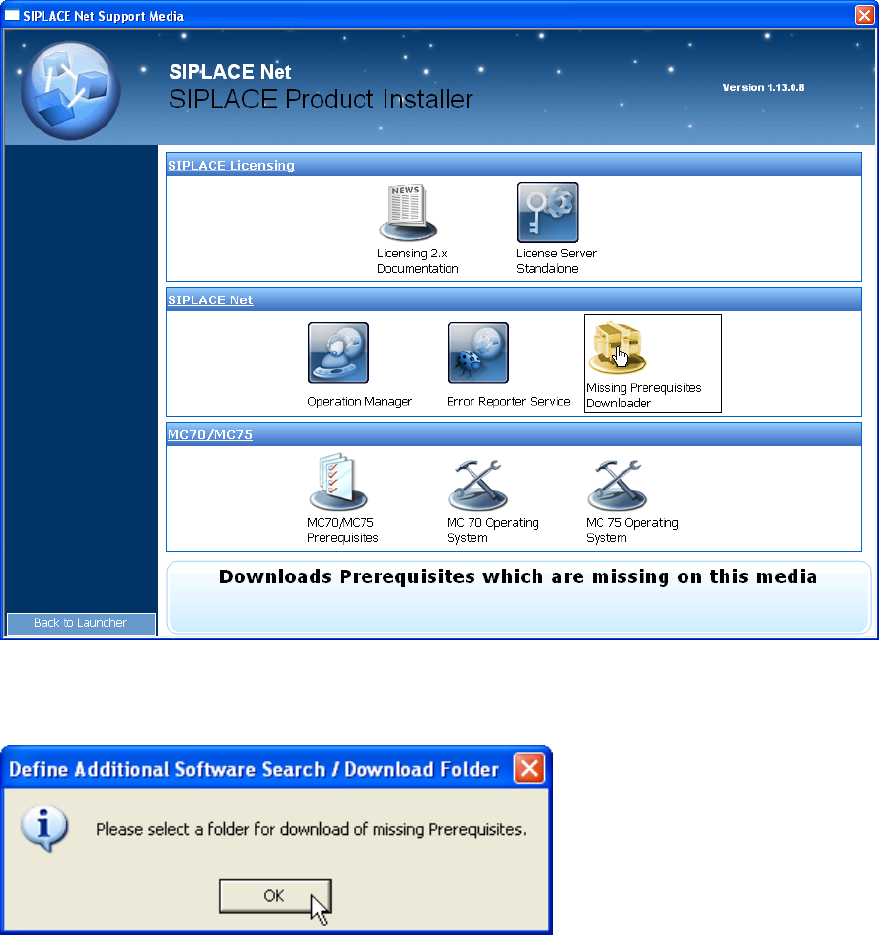

Figure 4-10: Selecting Missing Prerequisites Downloader in SIPLACE Installer application

► Select the option “Missing Prerequisites Downloader”

Figure 4-11: Hint message

► Click OK.
