2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING
2.3 SOFTWARE INTERFACE
GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021 17
9. Select Maintenance.
10. Select Machine Setup.
11. Select Options.

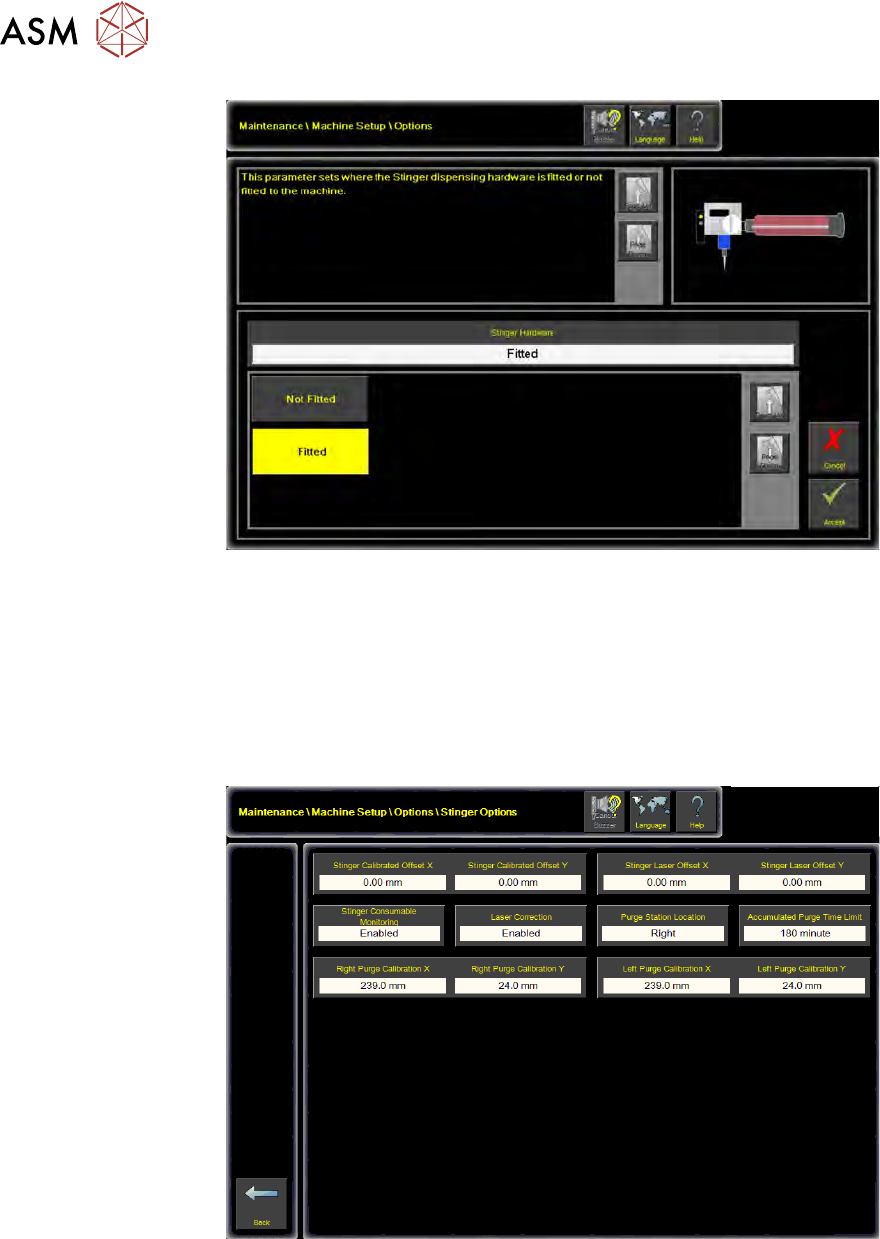

12. Ensure that Stinger Hardware is set to Fitted.
NOTE
Stinger uses a laser to automatically calibrate product height; this data is used for surface
measurements and height adjustments. There is also functionality available to manually set
the contact height (see Product Setup Functionality for details).
2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING
2.3 SOFTWARE INTERFACE
18 GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021
13. Select Accept.
2.3.2 Machine Setup Options
1. Select Maintenance.
2. Select Machine Setup.
3. Select Options.
4. Select Stinger Options.
2 STINGER, A GUIDE TO ADHESIVE DOT DISPENSING
2.3 SOFTWARE INTERFACE
GUIDE TO ADHESIVE DOT DISPENSING STINGER 03/2021 19

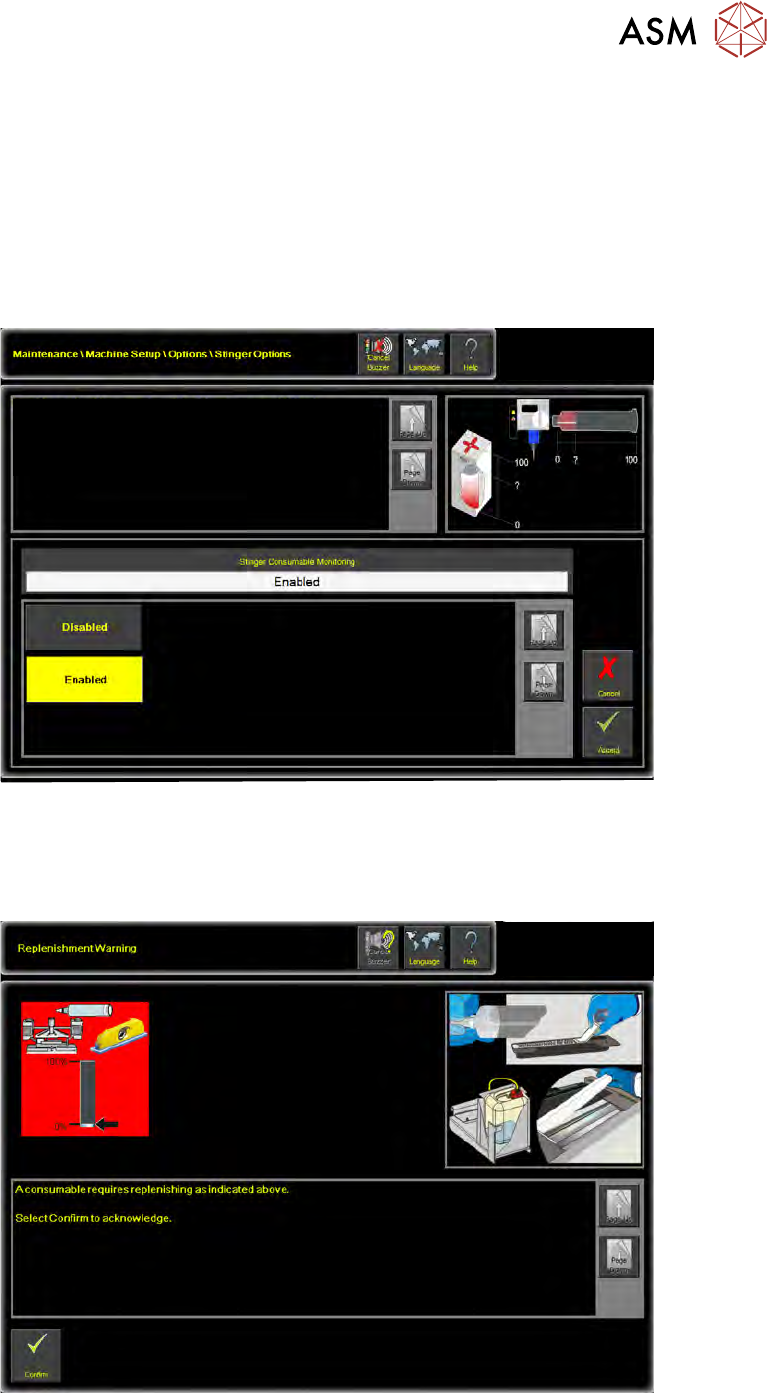

2.3.2.1 Stinger Consumable Monitoring
Stinger Consumable Monitoring enables the reporting of the consumable level - adhesive in the
syringe or spent adhesive in the purging station.
As the level of the adhesive diminishes in the syringe, a capacitive sensor at the end of the syringe
detects this; Sensors and Motors section of the manual refers. The low level of adhesive is repor-
ted in a consumable warning window.
1. Select Stinger Consumable Monitoring.
2. Select Enabled.
This parameter enables or disables the reporting of Stinger Consumable
Material level.
Additional Information
A measure is taken for both the purge pot (if fitted) and the syringe.
3. Select Accept.
With this functionality enabled, the user is expected to confirm acknowledgement of the consum-
able warning and can elect to take further action, such as, stop the print run to open the printer
cover and replace the syringe. Refer to the Product Changeover section of this manual.
