PN 141-400 www.formfactor.com Positioners and Posit ioner Accesso ries • 92 Revision 57, February, 2023 Probe Station A ccessories 148 72 2 — V CP11 0 , DC T ria x , Cry o , PMC2 00/ P AC 20 0 Feat ur es • Use d for IV/C…
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 91
Revision 57, February, 2023 Probe Station Accessories
140968 — VCP110, High Vacuum, HF East-West, PLV50
Features
• Use d for RF probing in vacuum/
cryogenic environments
• Use d with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF straight
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PLV50
140969 — VCP110, High Vacuum, HF Arm, North-South,
PLV50
Features
• Use d for RF probing in vac uum/
cryogenic environments
• Use d with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF right-angled
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PLV50
147161 — VCP110, HF North-South, Cryo, PMC200/
PAC200
Features
• Used for RF probing in vacuum/
cryogenic environments
• Used with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Right-angled HF arm includes thermal contacts for cooling Cryo
|Z|Probe
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
147160 — VCP110, HF East-West, Cryo, PMC200/
PAC200
Features
• Used for RF probing in vacuum/cryogenic
environments
• Used with high performance RF probes
• VCP110 high vacuum probe positioner
• Stainless steel main body
• Magnetic foot adapter
• HF arm straight includes thermal contacts for cooling Cryo |Z|
probe
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 92
Revision 57, February, 2023 Probe Station Accessories
148722 — VCP110, DC Triax, Cryo, PMC200/PAC200
Features
• Use d for IV/CV/RF probing
and failure analysis in
vacuum/cryogenic
environments
• Use d with high performance
DC or RF p robes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm DC triax with vacuum proof triax cable with connector to
electrical feedthrough flange
• Thermal contacts for probe co oling
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
PN 141-400 www.formfactor.com Probe Card Holders • 93
Revision 57, February, 2023 Probe Station Accessories

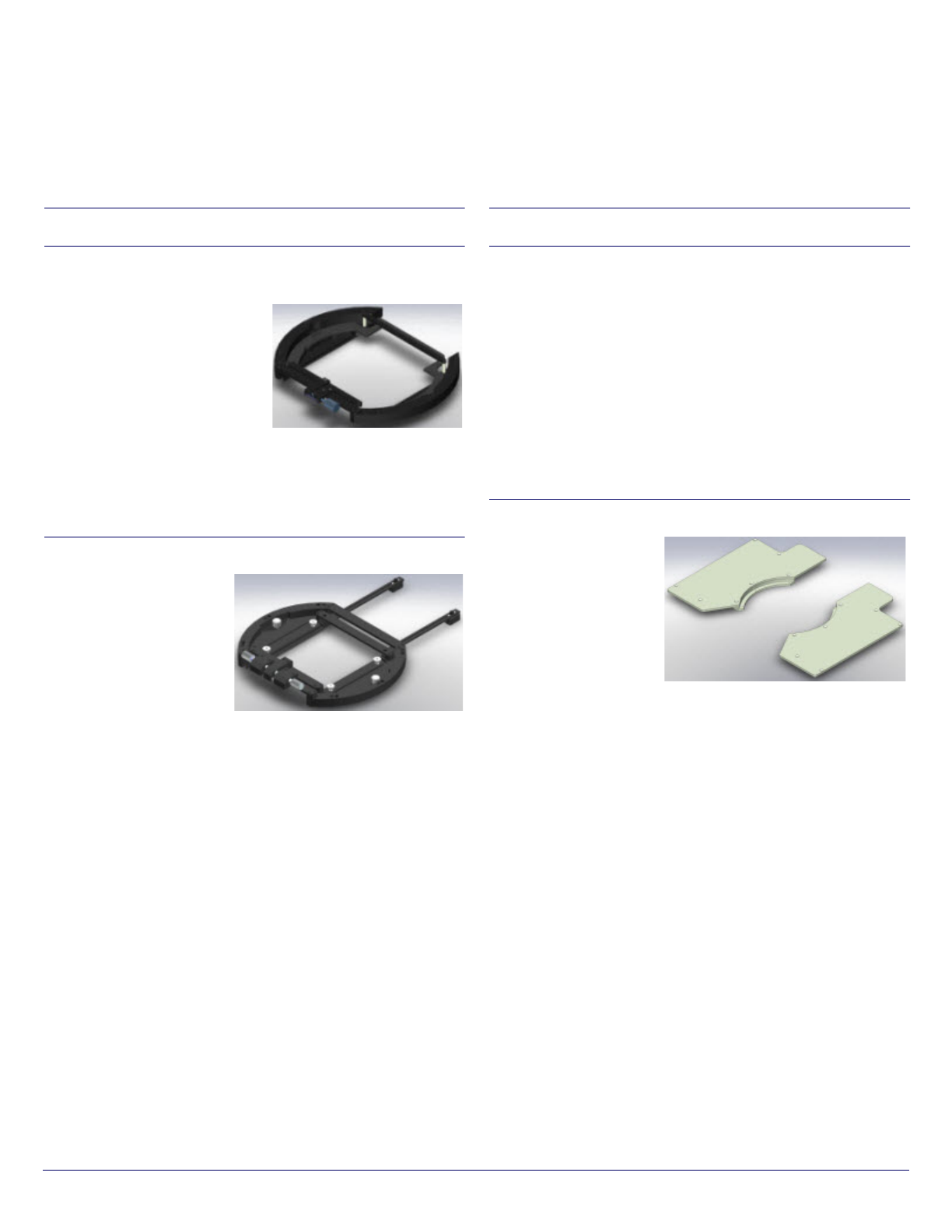

Probe Card Holders
Probe Card Holders and Accessories
PA, PM, DSP
100529 — Probe Card Holder, 6x7 in
Features
• Accepts 15 0 mm (6 in) wide
probe card
• Probe card located below platen
• Flexible probe arms
recommended if DPP3xx is u sed
• Low profile probe card holder with
bridge mounted 5° Theta and planarity adjustment
Compatibility
• PA300, PM300, PA200, PM8, PM5, all DSP stations
129912 — Probe Card Holder, 4.5 x 7 in to 4.5 x 11 in
Features
• Top loader/front loader
functionality
• Maximum probe card
thickness: 23 mm (0.9 in),
front loading
• Very stiff design
• Requires Platen Insert Ring
PH/PC for use in PM300BEP (132521)
Specifications
• For standard formats:
– Width: 114 mm (4.5 in)
– Length: 178- 279 mm (7-11 in)
• Theta adjustment range: 5°
• Minimum tip drop: 2 mm (0 .08 in)
Compatibility
• PA300, PM300, PA200 and PA200 BlueRay, PM8, PM5, al l DSP
stations
PROBE CARD HOLDER ACCESSORIES
51127 — Celadon Cable Harness
Features
• 25 triaxial cable harness for Celadon probe cards (single site, multi
site), MiniTiles or VersaTiles, leng th 2 meter (6.6 ft)
Note: The double number o f cables in the harness or even several
harnesses are required for Kelvin Connections (two cables to each
probe)
• Cable end to the prober: 26 pole microcoax connector AMP (1
Ground)
• Cable end to test meter: 25 3-lug triax p lugs
100651 — Insert for Probe Card Holder
Features
• Used with probe cards
with probe card holder
and HF platen
• When DPP positioners
are used, RPP305-B
must be removed
Compatibility
• MPS150, EPS150, PM8, PM300, PA200, PA300 with RF platen,
