CM300xi
CM300xi with TopHat
CONNECTION PANELS
167-117 — Connection Panel
Features
• Complete kit of c able con nection panels and accessories
• Optimized for CM300xi and Elite 300 universal accessory
mounting rail system
• All accessories can b e mounted on the platen simultaneously, in
any location (lef t, right and back sides of the probe st ation platen).
Kit Contents
• 2 Triax connection panels
– Each panel features 8 Triax (3-lug) feed through connectors (f),
and 2 BNC (2-lug) connectors (f).
– Panel connections support single triax cables and Keysight dual
triax SMU cable assemblies
– (For Keysight Quadrax SMU connections, please contact the
factory).
• 1 coaxial connection panel – each panel features 10 BNC (2-lug)
connectors (f).
• 2 vacuum manifolds – each manifold features 5 vacuum inlets with
integrated on/off pull switches
• 2 positioner mounts – used for holding DPP2xx/DPP3xx
positioners above the platen while changing probe tips
Compatibility
• CM300xi
780-00937 — Triax Connection Panel
Features
• Optimized for CM300xi and Elite 300 universal accessory
mounting rail system
• Panels can be mounted on the platen in any location (left, right and
back sides of the probe station platen)
Kit Contents
• 2 Triax connection panels:
– Each panel features 8 Triax (3-lug) feed through connectors (f),
and 2 BNC (2-lug) connectors (f)
– Panel connections s upport single triax cables and Keysight d ual
triax SMU cable assemblies
– For Keysight Quadrax SMU connections, please contact the
factory)
Compatibility
• CM300xi
N
OTE
Compatible accessories described in th is section and throughout this catalog ca n be configured
with the FormFactor CM300xi or CM300 probe systems.
i

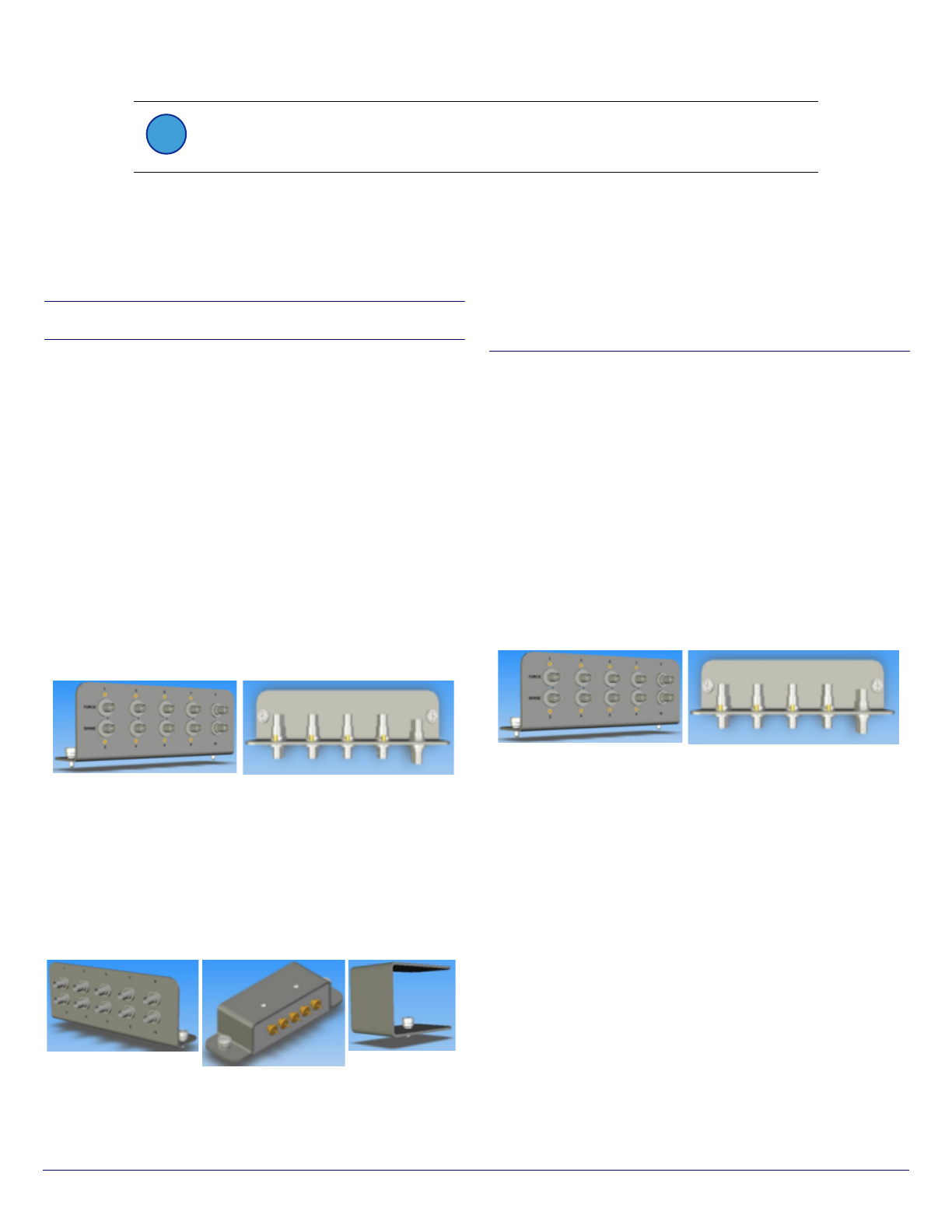

Triax c onnection panel
(front view)
Triax connection panel
(top view)
Positioner
mount
Vacuum manifold
Coaxial connection
panel
Triax c onnection panel
(front view)
Triax connection panel
(top view)
PN 141-400 www.formfactor.com CM300xi • 2
Revision 57, February, 2023 Probe Station Accessories
MOUNTING KITS, PLATES, AND MISCELLANEOUS
ACCESSORIES

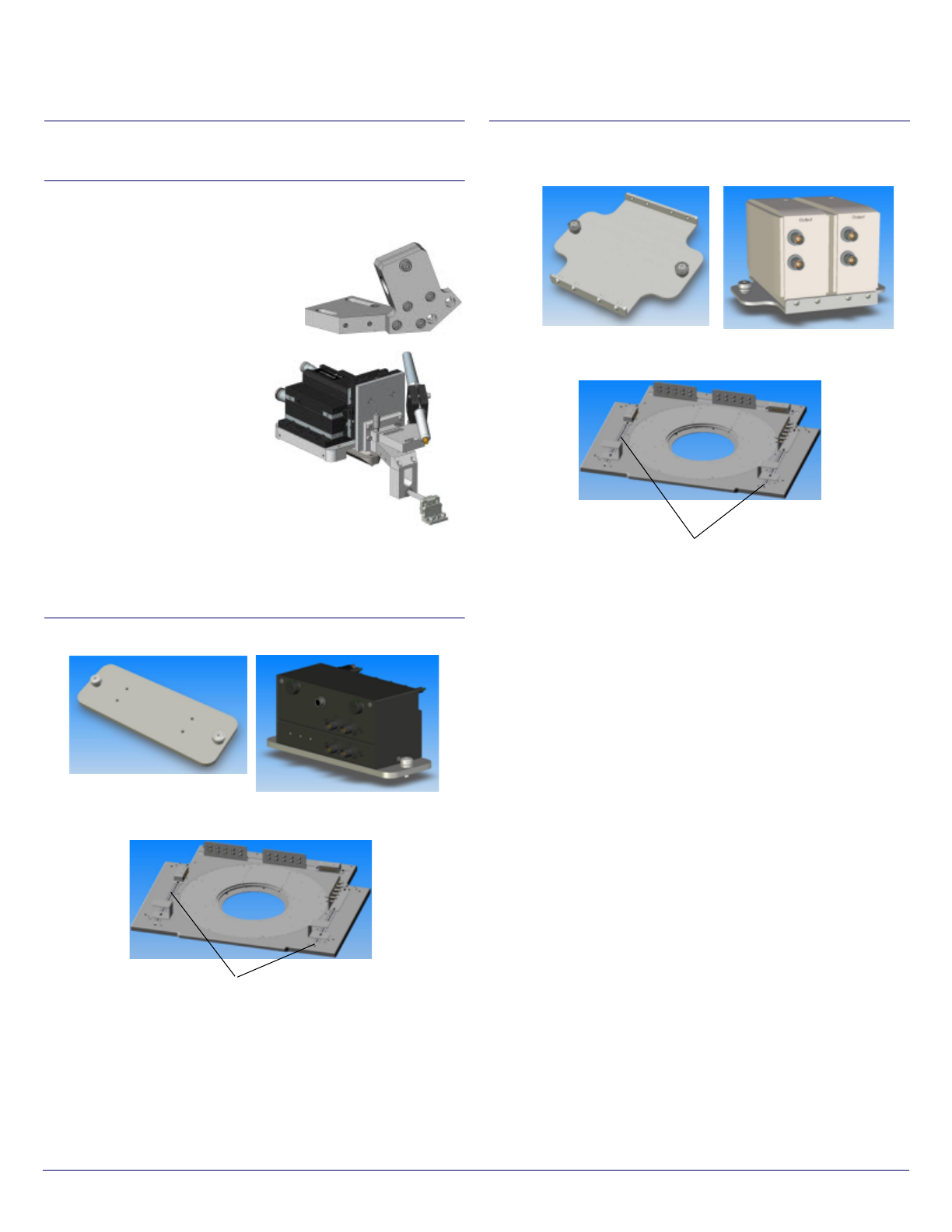

143-428 — Keysight 42941A Mounting Kit
Features
• Mounting bracket to hold Keysight
42941A probe
• Compatible with CM300xi and Elite
300 RPP305 positioners
Kit Contents
• 2 cables:
– SMA (m) to SMA (m)
– 120 mm (4.7 in)
• Mounting bracket for
RPP305-EL positioner
Compatibility
• CM300xi, Elite 300
143-429 — Mounting Plate for B1500A SCUU
Compatibility
• CM300xi, Elite 300
144-422 — Mounting Plate for B1500A ASU, E5288A
Atto Sense Unit
Compatibility
• CM300xi, Elite 300
Mounting bracket shown on
RPP305 positioner with Keysight
high impedance probe
Mounted plate
Plate mou nts on universal
accessory mounting rails
Keysight SCUU
mounted to plate
Mounted plate
Keysight ASU
mounted to plate
Plate mou nts on universal
accessory mounting rails
