PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 124
Revision 57, February, 2023 Probe Station Accessories
Summit DC Probe Arms and Mounts
104-030K — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for RPP305-EW-SU positioner
Features
• Ena bles Kelvin connection to DCP style
probes on East/West RPP305
positioners
• Sup ports Summit 11/12K and S300
systems
Specifications
• Instrument connections are female mini-
triax connectors
• Probe connections are ca bles with
SSMC male fo r use with DCP style probes
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max curren t = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
104-856K — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for RPP305-NS-SU Positioner
Features
• Ena bles Kelvin connection to DCP style pr obes on North/South RF
positioners
• Sup ports Summit 11/12K and S300 systems
Specifications
• Instrument connections are female mini-triax c onnectors
• Probe connections are ca bles with SSMC male for use with DCP
style probes
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max curren t = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
114-818 — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for DPP2xx
Features
• Enables Kelvin connection to DCP style
probes on DPP2xx positioners
• Supports Summit 11/12K and S300
systems
Specifications
• Instrument connections ar e female mini-
triax connectors
• Probe connections are cables with SSMC
male for use with DCP style probes
• Usable from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Volts
• Max current = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
114-842 — Needle Probe Mount and Jack Lock Holder
for DPP2xx
Product Features
• Enhanced probe mount for PTT
needle probes (45°)
• Easy p robe needle replacement
without any tools
• Top hat compatible
• Will work on positioners
equipped for DCP probes
• Uses mini p in jack style or SSMC
cable connection
Kit Contents
• Includes arm and mounting hardware
• Recommended for use with PTT-XX/4-25 (45°) style needles (not
included)
Stat ion Compatibility
• Summit, S300, Alessi
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 125
Revision 57, February, 2023 Probe Station Accessories

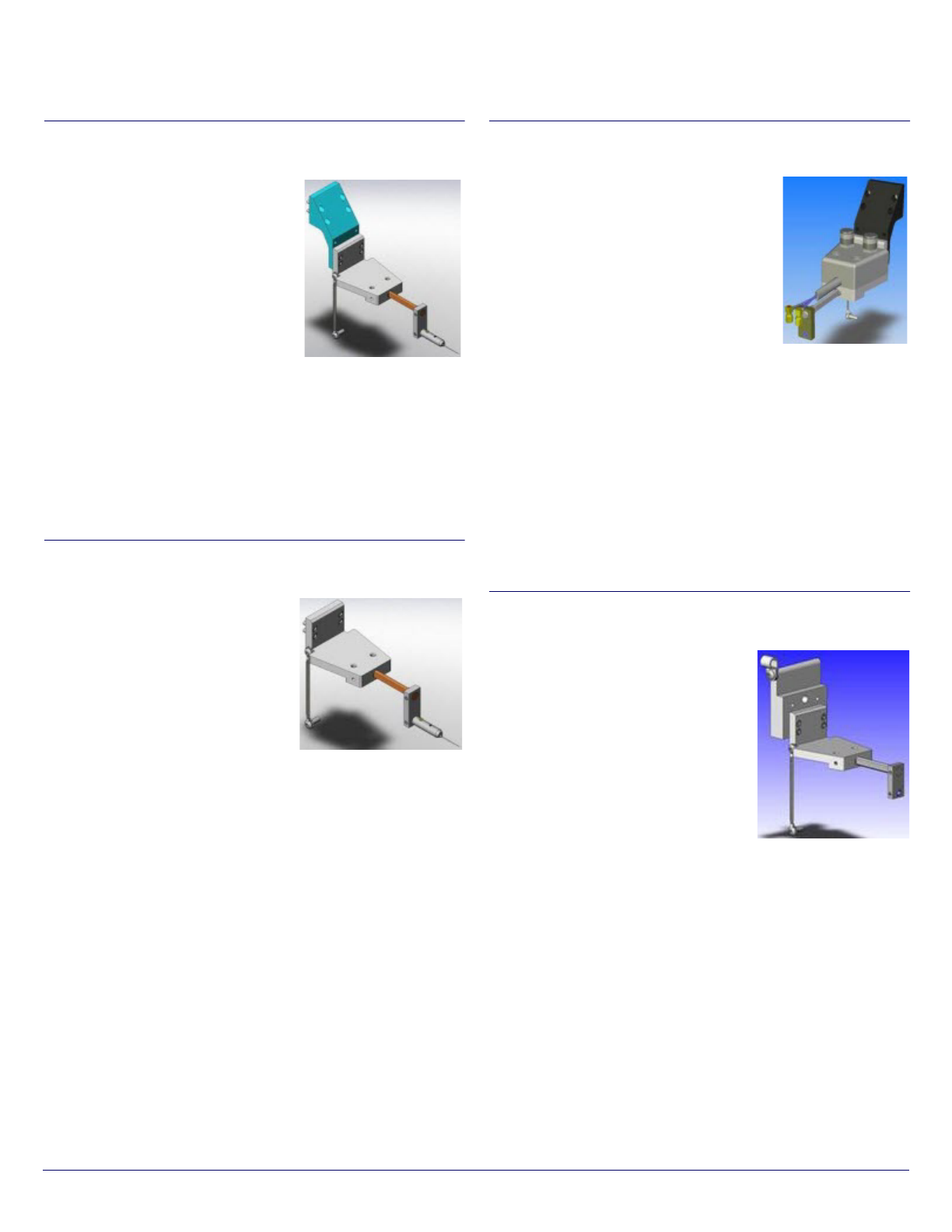

114-843 — Needle Probe Mount and Jack Lock Holder
for MS1 Series Positioners
Features
• Needle probe h older (PTT style
needles) for MS1 series
programmable positioners
• Jack lock style holding mechanism
• Top hat compatible
• Will work on positioners equipped for
DCP probes
• Use s mini pin jack style cable
connection
Kit Contents
• Includes arm and mounting hardware
• Rec ommended for use with PTT-XX/4-25 (45degree) style needles
(not included)
Compatibility
• Summit, S300, Alessi
114-847 — Needle Probe Mount and Jack Lock Holder
for MH2 Positioners
Features
• Needle probe h older (PTT style
needles) for MH2 series positioners
• Jack lock style holding mechanism
• Top hat compatible
• Will work on positioners equipped for
DCP probes
• Use s mini pin jack style cable
connection
Kit Contents
• Includes arm and mounting hardware
• Rec ommended for use with PTT-XX/4-25 (45degree) style needles
(not included)
Compatibility
• Summit, S300, Alessi
115-596 — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for MS1 Series Positioners
Features
• Enables Kelvin connection to DCP style
probes on MS1 series programmable
positioners
Specifications
• Instrument connection are female mini-triax
connectors
• Probe connections are cables with SSMC
male for use with DCP style probes
• Usable from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Volts
• Max current = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
116-031 — DCP Probe Mount for DPP2xx, Direct Probe/
Cable Conn (SSMC)
Features
• Mounting bracket for DCP probes, for
use on DPP2xx positioners
• To be used wi th direct cable from
instrument to DCP probe (e.g., 105-540
or 124-562 BNC to SSMC cables
• Top Hat compatible
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 126
Revision 57, February, 2023 Probe Station Accessories
129-116 — PTT Probe Mount (MMP-01/J) and Adapter
Kit for DPP2xx
Features
• For use with DPP2xx positioners
• Brass needle holder can be user-
formed as nee ded
• Use s pin jack style connection
(e.g., MAE cables), one included
• Has gross Z adjustment v ia
thumb screw on holder arm
• Holder also pivots
• Not recommended for Top Hat use
Kit Contents
• Mounting hardware
• Mounting bracket
• Probe holder arm
• MAE-44/18 cable 46 cm (18 in)
Compatibility
• Summit, S300 (non TopHat), Alessi
