DC PROBE ARMS, MICROALIGN
138687 — Probe Arm, DPP2xx/DPP3xx, Triax
Features
• For use with MicroAlign systems
• Highly isolated needle clamp for standard
single tips like PTT needles
• Stainless steel design for h igh rigidity and
minimum thermal drift
• Requires adaptation unit 138697 for use with
DPP3xx-S/DPP450-S
Specifications
• 0.75 m (2.5 ft) 50 Ohm low noise triax cable and 3 lug Triax plug
• DC leakage <10 fA at ambient temperature
• For use with temperature chucks up to 300°C (572°F)
Compatibility
• PA300 MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
138690 — Probe Arm, DPP2xx/DPP3xx, Triax, Kelvin
1Tip
Features
• For use with MicroAlign systems
• For triaxial I/V-, Kelvin- and C/V (with CX-TRX
adapter) tests
• Stainless steel design for h igh rigidity and
minimum thermal drift
• Highly isolated needle clamp for single tips
like PTT needles (signal from force and sense already connected
inside chassis)
• Connector sockets for CommonRing cables (C/V-Test, 1 cable
included), guard potentials from force and sense are connected to
these sockets
• Requires adaptation unit 138697 for use with DPP3xx-S/DPP450-S
Specifications
• 2 x 0.75 m (2.5 ft) 50 Ohm low-noise triax cable and 3 lug Triax
plug
• For use with temperature chucks up to 300°C (572°F)
Compatibility
• PA300 MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
138697 — Adapter for Probe Arms DPP2xx/DPP3xx to
Positio ner DPP3xx
Features
• Converts DPP3xx-S/DPP450-S front
plate for use with DPP2xx/DPP3xx
probe arms for DC and RF
applications on MicroAlign systems
Compatibility
• MPS150, EPS150, CM300xi stations, PM/PA stations + DPP3xx-S,
DPP450-S (and former PH15 0)
138700 — Probe Arm, DPP2xx/DPP3xx, Pico Probe
Features
• For MicroAlign systems
• Holding fixture for Active Pico probes from
GGB Pico probe 10…34 (Pico probe not
included)
• Stainless steel design for high rigidity and
minimum thermal drift
• Requires Test Equipment Interface 144987
for use at MicroAlign Adva nced systems
• Requires adaptation unit 138697 for use with DPP3xx-S/DPP450-S
Compatibility
• PA300 MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
144866 — Probe Arm, DPP2xx/DPP3xx for DCP Probe
Features
• For MicroAlign systems
• For triaxial I/V-, Kelvin-, C/V (with CX-TRX
adapter) and 1/f applications
• Holding fixture for advanced DC coaxial
probes like AP&T Probes, DCP and
DCP-HTR probes
• Stainless steel design for high rigidity and minimum thermal drift
• Requires adaptation unit 138697 for use with DPP3xx-S/DPP450-S
• Includes (2) 0.7 m (2.3 ft) cables, 3-lug Triax-SSMC for IV an d
Kelvin measurements
Specifications
• DC leakage <10 fA at ambient temperature
Compatibility
• PA300 MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 112
Revision 57, February, 2023 Probe Station Accessories

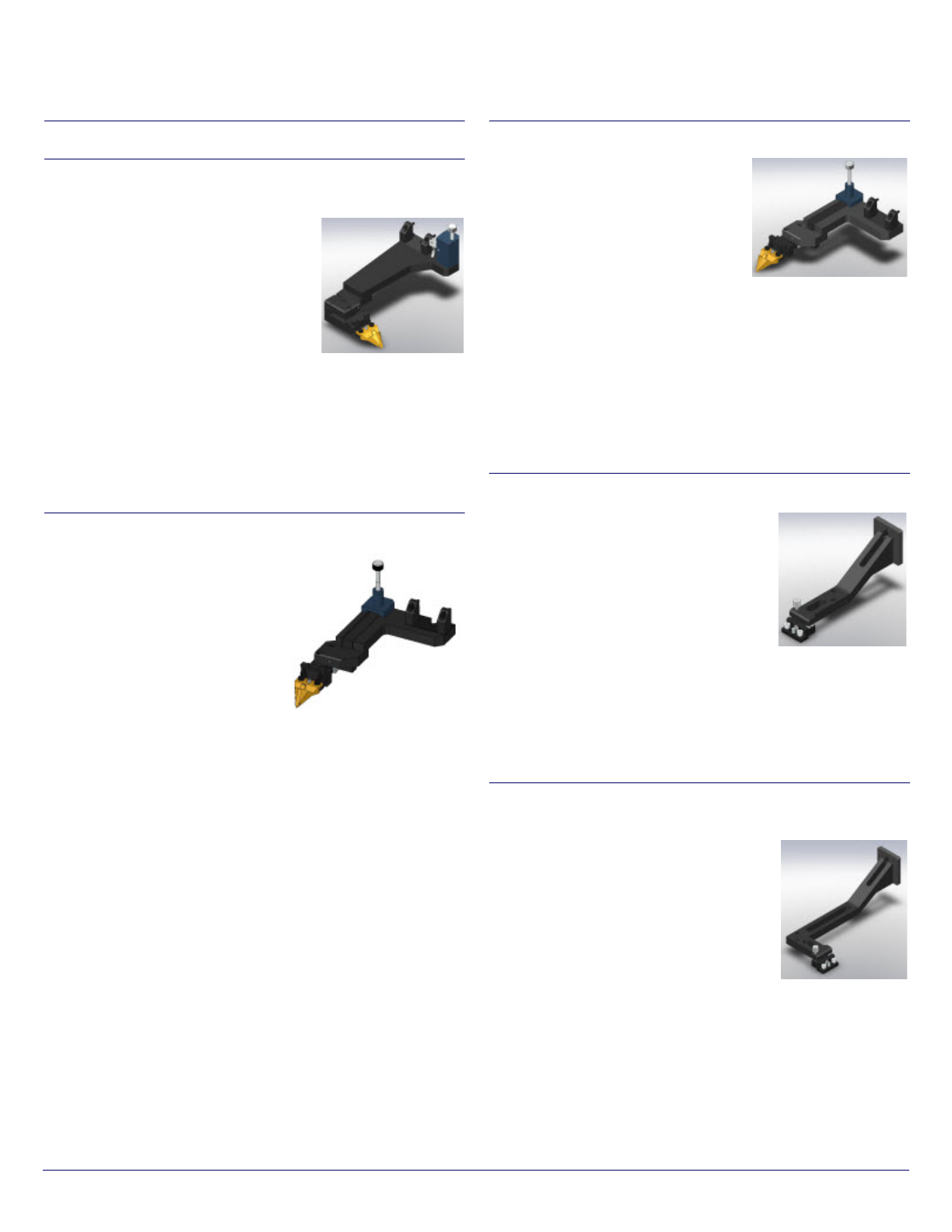

RF PROBE ARMS, MICROALIGN
133302 — Probe Arm, RPP305, North-S outh
Features
• For MicroAlign systems
• 4 probe setup
• For adaptation of HF probes or probe
wedges
• For positioning the probe at front or rear
side of DUT
• Probe mounting plate can be levelled, adjustment drive screw
located at positioner end of the arm for easier op eration
• Requires HF add-on platen or RPP305-M
• For use with RPP305 positioners
Compatibility
• PM300PS, PA300 MicroAlign + RPP305 (and former PH25 0)
133303 — Probe Arm, RPP305, East-West
Features
• For MicroAlign systems
• 4 probe setup
• For adaptation of HF probes or
probe wedge s
• For positioning the probe at left or
right side of DUT
• Probe mounting plate can be
levelled, adjustment drive screw
located at positioner end of the arm for easier op eration
• Requires HF add-on platen or RPP305-M
• For use with RPP305 positioners
Compatibility
• PM300PS, PA300 MicroAlign + RPP305 (and former PH25 0)
134006 — Probe Arm, RPP305, East-West
Features
• For MicroAlign systems
• To accompany 133303 to place two
RPP305 (left and right) together in
front of the operator
• For adaptation of HF probes or probe
wedges
• For positioning the pr obe at left or right side of DUT
• Probe mounting plate can be levelled, adjustment drive screw
located at end of the arm for easier operation
• Requires HF add -on platen on probe platen or RPP305-M
• For use with RPP305 positioners
Compatibility
• PM300PS, PA300 MicroAlign + RPP305 (and former PH250)
144777 — Probe Arm, RPP210-S, East-West
Features
• For use with HF probes o r wedges
• Positions the probe at the left or right side
of DU T
• Horizontal probe mounting plate can be
levelled
• For use with HF platen and MicroAlign
• For use with RPP210-S (and former
PH110) positioners
Compatibility
• All PM/PA stations with RF platen, CM300 and PA300 MicroAlign,
RPP210-S (and former PH110)
144778 — Probe Arm, RPP210-S, North-South,
MicroAlign
Features
• For MicroAlign systems
• For use with HF probes o r wedges
• Positions the probe at th e front or rear side
of DU T
• Horizontal probe mounting plate can be
levelled
• For use with HF platen and MicroAlign
• For use with RPP210-S positioners
Compatibility
• All PM/PA stations with RF platen, CM300xi and PA300
MicroAlign, RPP210-S (and former PH110)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 113
Revision 57, February, 2023 Probe Station Accessories
RF PROBE ARMS, PA200 BLUERAY
142139 — Probe Arm, RPP305-S East, Right,
2 Positioners, BlueRay
Features
• For positioning the probe on the right side of
DUT
• With integrated probe planarization
Compatibility
• RPP305-B-S, RPP305-M-S
142140 — Probe Arm, RPP305-S West,
Left, 2 Positioners, BlueRay
Features
• For positioning the probe on the left side of
DUT
• With integrated probe planarization
Compatibility
• RPP305-B-S, RPP305-M-S
142143 — Probe Arm, RPP305-S East-West,
4 Positioners, BlueRay
Features
• For positioning the probe on the left or
right side of DUT
• With integrated probe planarization
Compatibility
• RPP305-B-S, RPP305-M-S
142148 — Probe Arm, RPP305-S North-South,
4 Positioners, BlueRay
Features
• For positioning the probe at the front or rear of
DUT
• With integrated probe planarization
Compatibility
• RPP305-B-S, RPP305-M-S
PROBE ARM, OPTICAL FIBER
145533 — Probe Arm, Optical Fiber 125 µm, DPP2xx
Features
• Allows placement of glass fiber over the wafer
• Mount to DPP2xx
• Fiber tip visible in microscope image
• Front part of arm can be horizontally rotated
• Other fiber adaptations on request
Specifications
• Ferrule diameter 250 µm (9.8 mils) for 125 µm (4.9 mils) fiber cores
and jacket
• Fiber angle vertical adjustable 80°-90°
Compatibility
• DPP2xx (and former PH110)
PROBE ARMS, PM5 POWER SYSTEMS
145303 — Probe Holder Short
Features
• Stainless steel design for high rigidity
and minimum thermal drift
• To connect any individual probe to a
RPP210 positioner for use with PM5
Power system
Compatibility
• PM5 Power
144777 — Probe Arm, RPP210-S, East-West
Features
• For use with HF probes o r wedges
• Positions the probe at the left or right side
of DU T
• Horizontal probe mounting plate can be
levelled
• For use with HF platen and MicroAlign
• For use with RPP210-S (and former
PH110) positioners
Compatibility
• All PM/PA stations with RF platen, CM300 and PA300 MicroAlign,
RPP210-S (and former PH110)
