PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 104
Revision 57, February, 2023 Probe Station Accessories
100696 — Probe Arm, DPP2xx/DPP3xx, Kelvin, 1 Tip
Features
• (2) 2 m (6.5 ft) coaxial cables, 50 Ohm and
BNC connector
• Double arm design for improved stiffness,
with s ingle tip clamping (gold plated)
• Shield connection can be changed
• Connected for LCR measurements as
standard
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
100715 — Probe Arm, DPP2xx/DPP3xx, Adjustable,
Coax, BNC
Features
• 2 m (6.5 ft) 50 Ohm coaxial cable and BNC
plug
• Four hinges for individual arm profiling
• Gold p lated needle clamping
Specifications
• Res istanc e: >100TOhm
• Leakage: <120fA
• Capacitance: <300pF
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
131844 — Probe Arm, DPP2xx/DPP3xx, Coax, High
Temperature
Features
• For long term tests at temperatures higher
than 100°C and always with temperature
chucks up to 300°C
Specifications
• 1.5 m (6 ft) 5 0 Ohm c able with coaxial plug
BNC
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
133838 — Front Plate for DC Arms
on RPP2xx Positioners
Features
• Used for mounting DC Arms for ope n
systems on RPP2xx RF positioners
• RF arm must be disassembled from the
RPP2xx positioner
Specifications
• Used to moun t 1 (each) of 100489/100524/100525/100560/
100561/100696/100715/131844
• Not for use with 144139
Compatibility
• EPS150/200, PM8, PA200, PM300 + RPP2xx
144139 — Probe Arm, DPP2xx/DPP3xx,
Flex, DCP Probes
Features
• High rigidity
• Stainless steel design for high rigidity and
minimum thermal drift
• Requires adaptation unit 138697 for use with
DPP3xx/DPP450
• DCP probes, cables and conn ectors not included base
Compatibility
• MPS150, EPS150, all PA/PM open systems (exce pt MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH150,
PH400)
Note: DPP3xx-S and DPP450-S (and former PH15 0, PH400) require
138697 in order to mount this arm.

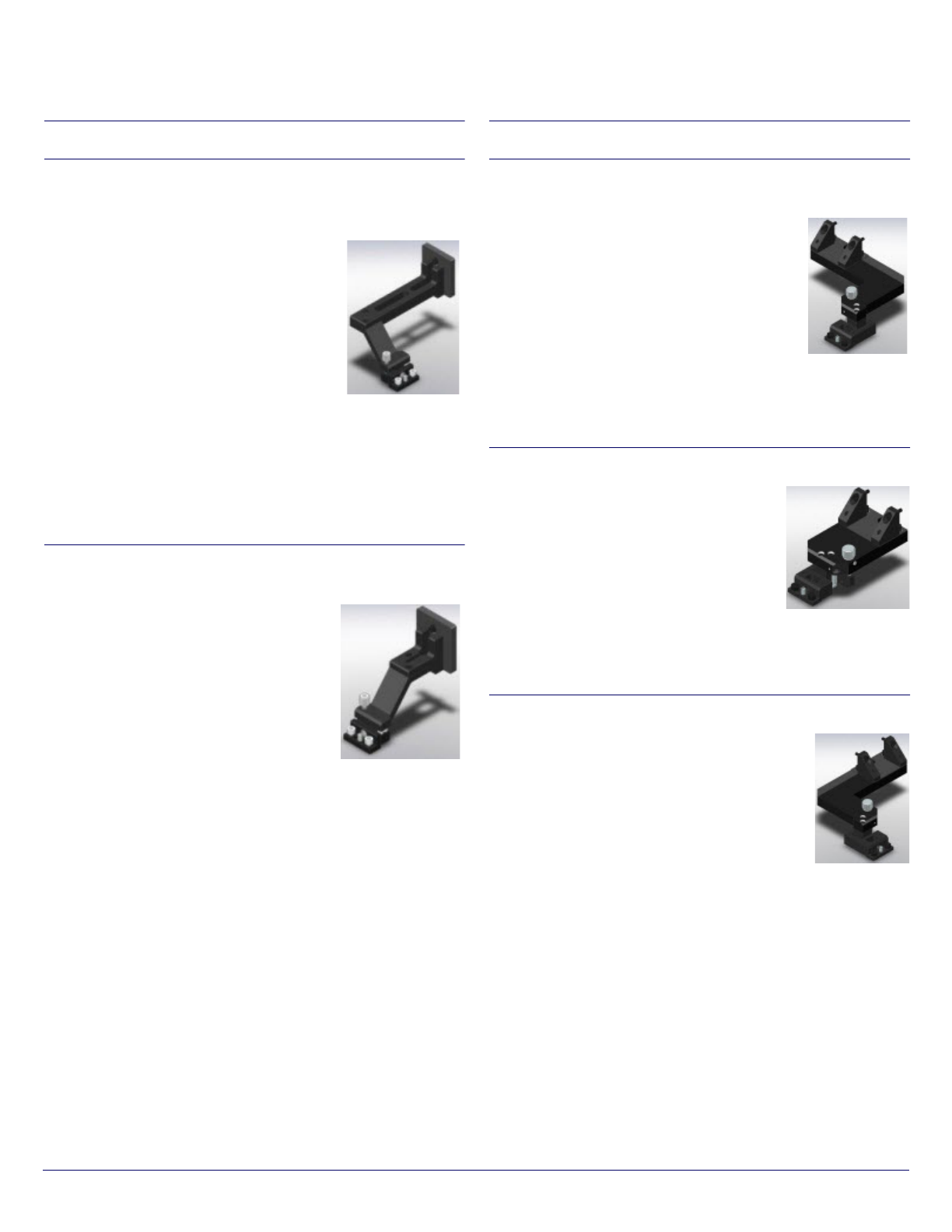

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 105
Revision 57, February, 2023 Probe Station Accessories
RF PROBE ARMS, RPP210-S
146041 — Probe Arm, RPP210-S, North-South, for
Vacuum/Magnetic Platen
Features
• For use with HF probes (e.g., |Z| Probe)
• Positions the probe at the front or rear side of
DUT
• Horizontal probe mounting platen can be
leveled
• For use with vacuum and magnetic platen
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
RPP210-S (and former PH110)
• Arms are not compatible with EPS200RF, EPS20 0MMW, or PM8
with RF or MMW platen. For these systems, the platen adapter
(PN 1 00651) is required, or you may consult a FormFactor
representative for custom arms.
146042 — Probe Arm, RPP210-S, East-West, for
Vacuum/Magnetic Plate
Features
• For use with HF probes (e.g., |Z| Probe)
• Positions the probe at the left or right side of
DUT
• Horizontal probe mounting platen can be
leveled
• For use with vacuum and magnetic platen
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
RPP210-S (and former PH110)
• Arms are not compatible with EPS200RF, EPS20 0MMW, or PM8
with RF or MMW platen. For these systems, the platen adapter
(PN 1 00651) is required, or you may consult a FormFactor
representative for custom arms.
RF PROBE ARMS, RPP305
100624 — Probe Arm, RPP305, East-West, Mirrored
Features
• For use with HF probes (e.g., |Z| Probe)
• For positioning the probe on the left or right side
of DU T
• Probe mounting platen ca n be leveled
• Mirror image of 100648 (only for 2 port
configuration in combination with 100648)
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
RPP305-S (and former PH25 0)
100647 — Probe Arm, RPP305, East
Features
• For use with HF probes (e.g., |Z| Probe)
• For positioning the probe on the right side of
DUT
• Probe mounting platen ca n be leveled (not
compatible with 4-port configuration)
Compatibility
• All PA/PM stations (except MicroAlign) + RPP305-S (and former
PH250)
100648 — Probe Arm, RPP305, East-West
Features
• For use with HF probes (e.g., |Z| Probe)
• For positioning the pr obe on the left or right side
of DU T
• Probe mounting platen ca n be leveled
• Mirror image of 100624 (for 4-port c onfiguration,
for 2-port configuration with 100624)
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
RPP305-S (and former PH25 0)

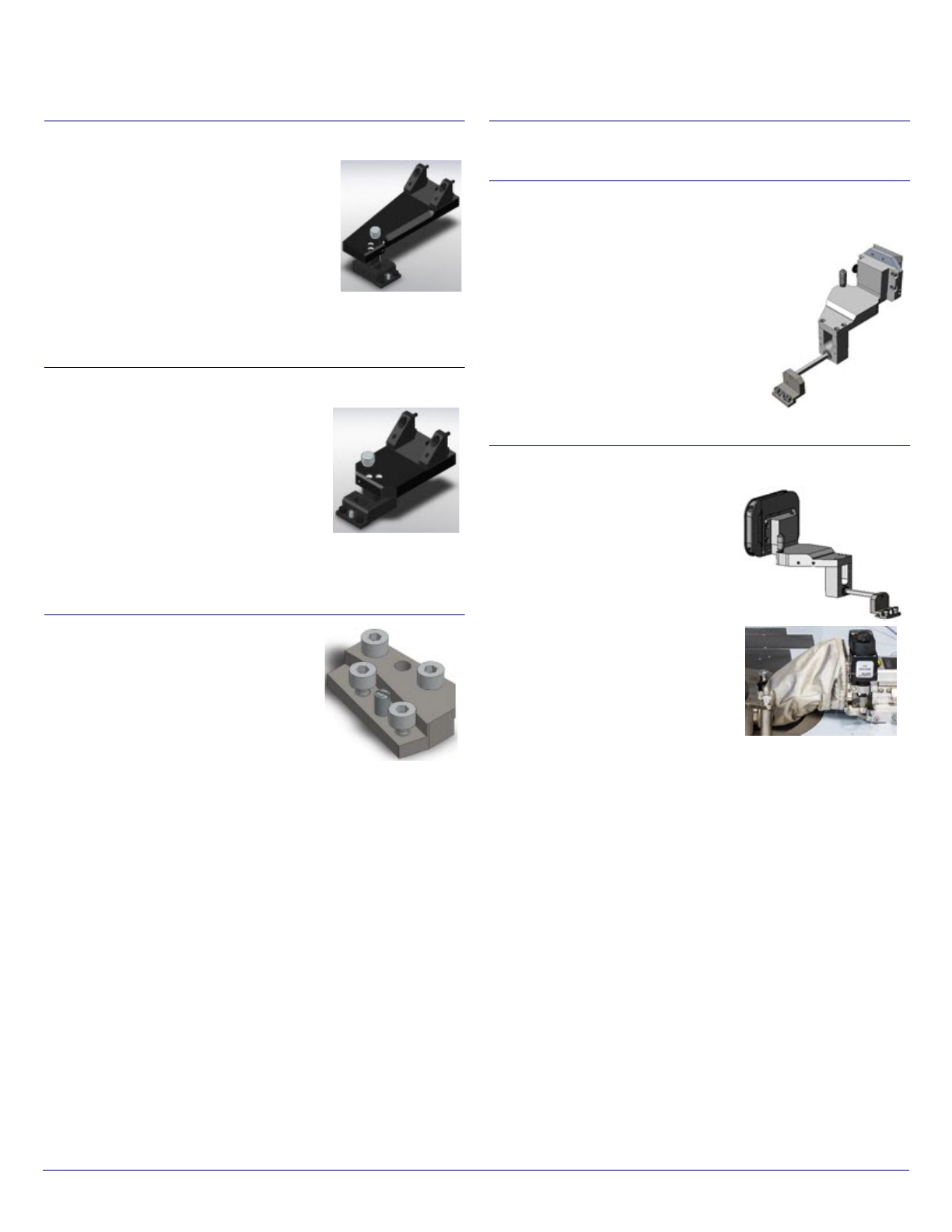

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 106
Revision 57, February, 2023 Probe Station Accessories
100649 — Probe Arm, RPP305, North-South
Features
• For use with HF probes (e.g., |Z| Probe)
• For positioning the probe at the front or rear
of DUT
• Probe mounting platen can be leveled (for 4-
port configuration)
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
RPP305-S (and former PH250)
118160 — Probe Arm, RPP305, West
Features
• For use with HF probes (e.g., |Z| Probe)
• For positioning the probe on the left side of
DUT
• Probe mounting platen can be leveled (not
compatible with 4-port configuration)
Compatibility
• All PA/PM stations (except MicroAlign) + RPP305-S (and former
PH250)
169-672– RF Probe Arm Mounting
Platen
Features
• Ena bles mounting of Lightwave probes
on RF arms
Compatibility
• Probe stations: MPS150, PM8, PA200,
PM300 +
• RF probe arms: RPP2xx (146041, 146042), RPP305 +
• Lightwave probes: LWP-CLV-SM, LWP-CLV-MM, LWP-LEN-SM,
LWP-LEN-MM
RFA PROBE ARMS, RPP404/RPP404-W/RPP504
(COAX UP TO 67 GHZ)
RFA-67-EW
Features
• East/West probe arm en ables mounting
of probe only (no frequency extender)
• Compatible with 8-sided MicroChamber
TopHat or open (non-TopHat)
configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
RFA-67-EW-TH
Features
• East/West probe arm en ables
mounting of probe only ( no
frequency extender)
• Compatible with 8-sided
MicroChamber TopHat (includes
boot/FlexShield) or open (non-
TopHat) configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
Boot/FlexShield
