PN 141-400 www.formfactor.com Tesla • 140
Revision 57, February, 2023 Probe Station Accessories
149-958 — Keysight HV Triax (Plug) to Std Triax Cable
(Plug),1.5 m
Features
• Provides the HV triax to standard triax c onnection for Keysight
B1505A
Specifications
• Maximum voltage: 500V DC
• Connector type: Keysight HV tri ax (plug), standard (plug)
• Cable le ngth: 1.5 m (5 ft)
Compatibility
• EPS15 0TESLA, T200, T300
149-976 — High Voltage Chuck Floating Plug
Product Features
• Provides the floating chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum voltage: 10,000V
Station Compatibility
• EPS15 0TESLA, T200, T300
Ordering Information
• Chuck Guard terminal connects to Chuck Shield terminal.
149-977 — High Voltage Chuck Shorting Plug
Product Features
• Provides the shorting chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum current (DC): 10A
• Maximum current (Pulse): 100A, (PW<=1ms, Duty ratio <=1%)
Station Compatibility
• EPS15 0TESLA, T200, T300
149-978 — Chuck Cable, HV Chuck to Agilent HV (Plug),
1.5 m
Product Features
• Provides dual triax con nection
between the high voltage Tesla
chuck and Agilent B1505A
HVSMU
• Low-leakage
• Low resistance, high voltage,
high-curent cable
Specifications
• Maximum voltage: 3000V DC
• Connector type: Cascade Microtech HV chuck, Agilent high
voltage (plug)
• Cable length: 1.5 m (4.92 ft)
Stat ion Compatibility
• EPS150TESLA, T200, T300
151-196 — SHV (Jack) to SHV (Jack) Adapter
Features
• Adapts SHV to SHV connection
Specifications
• Maximum voltage: 5000V
• Connector type: SHV (ja ck) to SHV
(jack)
Compatibility
• Tesla
151-207 — SHV (Plug) to SHV (Plug) Cable, 60 cm
Features
• Provides the high voltage SHV to SHV coaxial connection for
Keysight B1505A and Tesla probe station
Specifications
• Maximum voltage: 5000V DC
• Connector type: SHV (pl ug)
• Cable length: ~0.75m (30 in)
Compatibility
• Tesla
PN 141-400 www.formfactor.com Tesla • 141
Revision 57, February, 2023 Probe Station Accessories

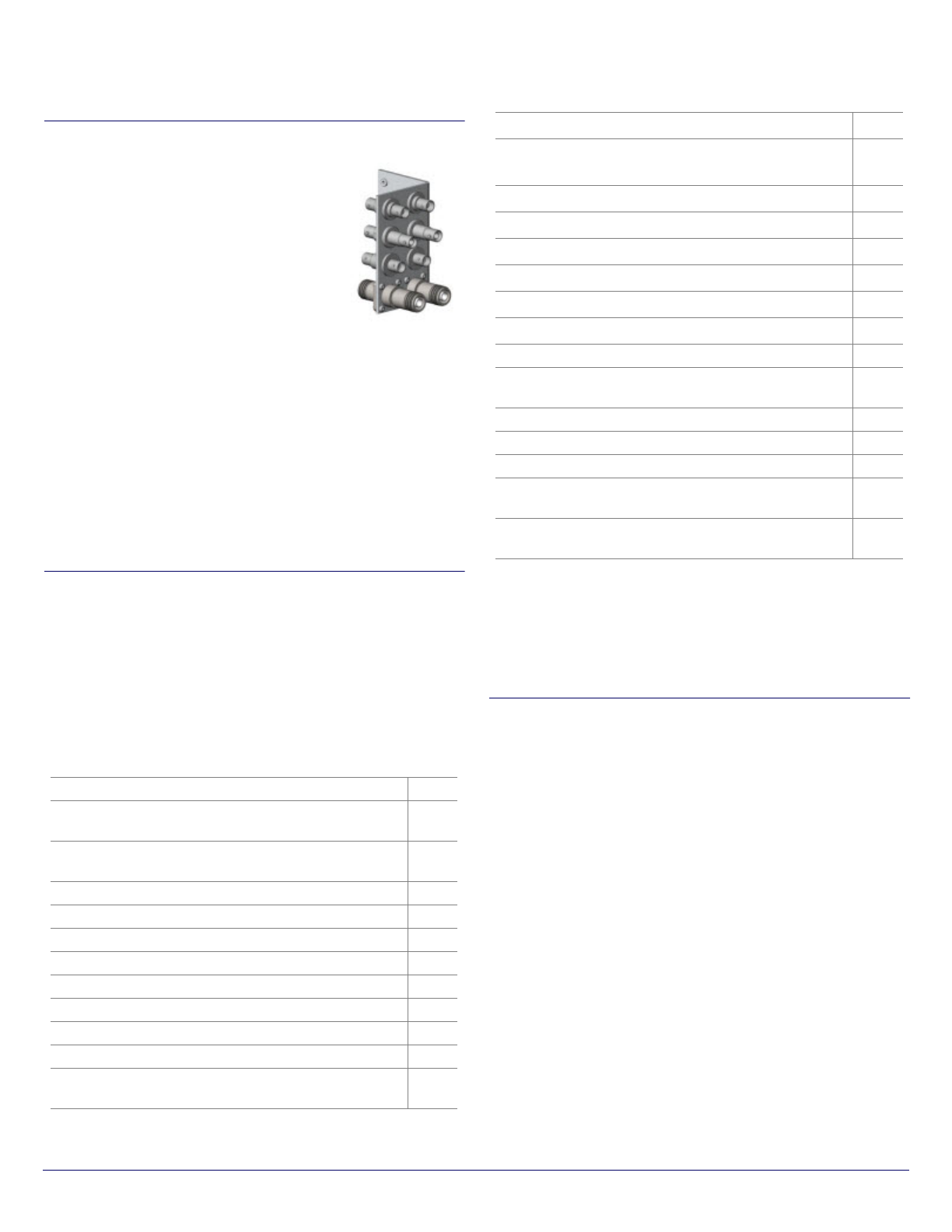

151-280 — HV Bulkhead Interconnect Panel
Features
• Two Key sight HV triax connectors
• Two BNC connectors
• Two SHV connectors
• Two standa rd triax connectors
• Includes grounding strap
Specifications
• Max Voltage:
– Keysight HV triax: 3000V
– BNC: 500V
– SHV: 5000V
– Standard triax: 500V
• Connector type:
– Keysight HV triax (jack)
– BNC (jack)
– SHV (jack)
– Standard triax (jack)
Compatibility
• Tesla
151-465 — Tesla Probes and Interconnect Accessory Kit
for Keysight B1505A (1st Generation)
Features
• Tesla high-power probing kit for use with Keysight B1505A
• The kit includes the HVP and HCP probes, positioners, necessary
brackets, cables and adapters to connect B1505A configured wi th
1 HVSMU, 1 HCSMU, 2 HPSMUs and 1 MFCMU for typical
measurement setup
Kit Contents
Compatibility
• T200
Ordering Information
• When ordering as standalone, a 149-401 cable kit is required
151-466 — Tesla Bridge Mounting Kit for Keysight
B1505A
Features
• Tesla high-power bridge moun ting kit for use with Keysight B1505A
• The kit includes necessary brackets, test head plates, interlock
cables and hardware to mount the B1505A accessories configured
with 1 HVSMU, 1 HCSMU, 2 HPSMUs and 1 MFCMU for typical
measurement setup
Compatibility
• Tesla
HVP-5C-E — HV, Coaxial Probe with SHV Connection
3
HVP-3T — HV, Triax Probe with Keysight HV Triax
Connection
2
HCP-BNC-3-350 — HC Pr obe Holder with BNC
Connection, 3-Finger, 350 µm (13.8 mils) Tip
2
DPP210-M positioner
5
RPP305 positioners
2
Interlock cable
1
Test head mounting brackets, small
4
Test head mounting brackets, large
1
Test head mounting plates
2
Keysight HV triax bulkhead assembly
2
Triax to BNC adapter
1
148-651 — HV Adapter Box, 2 SHV (Jack) to 2 BNC
(Jack)
1
148-657 — BNC Tee, 1 BNC (Plug) to 2 BNC (Jack)
4
148-724 — SHV to 4-BNC Adapter Box 1 SHV (Jack), 1
BNC (Plug), 3 BNC (Jack)
2
148-658 — Keysight HV Triax Cable, (Plug - Plug)
3
148-659 — BNC Cable, 61 cm, (Plug - Plug)
2
148-665 — HC BNC Cable, 61 cm (Plug - Plug)
2
148-668 — Mini Triax (Plug) to BNC (Plug) Cable, 60 cm
2
148-669 — Keysight HV Triax (Plug) – SHV (Plug), 60 cm
1
148-670 — HC BNC Cable,1.5 m (Plug - Plug)
2
149-947 — SHV (Plug) to BNC (Plug) Cable, 60 cm
2
149-958 — Keysight HV Triax (Plug) to Std Triax Cable
(Plu g),1.5 m
2
151-207 — SHV (Plug) to SHV (Plug) Cable, 60 cm
2
149-976 — High Voltage Chuck Floating Plug
1
149-977 — High Voltage Chuck Shorting Plug
1
780-01338 — Chuck Cable, HV Chuck to SHV (Jack),
1.0 m
1
780-01339 — Chuck Cable, HV Chuck Connector to BNC
(Plug), 1.0 m
1
PN 141-400 www.formfactor.com Tesla • 142
Revision 57, February, 2023 Probe Station Accessories
151-467 — Tesla Interconnect Kit for Keysight B1505A
(Excluding Probes and Positioners) (1st Generation)
Features
• Tesla high-power probeless kit fo r use with Keysig ht B1505A
• The kit includes necessary brackets, cables and adapters to
connect B1505A configured with 1 HVSMU, 1 HCSMU, 2 HPSMUs
and 1 MFCMU for typical measurement setup
Kit Contents
Compatibility
• T200
Ordering Information
• When ordering as standalone, a 149-401 cable kit is required
153-190 — BNC to Keysight HV Triax Adapter
Features
• Provides connection between
Keysight B1505A dual HCSMU 40A
solution and HCP-BNC probe
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 3A
• Maximum current (Pulse): 40A (PW£1ms, Duty ratio £1%)
• Connector type: Keysight HV triax (plug), BNC (jack)
Compatibility
• Tesla
780-00621 — Chuck Cable, HV Chuck to Keysight HV
(Plug) for 40A High Current Test, 1.5m
Features
• Provides dual triax
connection between the HV
Tesla chuck and Keysight
B1505A HVSMU
• Low-leakage
• Very low resistance, HV, HC
cable for dual HCSMU 40A
configuration
Specifications
• Maximum voltage: 3000V
• Maximum current (DC): 3A
• Maximum current (Pulse): 40A, (PW ≤ 1ms, Duty ratio ≤ 1%)
• Connector type: FormFactor HV chuck, Keysight HV (plug)
• Cable length: 1.5 m (5 ft)
Compatibility
• TESLA200, TESLA300
Interlock cable
1
Test head mounting brackets, small
4
Test head mounting brackets, large
1
Test head mounting plates
2
Keysight HV triax bulkhead assembly
2
Triax to BNC adapter
1
148-651 — HV Adapter Box, 2 SHV (Jack) to 2 BNC (Jack)
1
148-657 — BNC Tee, 1 BNC (Plug) to 2 BNC (Jack)
4
148-724 — SHV to 4-BNC Adapter Box 1 SHV (Jack), 1
BNC (Plug), 3 BNC (Jack)
2
148-658 — Keysight HV Triax Cable, (Plug - Plug)
3
148-659 — BNC Cable, 61 cm, (Plug - Plug)
2
148-665 — HC BNC Cable, 61 cm (Plug - Plug)
2
148-668 — Mini Triax (Plug) to BNC (Plug) Cable, 60 cm
2
148-669 — Keysight HV Triax (Plug) – SHV (Plug), 60 cm
1
148-670 — HC BNC Cable,1.5 m (Plug - Plug)
2
149-947 — SHV (Plug) to BNC (Plug) Cable, 60 cm
2
149-958 — Keysight HV Triax (Plug) to Std Triax Cable
(Plug),1.5 m
2
151-207 — SHV (Plug) to SHV (Plug) Cable, 6 0 cm
2
149-976 — High Voltage Chuck Floating Plug
1
149-977 — High Voltage Chuck Shorting Plug
1
780-01338 — Chuck Cable, HV Chuck to SHV (Jack), 1.0 m
1
780-01339 — Chuck Cable, HV Chuck Connector to BNC
(Plug), 1.0 m
1
