4OM-1751
1-491304-001

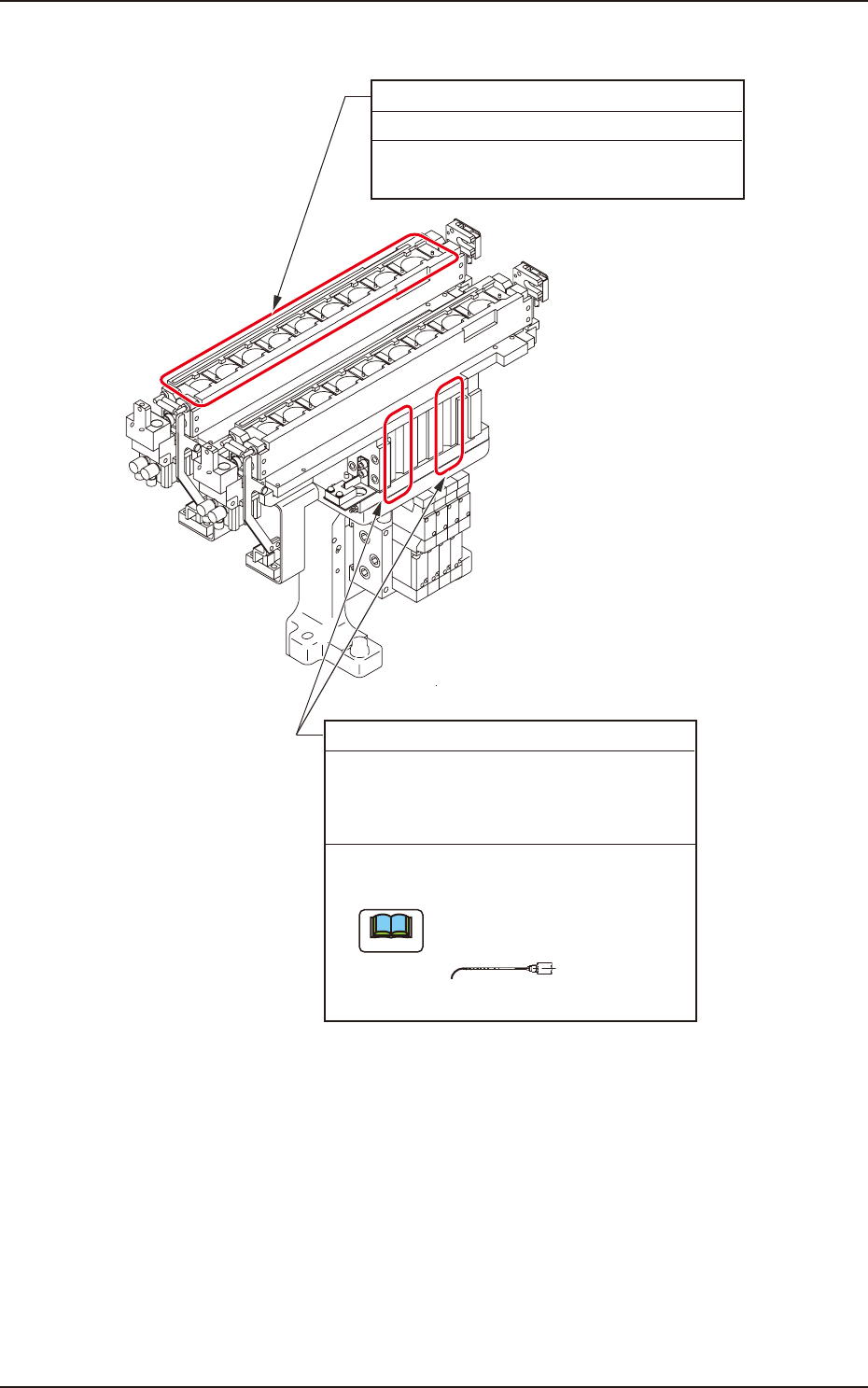

Nozzle Stocker for Multi-Functional Nozzle
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Section
Every 3 Months Cleaning and Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
F4A42
4.11 Nozzle Stocker Section
4OM-1751
1-501304-001

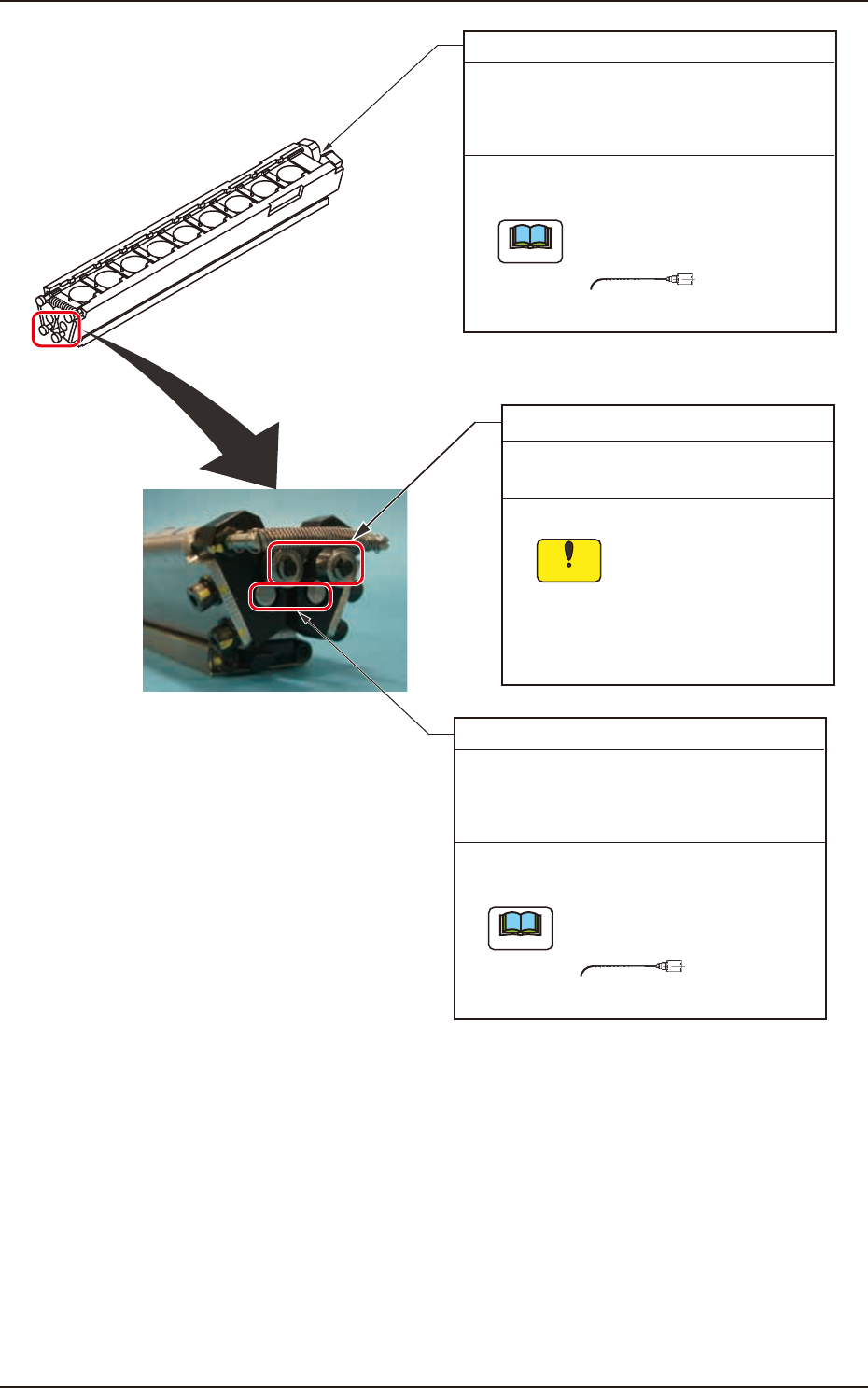

Cam Follower
Every Month Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Use No. 19 (brown) nozzle.
No.19
Note
Take ample care not to
leave the waste threads
after the old grease is
wiped off.
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
Notice
F4A43
4.11 Nozzle Stocker Section
4OM-1751
1-511304-001

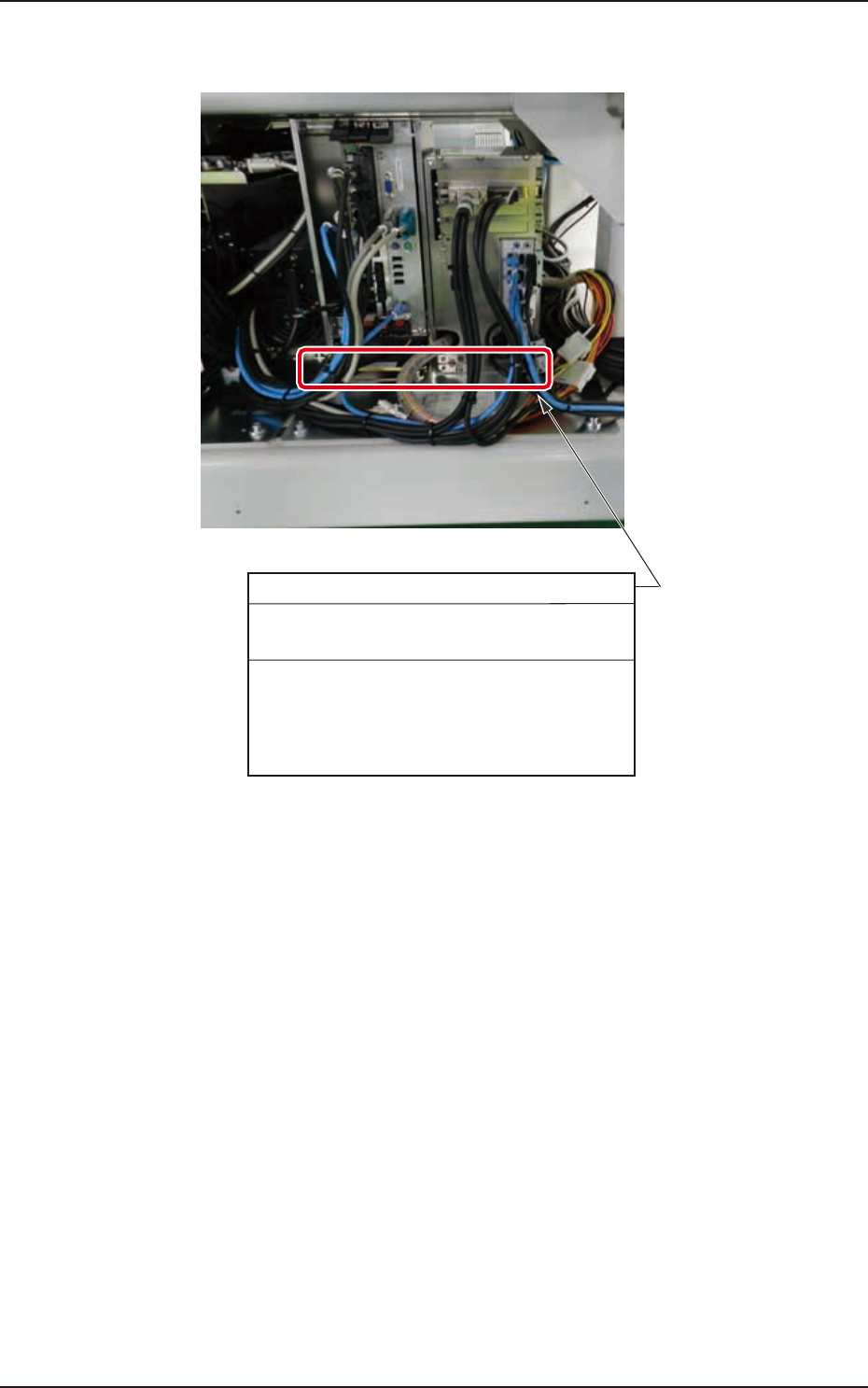

4.12 Control Box Section
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A44
4.12 Control Box Section
