4OM-1751
1-6
Specied lubrication tools
(1) Brush
Use a brush whose bristles do not come o if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.

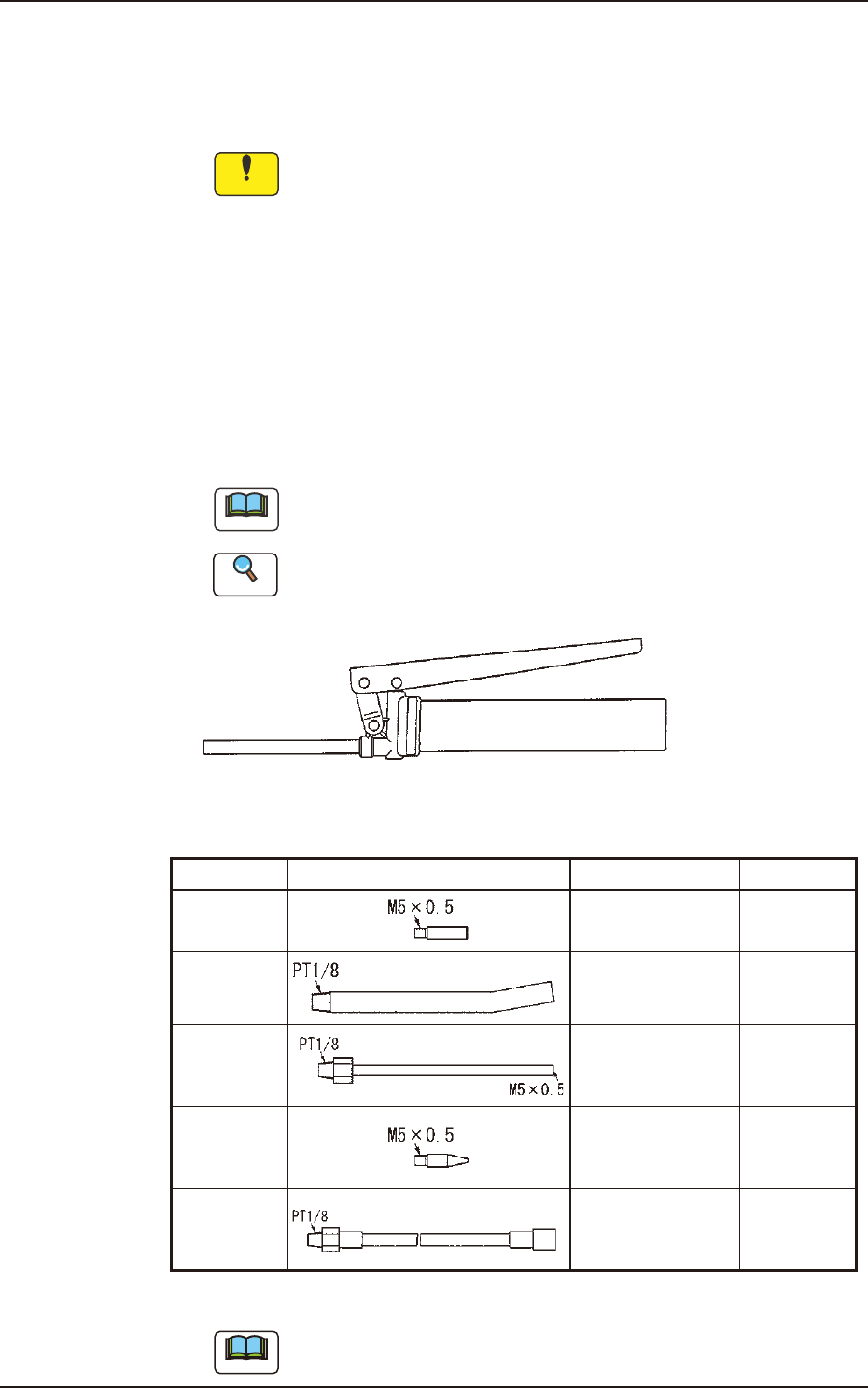

(3) Hand Grease Gun
Standard
: KH-120
Part No.
: KYB-M382J-00
228A022
Maker
: Yamada Corporation
Note
Use DAPHNE GREASE MP No. 1. and No. 3. appropriately for
each purpose.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
F4A4
•
Attachment for Hand Grease Gun KH-120
Standard Shape Part No. Remarks
Type N
KYB-M382A-00
216M0440
THK
Type H
KYB-M3829-00
216M0439
THK
Type U
KYB-M3828-00
216M0438
THK
Type P
KYB-M3813-00
0920H11Q
THK
SPK-3C
KYB-M382H-00
228A0021
Yamada
Corporation
T4A3
Note
It is not attached to the machine. Purchase it separately if necessary.
1304-001
1.2 Preparation for Maintenance
4OM-1751
1-7

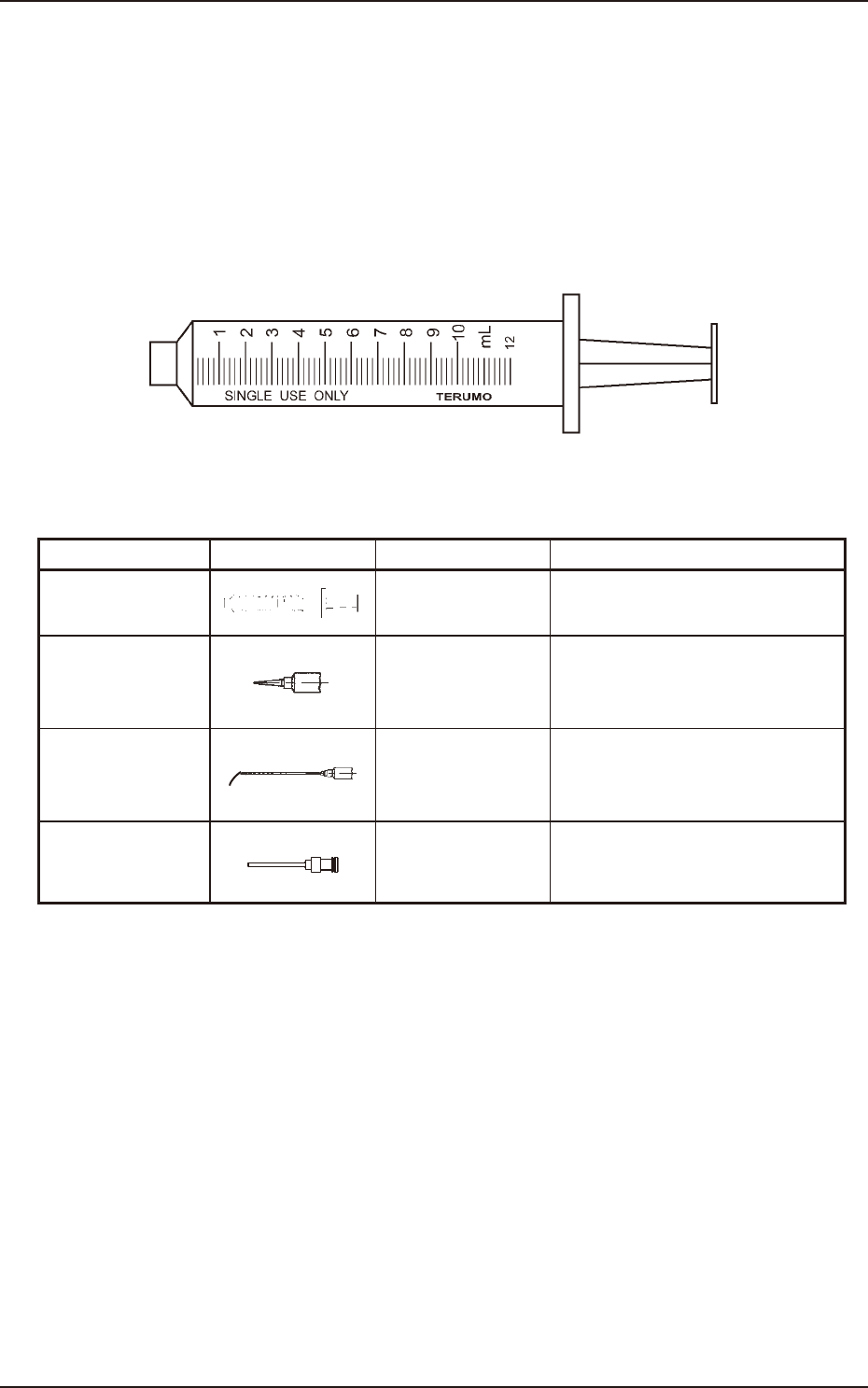

(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE GREASE MP No. 1
MOLYNOC GREASE AP1
Appearance
F4A5
Standard Shape Part No. Remarks
Syringe
KYB-M382K-00
228A0171
Maker : TERUMO
10ml SS-10-LZ
Nozzle No.18
(Color : Green)
---
216A0451
Maker : SAN-EI TECH
Inside Diameter :
f
0.84
Tapered Nozzle #5118TT-B
Nozzle No.19
(Color : Brown)
KYB-M380X-00
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
Nozzle No.49
KYB-M380E-00
0916D712
Length : 145 mm
T4A4
1304-001
1.2 Preparation for Maintenance
4OM-1751
1-8
1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
Reference
Refer to "2. Maintenance Check List" in "Chapter 1" for the maintenance based
on frequency of use.
Notice
The * -marks represent that the items require maintenance only for the
rst time.
Follow the ○-marked maintenance cycle for the subsequent use.
Device Name
Inspection Cleaning,
and Lubricating Spots
Work
Maintenance Cycle
Daily Weekly Monthly
Every
3 Months
Every
6 Months
Yearly
4.1 Air Source
Main Air Pressure
Inspection
Air Blowing Pressure
Inspection
Z Clamp Pressure
Inspection
Drain
Cleaning
Filter
Cleaning
4.2 Vacuum System
Vacuum Pressure
Inspection
Filter
Cleaning
4.3 Component
Recognition Camera
Section
Component Recognition
Camera
Cleaning
Component Storage Box
Cleaning
Hanenaito
Cleaning
Fiducial Mark
Cleaning
QFP Glass Plate Jig
Cleaning
Teaching Plate
Cleaning
4.4 Feeder Base
Driving Section
Worm Gear
Lubrication
4.5 Feeder Cart Section
Groove on Feeder Base
Cleaning
Upper Surface of Feeder
Base
Cleaning
Real Box
Cleaning
Scrap Box
Cleaning
Upper Surface of
Suppressor
Cleaning
T4A5
