4OM-1751 1-28 1304-001 4.4 Feeder Base Driving Section 4.4.1 Worm Gears (2 locations) Lubrication Worm Gears (2 locations ) Every 3 Months Lubrication (MOLYNOC GREASE AP1) Required T ime: 2 minutes Use No. 19 (brown) noz…
4OM-1751
1-271304-001

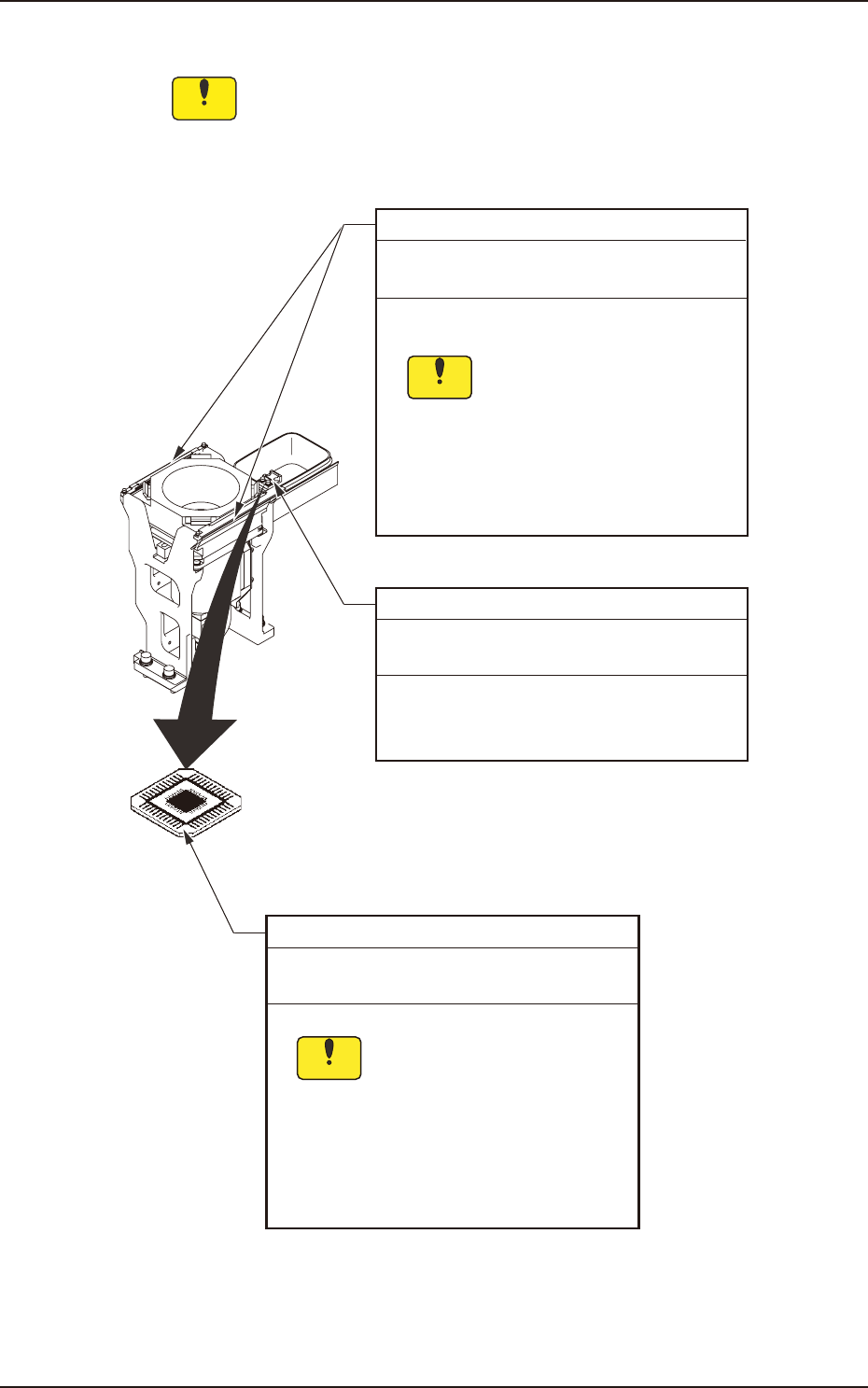

4.3.3 Fiducial Marks (4 locations) Cleaning
Notice
Use a suction force (of a vacuum cleaner) for the cleaning.
Do not blow air to any cleaning section with an air gun.
When the air is blown, dirt or dust inside the machine will disperse,
causing a malfunction in the recognition or machine operation.
QFP Glass Plate Jigs (2 pcs.)
Every Month Cleaning
Required Time: 1 minute
Wipe the jigs with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the QFP
glass plate jigs.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Sebum (fingerprint) or oil
should not adhere to the
fiducial marks.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Wipe the upper surfaces of the fiducial marks
with a dry lens cleaning cloth.
Teaching Plates (2 locations)
Every Month Cleaning
Required Time: 1 minute
Remove foreign substances and unrequired
components and wipe off dirt and dust with a
rag.
F4A19
4.3 Component Recognition Camera Section
4OM-1751
1-281304-001

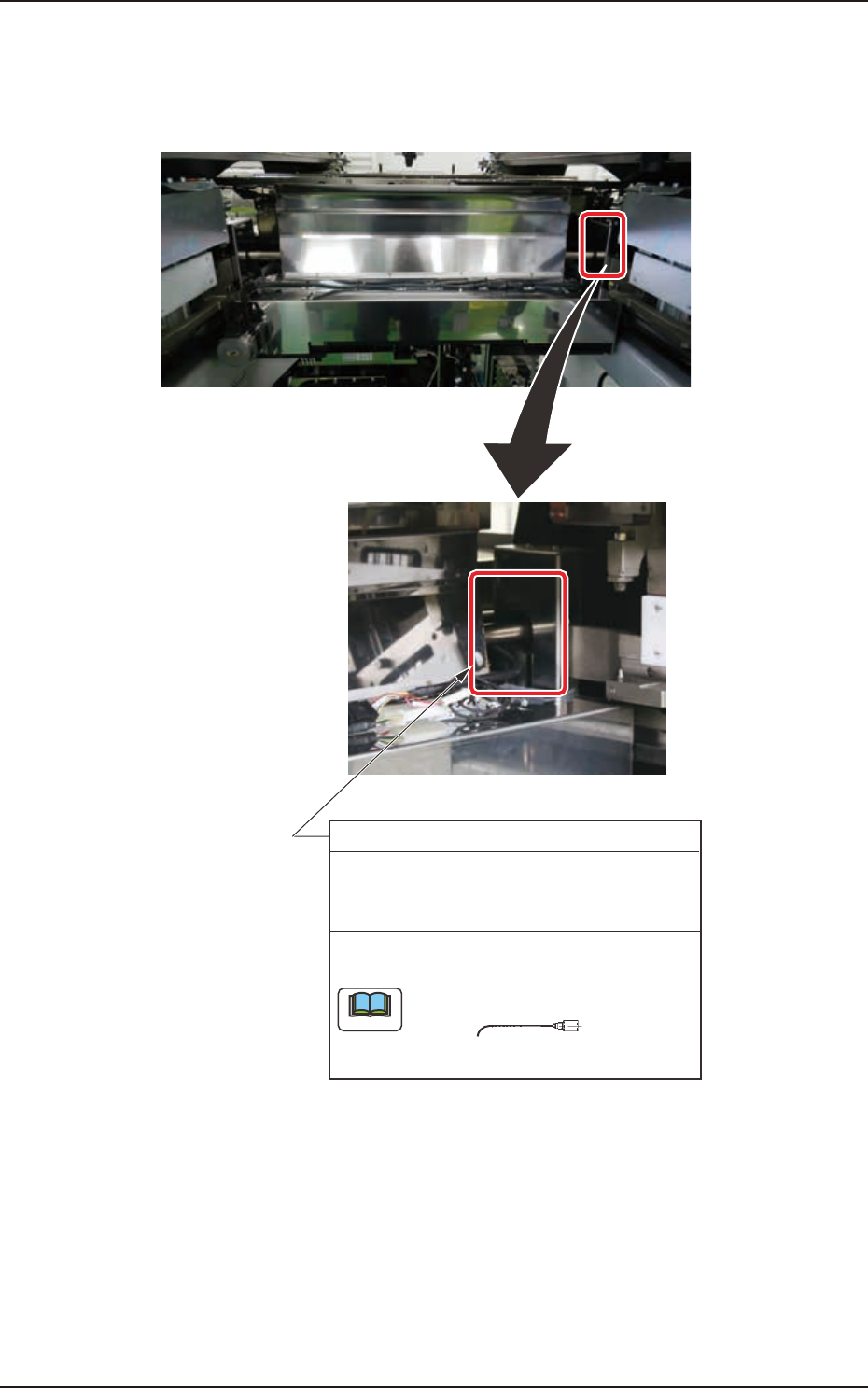

4.4 Feeder Base Driving Section
4.4.1 Worm Gears (2 locations) Lubrication
Worm Gears
(2 locations)
Every 3 Months Lubrication
(MOLYNOC GREASE AP1)
Required Time: 2 minutes
Use No. 19 (brown) nozzle.
Note
No. 19
Apply a small amount of new grease to the
worm gears with a syringe.
F4A20
4.4 Feeder Base Driving Section
4OM-1751
1-291304-001

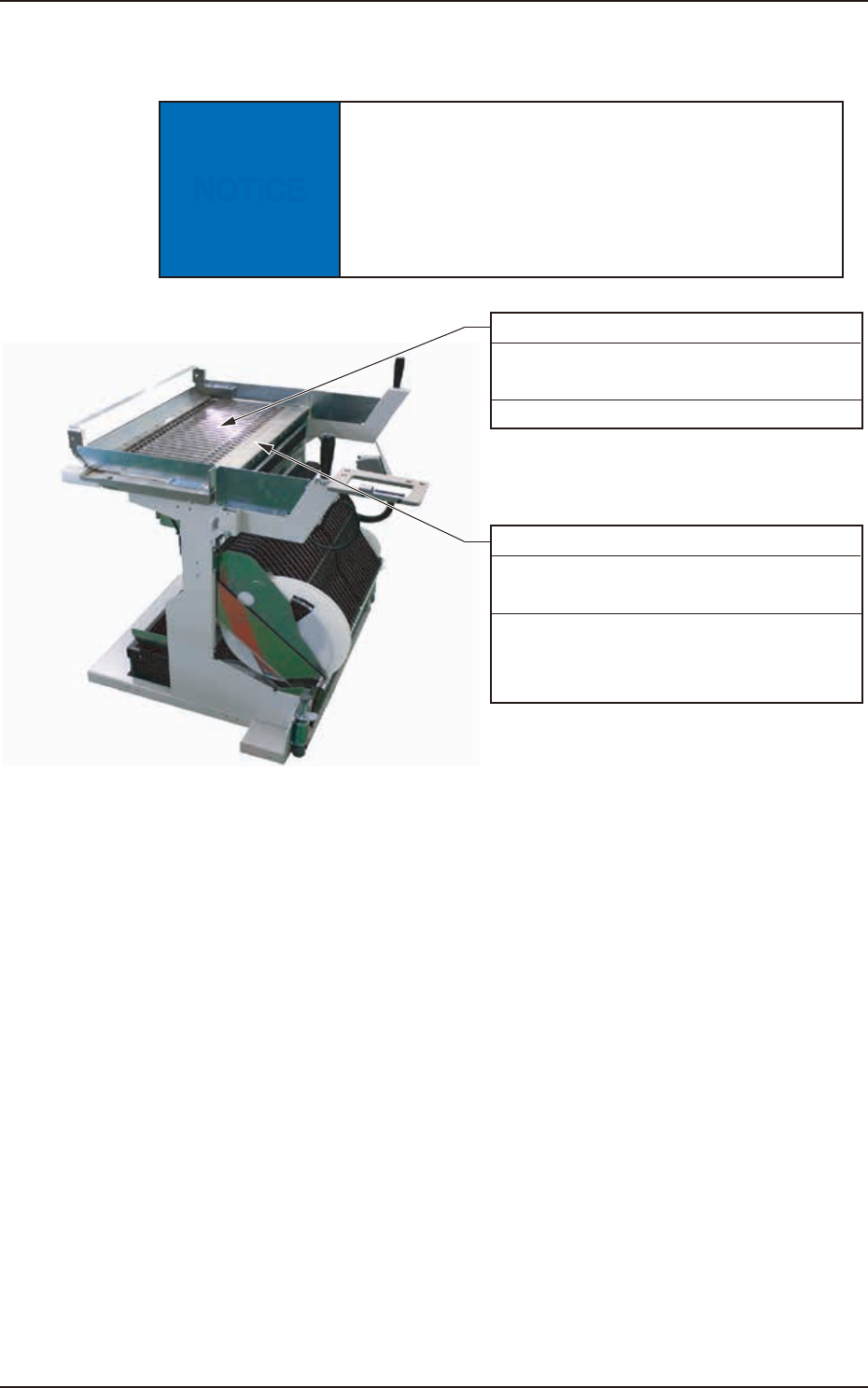

4.5 Feeder Cart Section
NOTICE
Do not blow air to cleaning sections with an air gun.
When the air is blown, dirt or dust inside the machine
will disperse,which may adhere to the sensors,
control boards and moving mechanisms causing
machine failures.
Groove on Feeder Base
Every Week Cleaning
Required Time:2minutes
Suck dirt and dust withavacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required Time:2minutes
Remove foreign substances and unrequired
components withavacuum cleaner and
wipe off dirt and dust witharag.
F4A21
4.5 Feeder Cart Section
