4OM-1751 1304-001 2-A Chapter 2 T roubleshooting In this chapter the outlines for each trouble shooting are described. 1. Descriptions for T rouble Shooting 2. Management Information
4OM-1751
1-73
Note

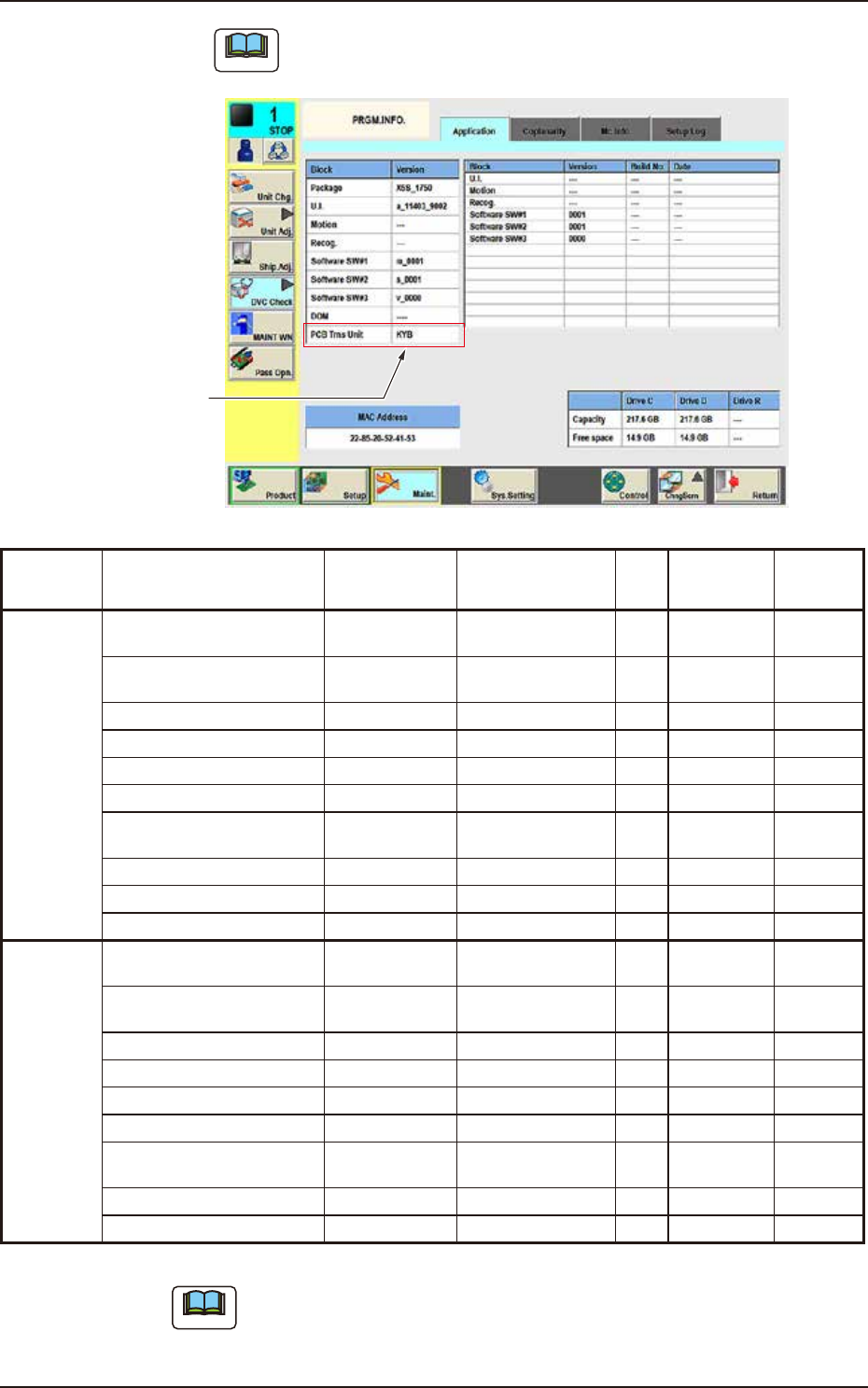

The transfer unit type (KYB type or KYX type) for each item can be
checked on the screen below.
Check here
F4A71
Block
Name
Product Name Part No. Part Name Q'ty
Recommended #
of years
Note(a)
Remarks
Transfer
Section
(KYB Type)
Positioning Unit Transfer
Pulley
KYB-M91CV-00 PULLEY_TIMING 4 5
Positioning Unit Transfer Flat
Pulley
KYB-M91B8-00 PULLEY FLAT 2 5
Positioning Unit Transfer Belt KYB-M919E-00 BELT_TIMING 2 3
Input Machine Transfer Belt KYB-M91B0-00 BELT_TIMING 2 3
Output Machine Transfer Belt KYB-M91B6-00 BELT_TIMING 2 3
Stopper Cylinder Assembly KYB-M916H-00 ASSY-STOPPER-L 2 4
Input/Output Machine Flat
Pulley
KYB-M91BM-00 PUULEY_FLAT 5 5
Input Machine Pulley KYB-M91BN-00 PULLEY_FLAT 1 5
Input/Output Machine Pulley KYB-M91AL-00 PULLEY_TIMING 8 5
UB95 High-Speed I/O Board KYB-M91AK-00 PCB-MOUNT 1 6
Transfer
Section
(KYX Type)
Positioning Unit Transfer
Pulley
KYB-M91CV-00 PULLEY_TIMING 4 5
Positioning Unit Transfer Flat
Pulley
KYB-M91B8-00 PULLEY FLAT 2 5
Positioning Unit Transfer Belt KYB-M919E-00 BELT_TIMING 2 3
Input Machine Transfer Belt KYB-M91B0-00 BELT_TIMING 2 3
Output Machine Transfer Belt KYB-M91B6-00 BELT_TIMING 2 3
Stopper Cylinder Assembly KYB-M916H-00 ASSY-STOPPER-L 2 4
Input/Output Machine Flat
Pulley
KYY-M914U-A0 PUULEY_FLAT 8 5
Input/Output Machine Pulley KYB-M91AL-00 PULLEY_TIMING 8 5
UB95 High-Speed I/O Board KYB-M91AK-00 PCB-MOUNT 1 6
T4A19
Note
(a) The recommended year of pieces is the value for reference only.
(b) Do not reuse any bolt removed during maintenance.
1903-005
7.2 List of Servicing Parts
4OM-1751
1304-001 2-A
Chapter 2
Troubleshooting
In this chapter the outlines for each trouble shooting are described.
1. Descriptions for Trouble Shooting
2. Management Information
