4OM-1751 1-65 5.7 Nozzle Filter Insertion Procedure (3) Insert the nozzle into the nozzle set position. At this time, face the nozzle  of wh…

4OM-1751

1-641903-005

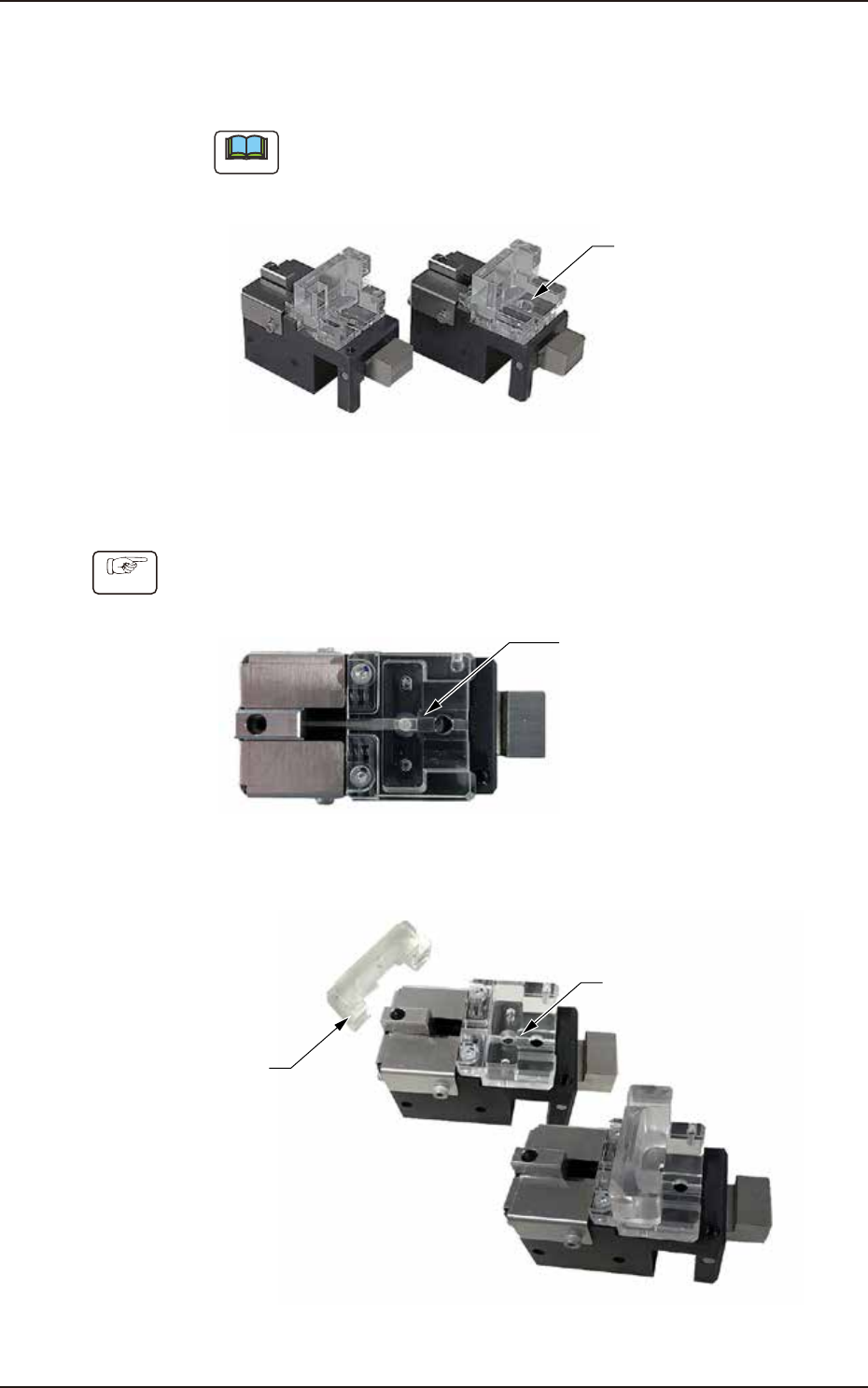

5.7 Nozzle Filter Insertion Procedure

• Filter replacement jig for High-Speed and Middle-Size/Odd-Shape

Note



picking up Middle-Size/Odd-Shape component. The same procedures

apply to both jigs.

For Nozzle picking up

Middle-Size/Odd-Shape

component

For High-Speed Nozzle

Nozzle set position

F4A83

Procedure

  

tool.

Nozzle filter set position

F4A58A

 

Acrylic block

(for holing filter)

Acrylic block set on nozzle filter set position

Nozzle filter set position

F4A59A

4OM-1751

1-65

5.7 Nozzle Filter Insertion Procedure

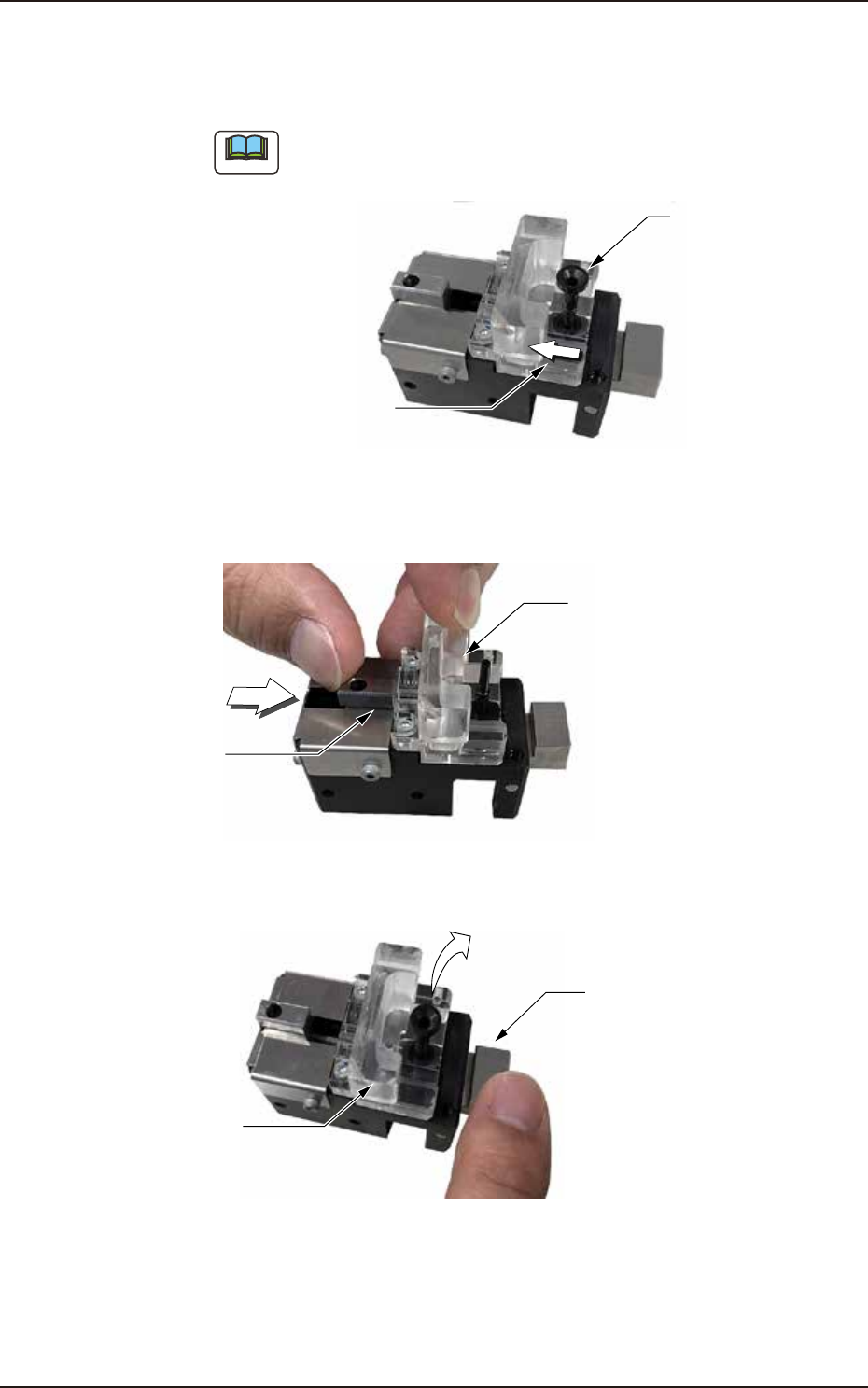

(3) Insert the nozzle into the nozzle set position. At this time, face the nozzle



of white arrow).

Note

Make sure to face the nozzle clearance in the correct direction.

Nozzle clearance for nozzle filter

must face in this direction.

Nozzle

F4A60A

(4) Press the acrylic block and move the slider in the direction of white arrow to



Slider

Acrylic block

F4A62A

(5) Press the lever to detach the nozzle. At this time, a click is heard.

Acrylic block

Press the lever.

F4A82

1903-005

4OM-1751

1-661903-005

5.7 Nozzle Filter Insertion Procedure

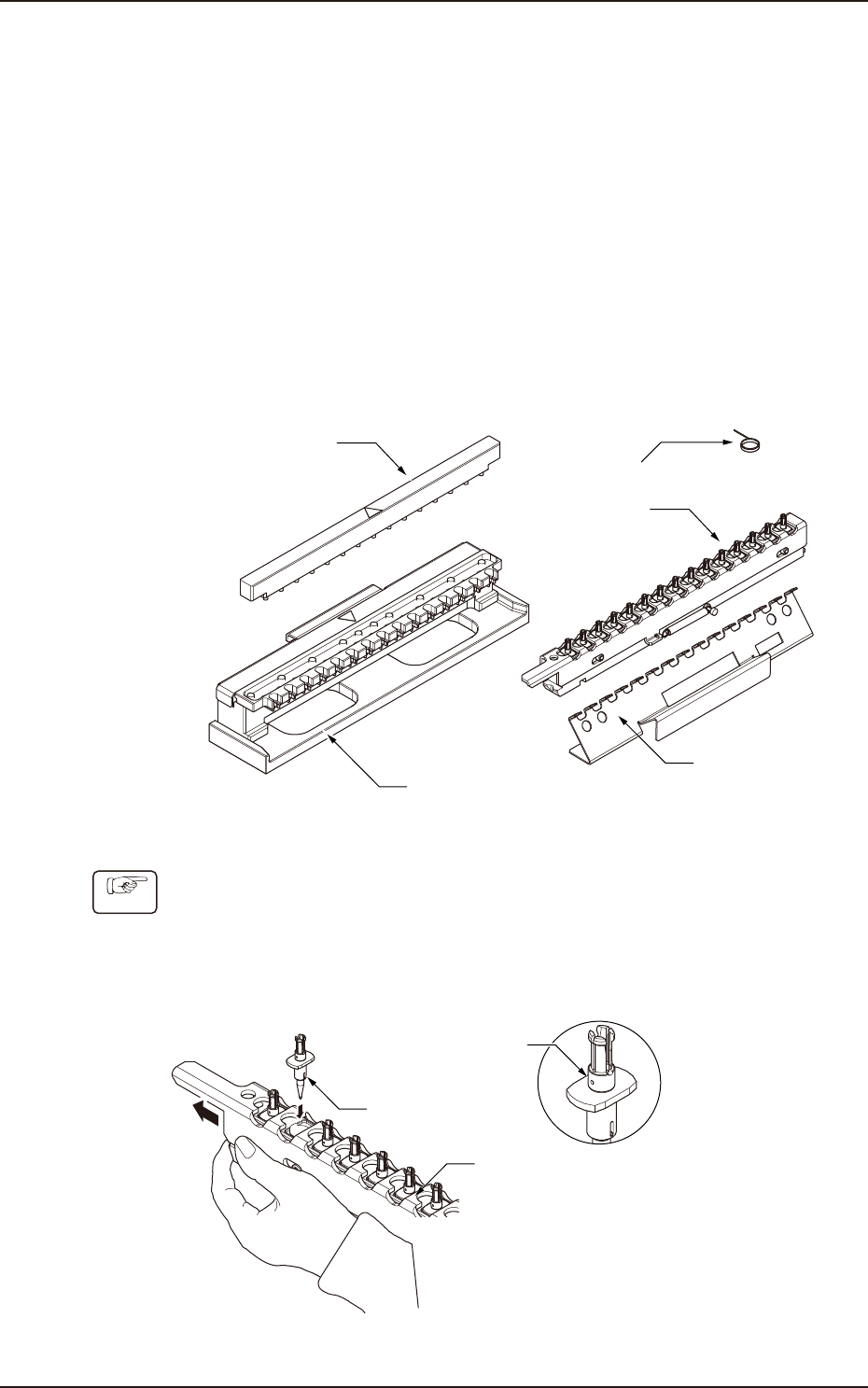

• Filter replacement jig for 15 high-speed nozzles

Prepare following items in advance.

• Replacement part of high-speed nozzle stocker for G5S/G5S2

(KYB-M3806-000)

• High-speed nozzles for G5S/G5S2

 

 

 

• Tweezers (KYB-M380Y-000)

Filter remove

support jig

Filter remove pin

Filter replacement jig

(Acrylic block)

Replacement part of

high-speed nozzle stocker

F4A71A

Procedure

(1) Slide the nozzle stocker shutter to keep it opening.

(2) Store high-speed nozzles in the high-speed nozzle stocker. Make sure that



Stocker shutter

High-speed nozzle

Hole for filter

remove pin

F4A72A
